DMVRe-4L Basic Operations

2.1 Principal Operating Modes

The DVMRe-4L has three principal modes of operation:
•
Live Viewing.
•
Playback.
•
Recording.
Each mode is discussed in detail later in this section.

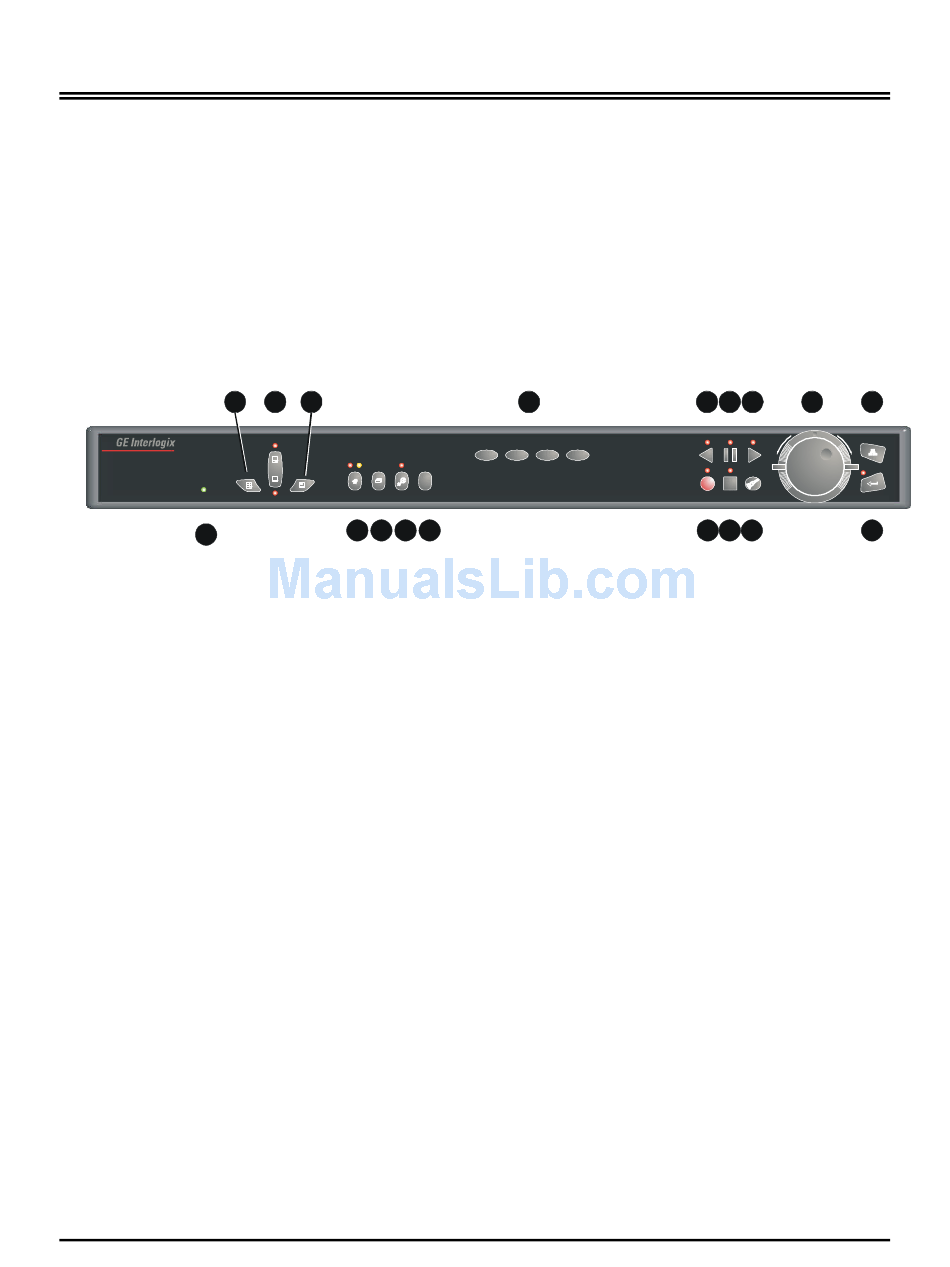

2.2 The Front Panel

1
e
Kalatel DVMRe-4L
10
1. Multiscreen Selection Button: 4 way.
2. Monitor Selection Button: Monitor A or Monitor B.
3. Multiscreen Selection Button: Picture-in-Picture.
4. Camera Selection Number buttons: Camera numbers 1 through 4.
5. Reverse Play Button: Playback in Reverse.
6. Freeze Button: Freezes camera images on-screen in Live mode. Pauses Playback.
7. Play Forward Button: Begins Playback.
8. Jog/Shuttle: Controls Playback speed and Menu selections.
9. Menu Button: Provides access to on-screen menus.
10. Power Indicator: Indicates power on/off condition.
11. Alarm button: Allows user to acknowledge and silence alarms.
12. Sequence Button: Sequences camera views.
13. Zoom Button: Provides a 2X digital zoom.
14. Function Button: Used to display a Help Screen on the Setup Active Zone menu.
15. Record Button: Used to Start and Stop Recording.
16. Stop Button: To stop Playback and return to Live mode.
17. Search Button: Access to stored video data.
18. Enter Button: Confirms selection in menus.
