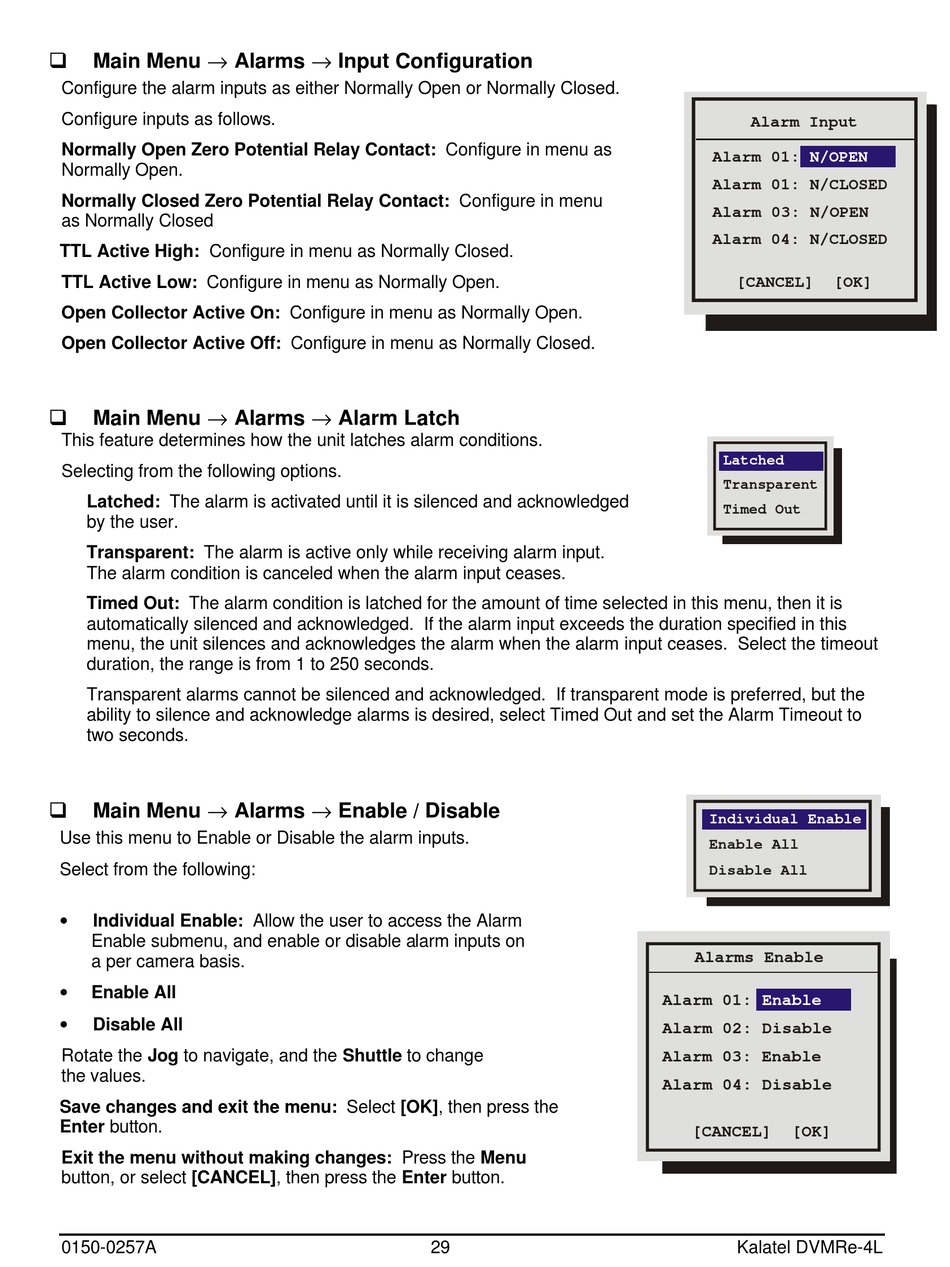

GE Kalatel DVMRe-4L User Manual page 29

Main Menu → Alarms → Input Configuration
q
Configure the alarm inputs as either Normally Open or Normally Closed.
Configure inputs as follows.
Normally Open Zero Potential Relay Contact: Configure in menu as
Normally Open.
Normally Closed Zero Potential Relay Contact: Configure in menu
as Normally Closed
TTL Active High: Configure in menu as Normally Closed.
TTL Active Low: Configure in menu as Normally Open.
Open Collector Active On: Configure in menu as Normally Open.
Open Collector Active Off: Configure in menu as Normally Closed.
Main Menu → Alarms → Alarm Latch
q
This feature determines how the unit latches alarm conditions.
Selecting from the following options.
Latched: The alarm is activated until it is silenced and acknowledged
by the user.
Transparent: The alarm is active only while receiving alarm input.
The alarm condition is canceled when the alarm input ceases.
Timed Out: The alarm condition is latched for the amount of time selected in this menu, then it is
automatically silenced and acknowledged. If the alarm input exceeds the duration specified in this
menu, the unit silences and acknowledges the alarm when the alarm input ceases. Select the timeout
duration, the range is from 1 to 250 seconds.
Transparent alarms cannot be silenced and acknowledged. If transparent mode is preferred, but the
ability to silence and acknowledge alarms is desired, select Timed Out and set the Alarm Timeout to
two seconds.
Main Menu → Alarms → Enable / Disable
q
Use this menu to Enable or Disable the alarm inputs.
Select from the following:
•
Individual Enable: Allow the user to access the Alarm
Enable submenu, and enable or disable alarm inputs on
a per camera basis.
•
Enable All
•
Disable All
Rotate the Jog to navigate, and the Shuttle to change
the values.
Save changes and exit the menu: Select [OK], then press the
Enter button.
Exit the menu without making changes: Press the Menu
button, or select [CANCEL], then press the Enter button.
0150-0257A 29
Alarm Input
Alarm 01: N/OPEN
Alarm 01: N/CLOSED
Alarm 03: N/OPEN
Alarm 04: N/CLOSED
[CANCEL] [OK]
Latched
Transparent
Timed Out
Individual Enable
Enable All
Disable All
Alarms Enable
Alarm 01: Enable
Alarm 02: Disable
Alarm 03: Enable
Alarm 04: Disable
[CANCEL] [OK]
Kalatel DVMRe-4L
