4 Installation
4.1 Panel Mounting
The M2000 series products can be ordered with Panel mount chassis. This option involves the use
of the panel adapters to be mounted on each side of the chassis enclosure. See Figure 6 for a
Panel mount diagram.

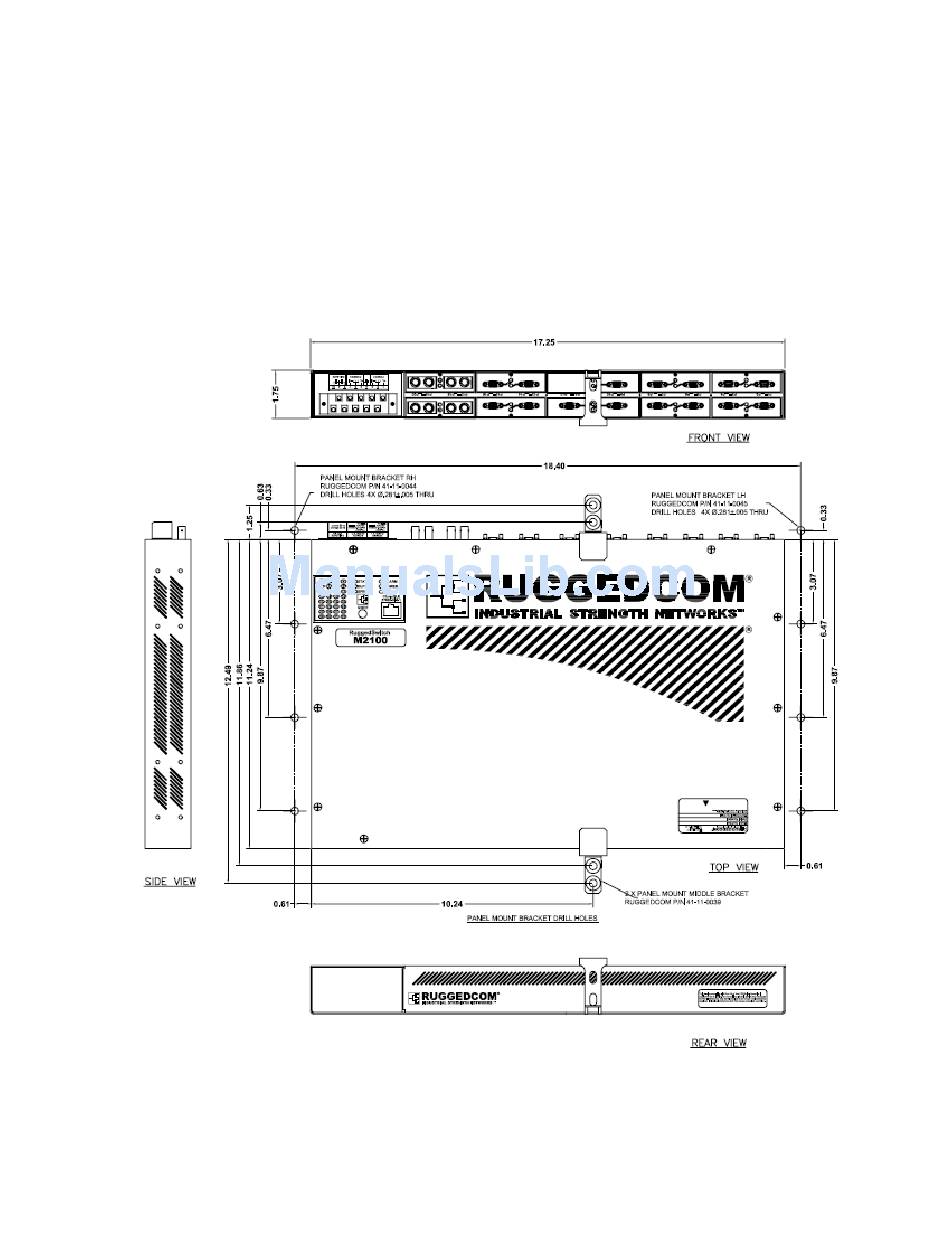

Figure 6: M2100 Panel Mounting Diagram
11
©
2008 RuggedCom Inc. All rights reserved
Rev106
