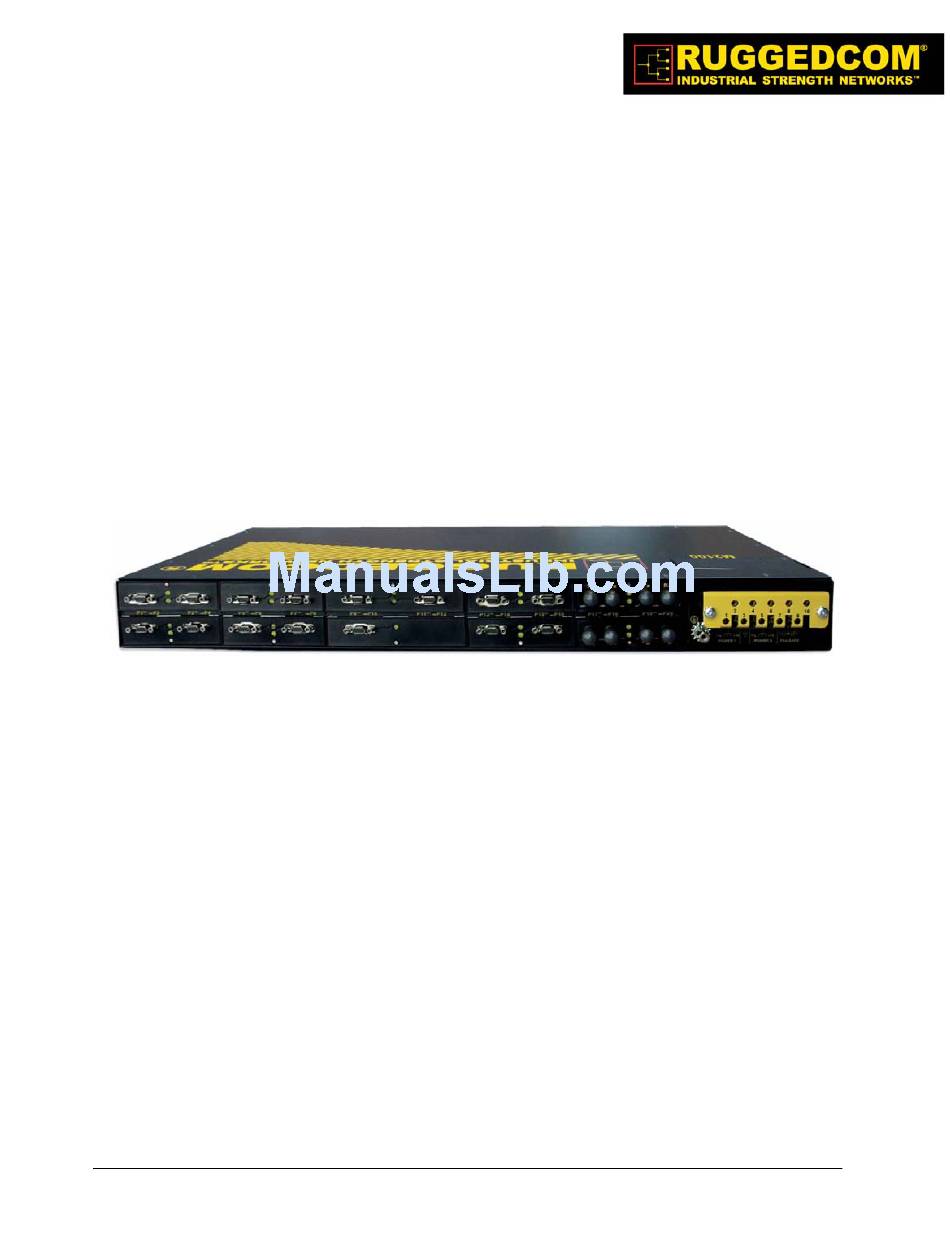

Page 1: Installation Guide
RuggedSwitch™ M2100 MIL-STD 19-Port Modular Managed Ethernet Switch with Gigabit Uplink Ports Installation Guide www.RuggedCom.com RuggedCom Inc. I 30 Whitmore Road, Woodbridge, Ontario, Canada L4L 7Z4 Tel: 905-856-5288 I Fax: 905-856-1995 I Toll Free: 1-888-264-0006... - Page 2 This product contains no user serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by RuggedCom Inc. could void the user’s authority to operate the equipment.
-
Page 3: Table Of Contents
Fiber Optical Specifications................26 5.5.1 Dual-Port Ethernet (10/100Mbps) Optical Specifications......26 5.5.2 Gigabit Ethernet (1000Mbps) Modules ............ 27 Type Test Specifications................... 28 Operating Environment..................28 Mechanical Specifications ................29 Agency Approvals ........................30 Warranty..........................30 © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 4: Table Of Figures
Table 1: LED Display – Device status LED behavior definition ............9 Table 2: LED Display Description....................10 Table 3: M2100 Power terminal block connection description............13 Table 4: RS232 over RJ45 console cable pin-out ................19 Table 5: Cabling categories and 1000BaseTX compliance defined..........23 © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 5: Product Overview
• Zero-Packet-Loss™ Technology • -40 to +85°C operating temperature (no fans) • Conformal coated printed circuit boards • 18 AWG galvanized steel enclosure MIL-STD Ratings • MIL-STD 901D – Shock (Hard Mounted) © 2008 RuggedCom Inc. All rights reserved Rev106... - Page 6 • Port configuration, status, statistics, mirroring, security • Loss of link management on fiber ports • Web-based, Telnet, CLI management interfaces • SNMP v2 and RMON • Rich set of diagnostics with logging and alarms © 2008 RuggedCom Inc. All rights reserved Rev106...
-
Page 7: Ethernet Panel Description
LED will be solid for ports with link, and will blink for activity. The diagram in Figure 1 highlights the port and the associated link/activity LED. Figure 1: Ethernet panel LED description © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 8: Fiber Optical Transceiver Orientation And Connection
(i.e. RX and TX will be reversed). Figure 3: 100FX ST connector Figure 2: 10FL ST connector Figure 4: 100FX / 1000SX / 1000LX LC connector © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 9: Display Panel Description
PS1 / PS2 Power supply failure No power supply installed Alarm exist – login to console to determine alarm code Alarm No alarms exist Table 1: LED Display – Device status LED behavior definition © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 10: Table 2: Led Display Description
Green (Blinking) Activity No link Green (Solid) Full-Duplex operation Duplex Orange (Solid) Half-Duplex operation No link Green (Blinking) 1000Mb/s Green (Solid) 100Mb/s Speed Orange (Solid) 10Mb/s No link Table 2: LED Display Description © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 11: Installation
The M2000 series products can be ordered with Panel mount chassis. This option involves the use of the panel adapters to be mounted on each side of the chassis enclosure. See Figure 6 for a Panel mount diagram. Figure 6: M2100 Panel Mounting Diagram © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 12: Power Supply Wiring And Grounding
Block has Philips screws with a compression plate allowing either bare wire connections or crimped terminal lugs. RuggedCom recommend the use of #6 size ring lugs to ensure secure, reliable connections under severe shock or vibration. The terminal block has a safety cover which must be removed via two Phillips screws before connecting any wires. -
Page 13: Table 3: M2100 Power Terminal Block Connection Description
AC. Relay NO Contact Normally open, failsafe relay contact. Relay Common Failsafe relay common contact. Relay NC Contact Normally closed, failsafe relay contact. Table 3: M2100 Power terminal block connection description © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 14: Ac Power Supply Wiring Examples
2. Equipment must be installed according to the applicable country wiring codes. 3. When equipped with two HI voltage power supplies, independent AC sources can be used to power the product for greater redundancy. © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 15: Dc Power Supply Wiring Examples
2. A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies. 3. For dual DC power supplies, Separate circuit breakers must be installed and separately identified. 4. Equipment must be installed according to the applicable country wiring codes. © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 16: Dual Power Supplies - Dc And Ac Inputs
3. A circuit breaker is not required for 48 or 24VDC rated power supplies. 4. Separate circuit breakers must be installed and separately identified. 5. Equipment must be installed according to the applicable country wiring codes. © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 17: Dielectric Strength (Hipot) Testing
HIPOT testing. Figure 11 shows the proper HIPOT test connections and should be followed to avoid damage to the device. Figure 11: Dielectric Strength (HIPOT) Testing © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 18: Failsafe Alarm Relay Wiring And Specifications
The proper relay connections are shown in Figure 12. One common application for this output is to signal an alarm if a power failure or removal of control power occurs. Figure 12: Failsafe Alarm Relay Wiring © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 19: Console Port Wiring
Figure 13: Console port location on display board Figure 14: M2000 Console cable For user reference, the console cable pin-out is show in Table 5. RuggedCom RS232 over RJ45 pin-out specification Signal Name (PC is DTE) DB9- Female RJ45 Male DCD –... -
Page 20: Twisted-Pair Data Ports
1. For 10/100Base-TX ports: pin2 and pin7 are internally connected, pin4 and pin8 are internally connected on PCB board. 2. For 10/100/1000Base-TX ports: pin3 and pin8 are internally connected on PCB board. © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 21: Rj45 Twisted-Pair Data Ports
No Connection No Connection No Connection Figure 16: RJ45 port pins configuration Note : pin4 and pin5 are internally connected on PCB board, pin7 and pin8 are internally connected board on PCB board. © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 22: Protection On Twisted-Pair Data Ports
4.6.3 Protection on Twisted-Pair Data Ports RuggedCom does not recommend the use of CAT-5 cabling of any length for critical real-time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance. -
Page 23: Gigabit Ethernet 1000Base-Tx Cabling Recommendations
Power and data cables should intersect at 90° angles when necessary to reduce inductive coupling. • Shielded/screened cabling can optionally be used. The cable shield should be grounded at one single point to avoid the generation of ground loops. © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 24: Technical Specifications
4. For continued protection against risk of fire, replace only with same type and rating of fuse. 5.2 Failsafe Relay Specifications Parameter Value (Resistive Load) Max Switching Voltage 240VAC, 125VDC Rated Switching Current 2A @ 240VAC 0.15A @ 125VDC, 2A @ 30VDC Max Switching Capacity 150W, 500VA © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 25: Networking Standards Supported
Parameter Specification Notes Speed 10/100 Mbps Auto-negotiating Duplex FDX / HDX Auto-negotiating Cable-Type > Category 5 Shielded/Unshielded Wiring Standard TIA/EIA T568A/B Auto-Crossover, Auto-polarity Max Distance 100m Connector RJ45 Isolation 1.5kV RMS 1-minute © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 26: Fiber Optical Specifications
The dual-port fast Ethernet optical specifications for M2100 ports 1-8 and 13-20 are shown in the following table organized by module order code. Module order codes are contained within each product’s factory data when assembled and configured at the factory. Consult the RuggedCom ROS to determine the optical assemblies installed in a particular product. -
Page 27: Gigabit Ethernet (1000Mbps) Modules
5.5.2 Gigabit Ethernet (1000Mbps) Modules For maximum flexibility RuggedCom Inc. offers a number of different transceiver choices for Gigabit fiber optical communications. The following table details fiber optic specifications based on the 2-port modules or pluggable transceivers selected at time of ordering. -
Page 28: Type Test Specifications
Ambient Temperature as Ambient Operating measured from a 30cm -40 to 85°C Temperature radius surrounding the center of the enclosure. Ambient Relative Humidity 5% to 95% Non-condensing Ambient Storage -40 to 85°C Temperature © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 29: Mechanical Specifications
19.00x 14.5 x 2.02 inches (Length x Width x Height) (482.6)x (368.3) x (51.3) mm with mounting brackets installed Weight 11.2 lb (5 Kg) with mounting brackets installed Enclosure 18awg galvanized steel Figure 17: Mechanical Dimensions © 2008 RuggedCom Inc. All rights reserved Rev106... -
Page 30: Agency Approvals
IEC/EN EN60825-1:1994 + A11:1996 + A2:2001 Passed 7 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com/ or contact your customer service representative. Should this product require warranty or service contact the factory at: RuggedCom Inc.
