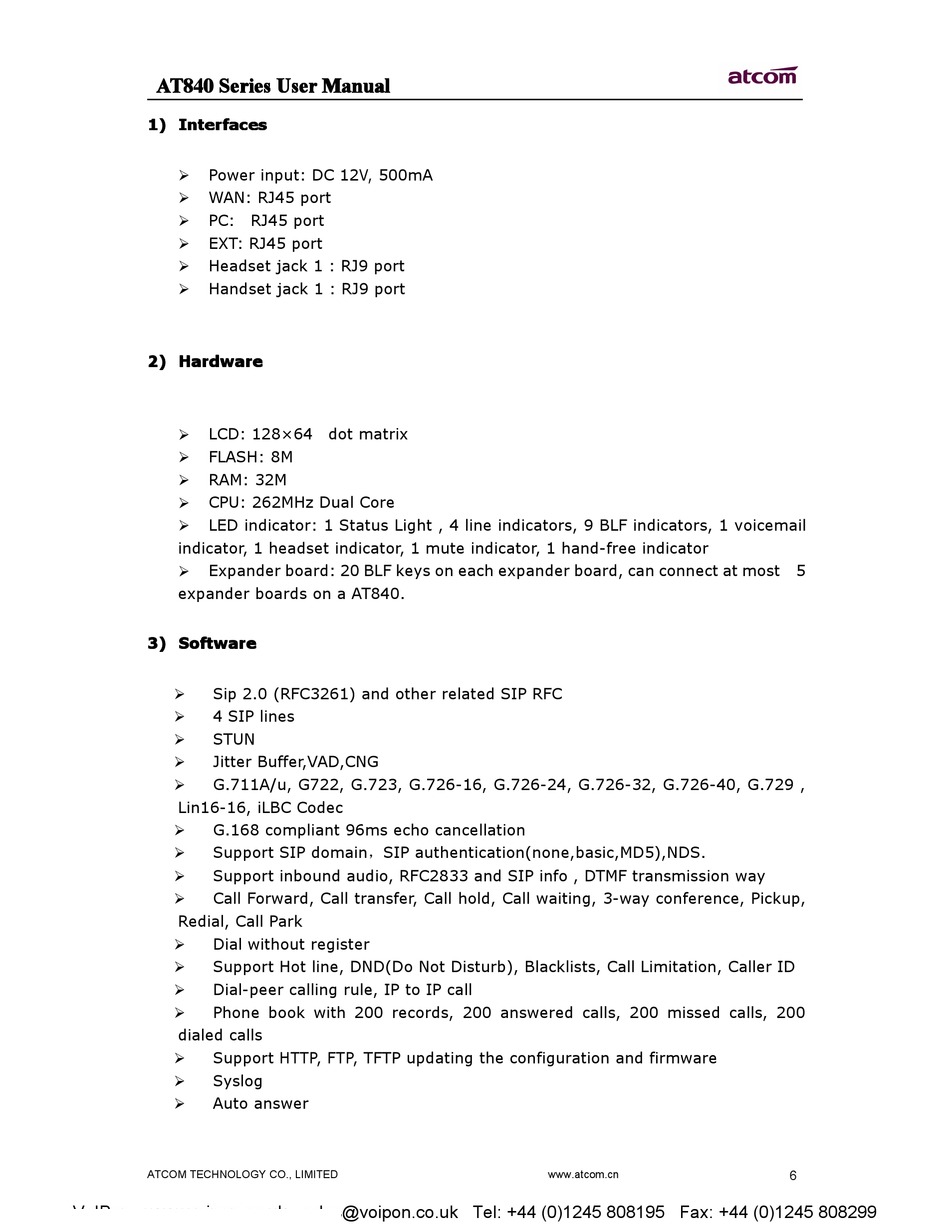

AT8
AT8
AT8
AT84 4 4 4 0 0 0 0 Series
Series
Series
Series User
1)
1)
Interfaces
Interfaces
1)
1) Interfaces
Interfaces
�
Power input: DC 12V, 500mA
�
WAN: RJ45 port
�
PC: RJ45 port
�
EXT: RJ45 port
�
Headset jack 1 : RJ9 port
�
Handset jack 1 : RJ9 port
2)
2)
2)
2) Hardware
Hardware
Hardware
Hardware
�
LCD: 128×64 dot matrix
�
FLASH: 8M
�
RAM: 32M
�
CPU: 262MHz Dual Core
�
LED indicator: 1 Status Light , 4 line indicators, 9 BLF indicators, 1 voicemail
indicator, 1 headset indicator, 1 mute indicator, 1 hand-free indicator
�
Expander board: 20 BLF keys on each expander board, can connect at most 5
expander boards on a AT840.
3)
3)
3) Software
3)
Software
Software
Software
�
Sip 2.0 (RFC3261) and other related SIP RFC
�
4 SIP lines
�
STUN
�
Jitter Buffer,VAD,CNG
�
G.711A/u, G722, G.723, G.726-16, G.726-24, G.726-32, G.726-40, G.729 ,
Lin16-16, iLBC Codec
�
G.168 compliant 96ms echo cancellation
�
Support SIP domain,SIP authentication(none,basic,MD5),NDS.
�
Support inbound audio, RFC2833 and SIP info , DTMF transmission way
�
Call Forward, Call transfer, Call hold, Call waiting, 3-way conference, Pickup,
Redial, Call Park
�
Dial without register
�
Support Hot line, DND(Do Not Disturb), Blacklists, Call Limitation, Caller ID
�
Dial-peer calling rule, IP to IP call
�
Phone book with 200 records, 200 answered calls, 200 missed calls, 200
dialed calls
�
Support HTTP, FTP, TFTP updating the configuration and firmware
�
Syslog
�
Auto answer
ATCOM TECHNOLOGY CO., LIMITED
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
User
User Manual
User
Manual
Manual
Manual
www.atcom.cn
6
