Using the Control Panel
The Input screen shows input voltage (phase-to-phase), output current (each phase), and
frequency of the incoming utility source, as well as the kVA, kW, and power factor
measurements for the selected unit.
V1
***
I1
***
The Bypass screen shows the bypass input voltage (phase-to-neutral), output current (each
phase), and frequency of the incoming utility source, as well as the kVA, kW, and power
factor measurements for the selected unit.
V1
***
I1
***
9-12
INPUT UNIT X
V2 V3
*** ***
I2 I3
*** ***
SYSTEM

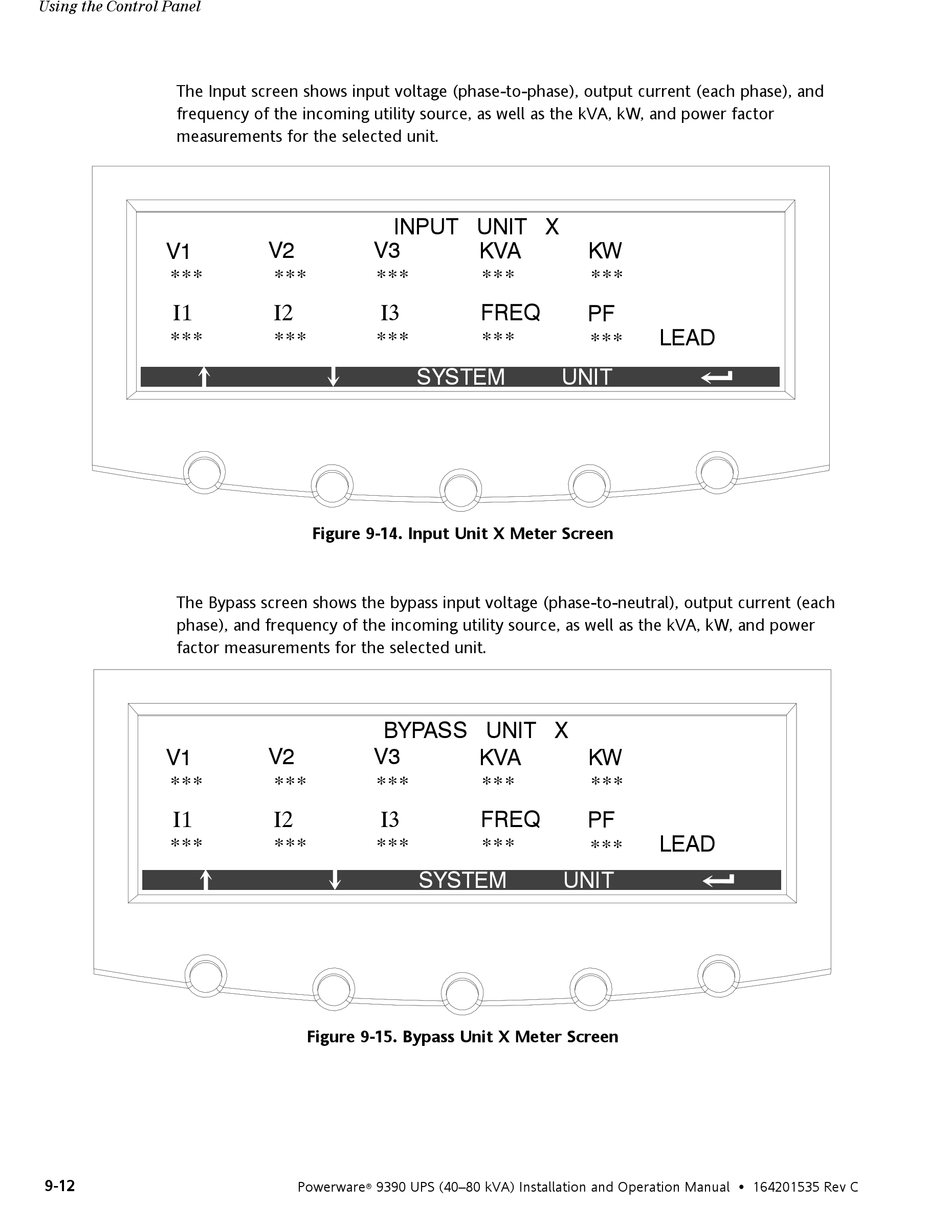

Figure 9-14. Input Unit X Meter Screen

BYPASS UNIT X
V2 V3
*** ***
I2 I3
*** ***
SYSTEM

Figure 9-15. Bypass Unit X Meter Screen

Powerware 9390 UPS (40–80 kVA) Installation and Operation Manual S 164201535 Rev C
®
KVA KW
*** ***
FREQ
PF
***
***
UNIT
KVA KW
*** ***
FREQ
PF
***
***
UNIT
LEAD
LEAD
