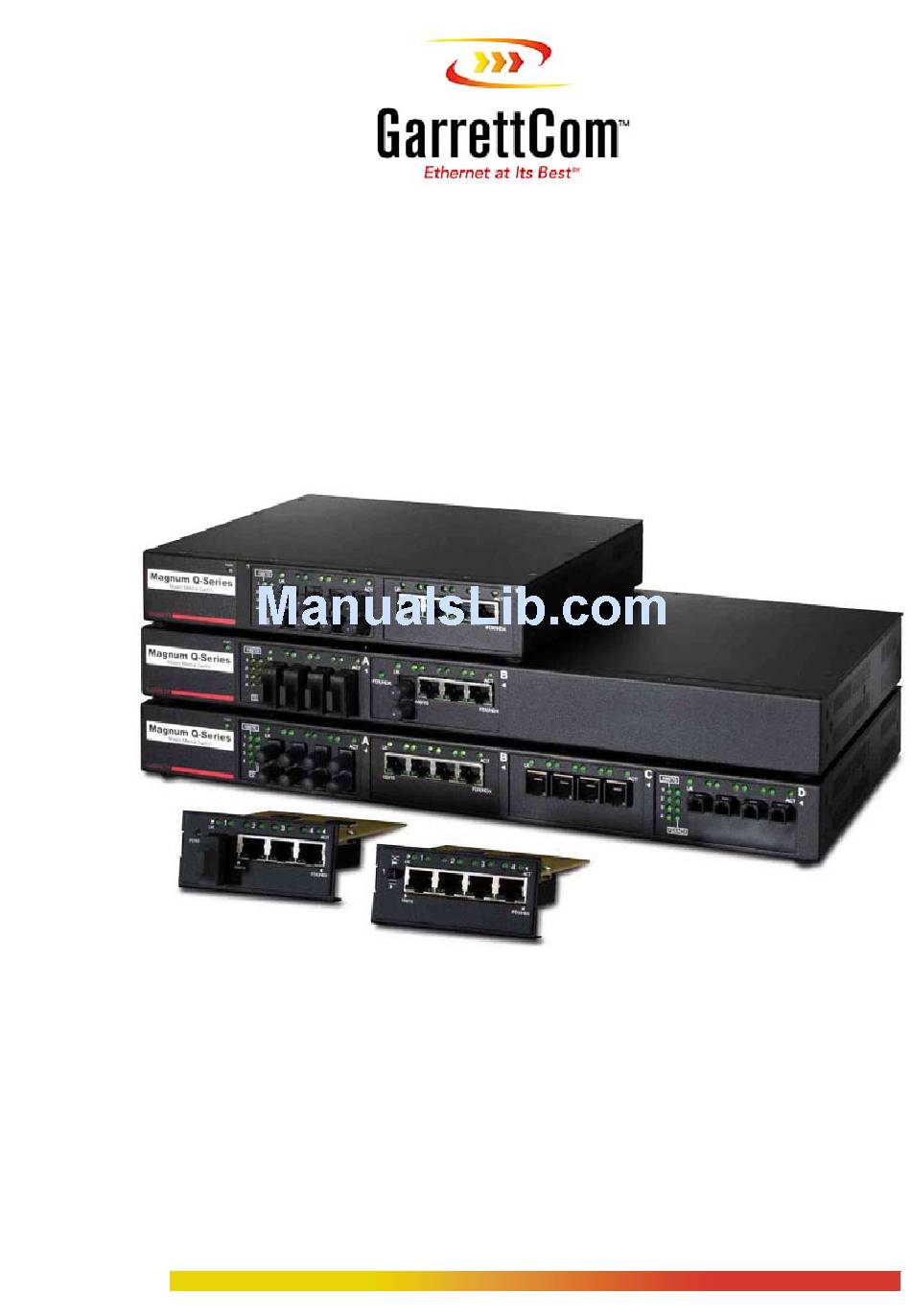

- Page 1 Magnum Quad-Series Fiber Switches Installation and User Guide www GarrettCom com...
- Page 2 NEBS is a trademark of Telcordia Technologies UL is a registered trademark of Underwriters Laboratories GarrettCom, Magnum and Personal Switch are trademarks and Personal Hub is a registered trademark of GarrettCom, Inc. Important: The Magnum Quad Series Fiber Switch contains no user serviceable parts.
- Page 3 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed below: GarrettCom, Inc. 47823 Westinghouse Dr. Fremont, CA 94539 Phone (510) 438-9071 Fax (510) 438-9072 Website: http://www.GarrettCom.com...
-
Page 4: Table Of Contents
Technical Specifications ..............1 Ordering Information ................3 INTRODUCTION ................. 4 Inspecting the Package and Product ............ 4 Product Description - Magnum Quad-Series Fiber Switches ....5 2.2.1 Magnum Quad-Series chassis models.......... 5 2.2.2 Quad-port modules, 100Mb fiber ............7 2.2.3... - Page 5 Rev C 06/02 : Updated the Rack Mounting and Appendix B & C with 24VDC and 125VDC Power Supply option Rev B 04/01 : Change the company name to GarrettCom, Inc. (Formerly it was Garrett Communications). There are no changes to the content of the material at...
- Page 6 ETHERNET CONNECTIVITY PRODUCTS "DESIGNED AND MANUFACTURED IN THE USA" OVERVIEW GarrettCom, Inc.offers the premium-quality Magnum™ line of Ethernet LAN connectivity products with industry-standard functionality and built-in fiber configurability. Magnum products are designed for use in demanding Carrier Class, Industrial Grade and OEM applications where reliability is a primary consideration.
-
Page 7: Specifications
- 15.0 km (49,215 ft) Connectors for copper wiring Twisted Pair at 10/100Mb: RJ-45 shielded, female, front mounted (for Magnum Quad-Series Fast Ethernet copper ports, use Cat 5 cable) Fiber Multi-mode connector types: Fiber Port, SC-type (snap-in): Fiber optic multi-mode, 100BASE-FX... -
Page 8: Agency Approvals
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Fiber Single-mode connector types: Fiber Port, SC-type: Fiber optic single-mode, 100BASE-FX Manual switch-selections and jumpers Up-link Push-button: Crossover sw for one RJ-45 port per QPM-RJ45 Fiber default: Full-duplex (Internal jumpers may select HDX mode) -
Page 9: Ordering Information
3TP+1F “3+1 combo” module, same as QPRJ-MSC but with fiber single-mode FX SC connector QPM10-FST Fiber module for Quad-Series Switches, with four 10 Mbps multi-mode FL ST-type connectors GarrettCom, Incl. reserves the right to change specifications, performance characteristics and/or model offerings without notice. www GarrettCom com... -
Page 10: Introduction
To validate the product warranty, please complete and return the enclosed Product Registration Card to GarrettCom, Inc. as soon as possible. In the event there are items missing or damaged, contact the party from whom you purchased the product. -
Page 11: Product Description - Magnum Quad-Series Fiber Switches
Quad-Series Switch base unit in any mix of port connector or media types. Designed for use in departments with multiple workgroups, in remote offices and in network traffic centers, the Magnum Quad-Series Switches are easy to install and use. Addresses of attached nodes are automatically learned and maintained, adapting the switching services to network changes and expansions. - Page 12 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) mountable Switches with two or four quad-port slots in the front, i.e., with a capacity of 8 or 16 switched ports. The QS5108 and QS5116 rack-mount units are typically used in larger network wiring centers.
-
Page 13: 2.2.2 Quad-Port Modules, 100Mb Fiber
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) 2.2.2 Quad-port modules, 100Mb fiber FDX/HDX FDX/HDX VF45-Small Form Factor ST-Type FDX/HDX FDX/HDX MTRJ-Small Form Factor SC-Type Fig.2.2.2 Fiber Quad-Port Modules, QPM ST, QPM-SC, QPM-MTRJ, QPM-MV45 In a fiber quad-port module, all of the fiber ports are of the same speed, the same multi- or single-mode, and the same connector type. -
Page 14: Quad-Port Module, Rj-45 (Copper)
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) rather than 100Mb speed. It supports distances according to the 10Base-FL standard, i.e., 2Km distance for multi-mode fiber. (Single-mode for 10km distance may be available as a special order). 2.2.4 Quad-Port Module, RJ-45 (copper) -
Page 15: Frame Buffering And Latency
To minimize the possibility of dropping frames on congested ports, each Magnum Quad-Series QS5116 Switches dynamically allocates buffer space from an 8 MB memory pool, ensuring that heavily used ports receive very large buffer space for packet storage. - Page 16 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Magnum Quad-Series unit to be applied to all traffic loads, even when the traffic activity is unbalanced across the ports. Since the traffic on an operating network is constantly varying in packet density per port and in aggregate density, the Magnum Quad-Series Switches are constantly adapting internally to provide maximum network performance with the least dropped packets.
-
Page 17: Features And Benefits
Front panel LED’s on each quad-port module display the status of each port for easy monitoring. An internal auto-ranging AC power supply allows any Magnum Quad-Series Switches to be used throughout the world. (A 48VDC power supply is optional, see Appendix B).\... -
Page 18: Applications
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Applications Magnum Quad-Series Mixed-Media Switches offer high performance and flexibility, and are easily used in a variety of applications including client/server computing, performance upgrades of departmental networks, and collapsed backbone applications. The Dual-Speed characteristic of the Quad-Series Switches enables them to inter-connect a series of subnets (one subnet per Q-Series Switch) in a LAN traffic center. - Page 19 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Example 2 : Magnum 8-port QS5108 In another application, a Switch is needed to provide a Fast Ethernet backbone. The backbone consists of four high-speed LAN segments, each operating over 100MB full-duplex fiber lines.
- Page 20 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Example 3: Magnum 16-port QS5116 In another situation similar to Example 2 above, a larger central Switch is needed to provide for a 6-segment 100Mb fiber Fast Ethernet backbone, and switched copper support for 4 high speed local servers.
-
Page 21: Installation
Ethernet media types. Locating Magnum Quad-Series Switches The location of a Magnum Quad-Series Switch is dependent on the physical layout of the network. Typically the Switch is placed in a central wiring location where groups of network devices need to be connected in order to communicate with each other. -
Page 22: Connecting Ethernet Media
Installation and User Guide (06/03) Connecting Ethernet Media The Magnum Quad-Series Fiber Switches are specifically designed to support all standard Ethernet media types within a single Switch unit. This is accomplished by using a family of Quad-port Modules (QPMs) which can be individually selected and configured per-port. -
Page 23: Connecting Fiber Optic Sc-Type, "Snap-In
Connecting Twisted Pair (RJ-45,CAT3, CAT5, Unshielded or Shielded) The RJ-45 ports of the Magnum Quad-Series can be connected to the following two media types: 100BASE-TX and 10BASE-T. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used. -
Page 24: Table-Top Or Shelf Mounting
Table-Top or Shelf Mounting The Magnum Quad-Series Switches can be easily mounted on a table-top or any suitable horizontal surface, and has four rubber feet to provide stability without scratching finished surfaces. - Page 25 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) brackets and screws (included with each QS5108 and QS5116 unit). The brackets attach to the front sides of the switch, which is then fastened into a standard 19” RETMA rack. The 23” brackets and ETSI brackets are also available (optional) for Rack- mounting of Magnum QS5108 and QS5116 mixed-media fiber Switches.
-
Page 26: Ports, Int Jump Set For 10/100Mb
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) 3.4 RJ-45 ports, internal jumper settings for 10/100Mb (auto- negotiation) or for fixed Half- or Full-Duplex @ 100Mb, per port The factory (or default) setting is for auto-negotiation on all RJ-45 ports, which is generally popular. -
Page 27: Fiber 100Mb Ports, Int Jump Set For 100Mb Fixed
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) See Section 4.4 for additional information on auto-negotiation functionality. 3.5 Fiber 100Mb ports, internal jumper settings for 100Mb fixed Half- or Full-Duplex, per port The factory (default) setting is for full-duplex on all fiber 100Mbps ports, which is generally popular. -
Page 28: Combo(3+1) Ports, Int Jump Set For 10/100 Rj-45 Auto-Neg
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) configuration(specially along with switches). Under certain conditions,(where the connected device is half duplex and does not support full-duplex; or the connected device does not support full-duplex properly) no full-duplex is better and the internal jumper settings will permit this to be selected on a per-port basis. -
Page 29: Fiber 10Mb Ports, Int Jump Set For 10Mb Fixed Half- Or
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) not operate correctly with full-duplex or half-duplex. Examples include hubs that support only half-duplex by default. If auto-negotiation will not function properly in your setup, internal jumpers allow the speed and mode of the Q-Series RJ-45 (copper) quad-ports to be fixed, even if the attached device may or may not support auto-negotiation. -
Page 30: Powering The Magnum Quad-Series Switch
Figure 3.7 10Mbps Fiber ports internal jumper settings. ote: Be certain that the main power is disconnected before opening the unit or changing any internal jumper settings Powering the Magnum Quad-Series Switch The Magnum Quad-Series S witches incorporate an internal universal power upply, and has a recessed male IEC connector for the AC power cord at the left-rear. -
Page 31: Quad Port Module (Qpm) Installation
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) When connecting the Ethernet cabling, there is no need to power down the unit. Individual segments can be connected or disconnected without concern for AC power-related problems or damage to the unit. - Page 32 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Step 2. Remove Chassis Cover The Magnum Q-Series chassis are combined with top and bottom part and ssembled together with the help of 20 Philips head screws. There are 7 screws located n front-top of the unit and three screws each on the left and right edges.
-
Page 33: Installing Qpm Cards In The Magnum Q-Series
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Step 3. Remove bottom-front and modules rear top Retaining Screws in any QPM or Face Plates On the bottom-front of the unit, there are two retaining screws for each QPM card slot as well as two other retaining screws on the rear top of the module. - Page 34 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Step 5. Be sure the QPM front panel is guided into the front slot cut-out first and t precisely aligned the header pins with the holes in the socket slot mounted on the board.
-
Page 35: Removing Qpm Cards
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) 3.9.3 Removing QPM Cards To properly remove a QPM card from the Fiber Switch, follow the 3 steps below. Step 1. Remove chassis cover See procedure in Section 3.9.1 above. Caution: Be sure the power cord is unplugged. -
Page 36: Operation
Switching Functionality A Magnum Quad-Series provides switched connectivity at Ethernet wire-speed among all of its ports. The Magnum Quad-Series supports10/100Mbs for copper media and 10 or 100Mb separate traffic domain for fiber port to maximize bandwidth utilization and network performance. A... -
Page 37: Status Leds
An address-aging algorithm causes least-used addresses to fall out in favor of new frequently-used addresses. To reset the address buffer, cycle power down-and-up. Status LEDs For all Magnum Quad-Series models : : Power LED, ON when external power is applied to the unit. : Steady ON, L ink status for 10 Mbps and 100Mbps operation. - Page 38 Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) converters mostly do not support auto-negotiation properly, and require that the switched port to which they are connected be at 100Mb fixed speed. Attachment to 10/100 auto- negotiation ports typically will not work properly. The Quad-Switch’s RJ-45 ports handle this situation by changing the internal jumper settings.
-
Page 39: Auto-Negotiation For 10 Mb Ports, Half- Or Full-Duplex Mode
The Magnum Quad-Series Switches perform half- or full-duplex mode auto negotiation independently on all switched ports. If the device or node on the other end of a port’s a... -
Page 40: Power Budget Calculations For Quad-Series Qpm's With Fiber
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) Power Budget Calculations for Quad-Series QPM’s with Fiber Media Receiver Sensitivity and Transmitter Power are the parameters necessary to compute the power budget. To calculate the power budget of different fiber media... -
Page 41: Introduction - Magnum Quad-Series (Qpm)
Quad- Port Modules (QPMs) for flexible mixed-media connectivity to RJ-45 and fiber media. Since the Magnum Quad-Series Switches have dual-speed capability for copper ports, the quad-port interfaces are designed to support all standard Ethernet media types at 10 or 100Mps speed. Each QPM provides four ports for connecting Ethernet segm ents with its individual connector type and media. -
Page 42: Qpm-Mst, 100Mb Multi-Mode Fx-St Quad-Port Mod
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) 5.2.1 QPM-MST, 100Mb multi-mode FX-ST Quad-port Module, “twist lock” The Magnum QPM-MST is a multi-mode 100Mbps fiber optic quad-port module equipped with dual ST-type 100BASE-FX, and 10BASE-FL ST Connectors connectors. It functions as a fiber optic... -
Page 43: Qpm-Msc 100Mbps Multi-Mode Fx-Sc Quad-Port, "Snap
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) 5.2.2 QPM-MSC 100Mbps multi-mode FX-SC Quad-port, “snap-in” connector 100BASE-FX Multi-Mode The Magnum QPM-MSC is a multi- SC Connectors mode 100Mbps fiber optic transceiver m odule, FDX/HDX similar to the QPM-MST. It has the same LEDs... -
Page 44: Qpm-Mtrj, 100Mb Multi-Mode Fx Quad-Port, Mtrj Small
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) 5.2.4 QPM-MTRJ, 100Mb multi-mode FX Quad-Port, MTRJ small- form-factor Magnum QPM-MTRJ is a multi- 100BASE-FX MTRJ mode fiber optic quad-port module equipped Connectors with a small-form-factor MTRJ-type connector. It looks almost like an RJ-45 FDX/HDX port, but it is black in color. -
Page 45: Qpm-Mv45, 100Mbps Multi-Mode Fx Quad-Port Vf45 Small-38 5.2.6 Qpm-Rj45 (Twisted Pair), 10/100Mb Tp Quad-Port
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) The small size of the VF-45, about the same as an RJ-45 port, reduces the size of wiring panels in wiring closets while pr oviding the advantage of “future-proof” fiber optic technology The cable end is a “plug-in”... -
Page 46: Qprj-Msc, "3 + 1" 3@10/100Mb Rj-45 And 1@100Mb Fib
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) FDX/HDX LED to indicate full-duplex mode when lit (or half-duplex when off), and a “s peed” LED indicating 100Mb when lit (or 10 Mbps when off). Important Note: For the QPM-RJ45 Crossover Push-button - OUT for wor kstations and user node connections. -
Page 47: Qprj-Mst, "3 + 1" 3@10/100Mb Rj-45 And 1@100Mb Fib
Magnum Quad-Series Fiber Switches Installation and User Guide (06/03) 5.2.8 QPRJ-MST, “3 + 1” 3@10/100Mb RJ-45 and 1@100Mb Fiber ST Multi-mode Connector, “Combo” Quad-Port Module The Magnum QPRJ-M ST is also a 3+1 Combo quad-port. It is the same as the QPRJ-MSC “3+1 combo”... -
Page 48: Troubleshooting
Quad Series Fiber Switch and its associated cables are functioning properly. If the problem continues after completing Step 4 above, contact your supplier of the Magnum Quad Series Fiber Switch unit or if unknown, contact GarrettCom, Inc.by fax, phone or email (support@garrettcom.com) for assistance. www GarrettCom com... -
Page 49: When Calling For Assistance
(see Warranty Information, Appendix A, for complete details). However, if the problem or condition causin g the return cannot be duplicated by GarrettCom, the unit will be returned as: No Problem Found. www GarrettCom com... -
Page 50: Shipping And Packaging Information
Fremont, CA 94539 Attn.: Customer Service APPENDIX A: WARRANTY INFORMATION GarrettCom, Inc. warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of shi pment by rret tCom. - Page 51 APPLICATIONS FOR DC POWERED ETHERNET SWITCHES Magnum Quad-Series Switches are easily installed in a variety of applicat ions where -48VDC, 24, 100 or 125VDC power is us ed as the primary power source.
- Page 52 Figure B4.1: -48VDC Terminal Block on Magnum Quad-Series Switches -48VDC In this picture, the -48VDC terminal block on the Magnum Quad-Series Switch is located on the rear of the unit and is equipped with three (3) screw-down lead posts. It is similar for 24, 100 and 125VDC options on the Quad-Series Switch.
-
Page 53: Appendix C: Magnum Internal Dc Dual-Source Power
, and where two separate power sources are utilized in order to increase operational uptime and to simplify maintenance. The functionality of the Magnum Quad-Series Switches -48VDC, 24, 100 or 125VDC Dual-Source Option switches are identical to the standard AC-powered m odels. - Page 54 INSTALLATION This section describes the proper connection of the -48VDC, 24, 100 and 125VDC dual source leads to the DC power terminal block on the Magnum Quad-Series Switch (shown in Figure C4.0 with 48v input as example). he –48VDC terminal block on the Magnum Quad-Series Switch is located on...
- Page 55 OPERATION Operation of the al-So urce Magnum Quad-Series Switch-48VDC, 24, 100 nd 125VDC models are identical to that of the standard models. Please refer to the pplicable sections of the “Installation and User Guide” for more information on the asic switches.
