GarrettCom Magnum S14 Installation And User Manual

Convenient switch
Hide thumbs Also See for Magnum S14:
Table of Contents

Advertisement

Quick Links

Download this manual

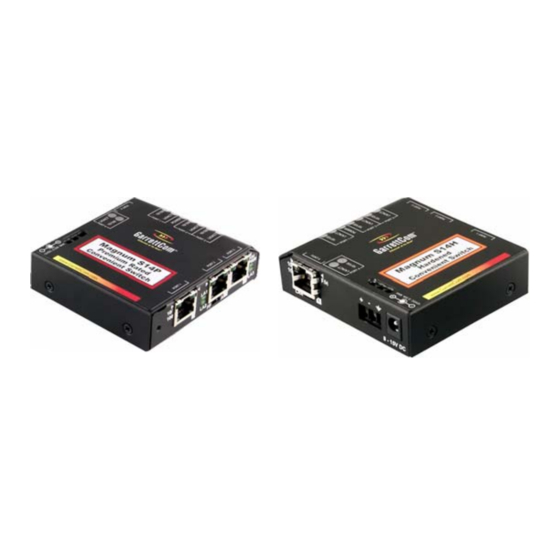

Magnum S14 Convenient Switch
(A member of Converter Switch family)
Installation and User Guide
www GarrettCom com
.
.
$5.00 USD

Advertisement

Table of Contents
loading

Related Manuals for GarrettCom Magnum S14

Summary of Contents for GarrettCom Magnum S14

  • Page 1 Magnum S14 Convenient Switch (A member of Converter Switch family) Installation and User Guide www GarrettCom com $5.00 USD...
  • Page 2 S14, 10/100 Mb/s Switches products, consult Section 5, Troubleshooting, of this User Guide. Copyright © 2004 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc. Printed in the United States of America.
  • Page 3 Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be required to correct the interference. www GarrettCom com...
  • Page 4 S14 Convenient Switch Installation and User Guide (06/04) Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed below: GarrettCom, Inc. 213 Hammond Ave. Fremont, CA 94539 Phone (510) 438-9071 Fax (510) 438-9072 Website: http://www.GarrettCom.com Email: support@garrettcom.com...

  • Page 5: Table Of Contents

    Technical Specifications ... 1 INTRODUCTION ... 9 Inspecting the Package and the Product... 9 Product Description ... 10 Magnum S14-Series, with four (RJ-45) Copper ports ... 15 Frame Buffering and Latency ... 16 Features and Benefits... 19 Applications for office S14-Series... 21 INSTALLATION...
  • Page 6 Dual-Speed Functionality, and Switching ... 42 Auto-cross (MDIX),Auto-negotiation and Speed-sensing... 45 (FF/A)Full Fixed or Auto-negotiation options for port# 2 ... 46 Dual LEDs, Front-panel and side-panel (Magnum S14-Series) ... 47 Before Calling for Assistance ... 49 When Calling for Assistance ... 50 Return Material Authorization (RMA) Procedure ...
  • Page 7 Revisions 06/04 Small revision of the Agency Approvals Rev A 03/04: Initial release of this user manual for the S14 Converter Switch GarrettCom, Inc. reserves the right to change specifications, performance characteristics and/or model offerings without notice. www GarrettCom com...

  • Page 8: Specifications

    Packet-Processing Between Domains Filter / Forwarding Rate from 100Mbps ports: 148,800 pps max Filtering and Forwarding Rate from 10 Mbps ports: 14,880 pps max. Processing type: Store and Forward, non-blocking Auto-learning: 2K address table www GarrettCom com Installation and User Guide (06/04)
  • Page 9 Maximum Ethernet Segment (or Domain) Lengths 10BASE-T (Unshielded twisted pair) 100BASE-TX (CAT 5 UTP) Operating Environment Ambient Temperature (S14): www GarrettCom com Installation and User Guide (06/04) 100 to 10 Mbps: 5µs 10 to 100Mbps: 5µs - 100 m (328 ft) - 100 m (328 ft) 32ºF to 104ºF (0ºC to 40ºC)
  • Page 10 Packaging: Enclosure: Rugged sheet metal (Steel). Dimensions, Switch unit: Height x Width x Depth S14, S14H, and S14P: 3.5 in H x 3.0 in W x 1.0 in D (8.9 cm x 7.6 cm x 2.5 cm) Weight: all models: 4.6 oz. (130g);...
  • Page 11 Input: 100-240V AC at 47-63Hz, for “-Hd” high temp. “-Hi” w/ adapter kit Input: 95-260V AC at 47-63Hz, for “-Pd” high temp. “-Pi” w/ adapter kit DC to unit: 12V DC, 2.5mm jack, center +ve, 6ft. cord www GarrettCom com Installation and User Guide (06/04)
  • Page 12 Note 2: Internal DC power floats, user may ground “+” or “-” if desired. Port Connectors: RJ-45 Port: Auto-cross(MDIX), 100BASE-TX and 10BASE-T:shielded 8-pin female. Three RJ-45 port provided in front and one on the rear. Supports shielded www GarrettCom com Installation and User Guide (06/04)
  • Page 13 (STP) and unshielded (UTP) Cat 3,4,5 cable. For POE pass-through option on H and P models, request quote. Switches: Port # 2 controlled by an “A-FF” switch, provided next to it. “A” enables auto-negotiation and auto-cross (MDIX) “FF” enables Full Fixed, 100Mb Full Duplex mode...
  • Page 14 P model: designed for UL 2043 above-the-ceiling installation IEC61850 EMC and Operating Conditions Class C for Power Substations Warranty: Three years, return to factory www GarrettCom com Installation and User Guide (06/04) ) – 15+ years, Telcordia (Bellcore) Method Made in USA...

  • Page 15: Summary Of Models And Descriptions

    Installation and User Guide (06/04) 1.2 Summary of models and descriptions: S14-d,i = four 10/100 RJ-45 ports Switch, for office and wiring closet env., ext. AC Pwr Supply S14H-Hd, Hi = Hardened, four 10/100 RJ-45 ports Switch, Factory floor, Int. 8-15VDC, Ext.

  • Page 16: Introduction

    Inspect the contents of this package for any signs of damage and ensure that the items listed below are included. This package should contain: Magnum S14-Series Convenient Switch Unit External Power Supply, (for S14, S14H, S14P), (d, i model only) 1 set Metal panel mounting clips and screws, 2 each User Guide, i.e., this manual...

  • Page 17: Product Description

    / value unit for each user and installation. For any user who needs a small chunk of Ethernet connectivity, a 4-port “go anywhere” Magnum S14 Switch is a versatile and handy solution, and can provide it in a convenient compact package.
  • Page 18 PORT 4 Left Side View Magnum S14 Convenient Switch Fig2.1a. Magnum S14, Front view (three RJ-45 ports on Front side of the unit, as shown in Fig Fig2.2a. Magnum S14, Rear view (one RJ-45 port on rear side) GarrettCom Magnum S14 Convenient Switch Fig 2.1a...
  • Page 19 No air inflow is required for cooling, so the S14H resists dust, dirt, moisture, smoke and insects, and is above-the- ceiling (plenum) rated. Choices of models for external AC or internal DC power are www GarrettCom com...
  • Page 20 PORT 4 Fig 2.2c- Magnum S14H, Front view (three RJ-45 ports on Front side of the unit, as shown in Fig. GarrettCom Magnum S14H Hardened Convenient Switch Fig2.2c. Magnum S14H, Rear view (one RJ-45 port and DC option on Fig 2.2c rear side) as shown in Fig.
  • Page 21 DIN-rail, or rack-mount tray. Choices of models for external AC or internal DC powers are available. Ambient temperature rating is –40°C to +75°C for any of the GarrettCom Magnum S14P power input types, AC or DC. Premium Rated Convenient Switch www GarrettCom com...

  • Page 22: Magnum S14-Series, With Four (Rj-45) Copper Ports

    S14 Convenient Switches 2.3 Magnum S14-Series, with four (RJ-45) Copper ports The Magnum S14-Series chassis houses one main PC board. The power supply is an external AC unit or internal DC via a screw terminal block. The front side of the chassis has three twisted-pair switched ports and one port is provided on the rear side.

  • Page 23: Frame Buffering And Latency

    100Mb Full Duplex ports, or “A” to connect with an auto-negotiating port. Port #2 is controlled by the manually-selectable slide-switch (FF-A), mounted underneath the port. Use care in changing the switch position as the switch is small and fragile. See section 4.4. 2.4 Frame Buffering and Latency The Magnum S14-Series Convenient Switches are store-and-forward switches.
  • Page 24 When the Switch detects that its free buffer queue space is low, the Switch sends industry standard (full-duplex only) PAUSE packets out to the devices sending packets to cause “flow control”.
  • Page 25 This flow-control sequence occurs in a small fraction of a second and is transparent to an observer. See Section 4.6 for additional details. Another feature implemented in Magnum S14-Series Convenient Switches is a collision-based flow-control mechanism (when operating at half-duplex only). When the...

  • Page 26: Features And Benefits

    Small 4-port 10/100 Switch unit for edge-of-network applications Where a small chunk of Ethernet connectivity is needed to connect edge devices into the LAN, the Magnum S14-Series Switches provide 10/100 switching in a convenient and compact package that fits right into the site.
  • Page 27 Efficient Compact design, for all-purpose convenient mounting Featuring a compact metal case, Magnum S14-Series can be installed in minimal space in rack-mount MC14-TRAY, on DIN-Rail (optional), or panel-mounted.

  • Page 28: Applications For Office S14-Series

    #1 with twisted pair cabling, to add 3 more ports.. Example 1. S14’s-In this example, the Magnum S14 Convenient Switch is used to serve a small office in a factory with multi-servers, print server, internet access and mixed-...
  • Page 29 S14 Convenient Switches Magnum 6K25 W W W . G a r r e t t C o m . C o m GarrettCom Magnum 6K25 10/100/1000 PORT 3 PORT 1 PORT 2 GarrettCom PORT 4 Magnum S14 Convenient Switch...
  • Page 30 The multi- functional S14 Convenient switches provide this solution very efficiently and economically. Various features included MDIX, plug-n-play, Din-Rail mountings and dual LEDs make this compact and convenient switch a very effective solution for this requirement. Example 2. S14Hs:...
  • Page 31 PORT 2 PORT 3 PORT 1 W W W . G a r r e t t C o m . C o m GarrettCom GarrettCom Magnum 6K25 10/100/1000 PORT 4 Configurable Ethernet Switch Magnum S14 Convenient Switch IBM Compatible 12V, 1.5Amps...
  • Page 32 10 Mbps and 100Mbps users and devices un-conditionally. The switching capability on all ports provides bandwidth for high performance. The ruggedness of the S14Ps steel case and the high reliability of the design compliments the temperature controlled packaging to provide an exceptional Ethernet product. www GarrettCom com...
  • Page 33 100Mb Servers and Workstations and Workstations S14P Convenient Switches provided a secure dependable, www GarrettCom com reliable solution for un-controlled temp. environment Installation and User Guide (06/04) Magnum 6K25 W W W . G a r r e t t C o m . C o m...
  • Page 34 The ongoing demand of growing network can be easily met by this sleek designed convenient Switch. The steel enclosure and wide selections of DC power input qualifies the Magnum S14Ps to provide a dependable, reliable and economical solution for any temperature un-controlled location environments.

  • Page 35: Installation

    S14 Convenient Switches INSTALLATION This section describes the installation of the Magnum S14-Series Convenient Switches, including location, mountings, power supply and media connection. 3.1 Locating the Convenient Switch Unit All the S14-series Switches operate in transparent half-and full-duplex mode. The store and forward switch easily take care of the network traffic and can be used as a useful economical tool to expand the existing network.

  • Page 36: Mc14-Tray For Rack Mounting Of S14-Series Switches

    S14 Convenient Switches Installation and User Guide (06/04) Installation of the Magnum S14-Series Switches is a simple procedure. The installation location is dependent upon the physical layout of the Ethernet network and associated cabling. Make sure the unit is installed in a location that is easily accessible to an AC power outlet or power strip, and where convection cooling is not inhibited.
  • Page 37 Metal mounting screws in the bottom-front hold the Media Converters firmly in place. The beveled-top edge of the units permits the LEDs of each unit to be viewed for operational status, even when the units are very close together. www GarrettCom com...

  • Page 38: Mc14-Tr+Ps9 & Mc14-Tr+Ps9X2

    (The MC mounting spaces of the MC14 -TR models are specific to the Magnum S14-Series 10Mbps (FT14 and TB14) and 100Mb (14E) series, and do not permit other models to be put in the tray). www GarrettCom com...
  • Page 39 S14 Convenient Switches rear area of the tray. (PS units that come with the MC’s are not used). www GarrettCom com Installation and User Guide (06/04) The side-view picture shown here (above) is an example of an installation of the model MC14-TR+PS9, 19”...

  • Page 40: Din-Rail Mounting Option

    MC unit. The Rail clip is spring-loaded with a pull-up latch at the top for easy “snap-on” attachment and removal. A Magnum S14H is shown alongside the DIN-Rail-MC2 bracket www GarrettCom com Installation and User Guide (06/04)

  • Page 41: Power Requirements, Power Supply Types For S14-Series Switches

    Magnum S14-Series Switches are power-efficient and can work with an external AC power supply. Magnum S14-Series require a nominal 12VDC input (range 8 to 15V, see Specifications) at the jack in the rear. The extended temperature –Hd version is used for heavy duty and industrial applications, up to 55`C ambient.
  • Page 42 DC and the –48V DC is provided in the Technical Specifications Section 1.1. The various models of Direct DC power type and extended ambient temperature power supplies are numerous and your choice needs to be called out on your order. www GarrettCom com...

  • Page 43: Powering The S14H & S14P (Dc Internal) With 12V, 24V Or -48

    The three model choices are for use with 12VDC, 24VDC or -48VDC power. DC power input may be chosen for high- availability. The extended temperature capability of the Direct DC-powered S14P’s www GarrettCom com...
  • Page 44 GND: Terminal for “earth” or ground wire connection to the S14H chassis Input Voltage: 8 - 15V DC (12V DC) 18 – 36V DC (24V DC) 36 – 60V DC (-48V DC) Input current: 0.8 amp.(12V DC) 0.4 amp max.(24V DC) www GarrettCom com Installation and User Guide (06/04)

  • Page 45: S14H, Dc-Powered, -48Vdc, 24Vdc And 9Vdc Installation

    “earth” or ground (GND). The connection procedure is straightforward. Simply insert the DC leads to the S14H’s power terminals, positive (+) and negative (-) screws. The use of Ground (GND) www GarrettCom com Installation and User Guide (06/04)

  • Page 46: Connecting Twisted Pair (Rj-45 Ports)

    When power is applied, the green PWR LED will illuminate. 3.8 Connecting Twisted Pair (RJ-45 ports) The Magnum S14-Series Convenient Switches can be connected to only one media type with two different speed i.e. 100BASE-TX and 10BASE-T. CAT 5 cables should be used when making 100BASE-TX connections.

  • Page 47: Connecting Twisted Pair (Rj-45, Cat 3 Or Cat 5)

    NOTE : It is recommended that high quality CAT. 5 cables (which work for both 10 Mbps and 100Mbps) be used whenever possible in order to provide flexibility in a mixed-speed network, since S14-series switch ports are auto-cross(MDIX) for either 10 and 100Mbps. Note that the auto-cross function does not operate, if the port is fixed or not supporting auto-negotiation.

  • Page 48: Connections To Nics Which Support Auto-Negotiation

    For Port # 1 or 1SW, if the LINK LED is not illuminated, move the switch which has a cross-over or up-link for linking to another hub or Switch.

  • Page 49: Operation

    ON and is OFF, if 10 Mbps traffic. OPERATION 4.1 Dual-Speed Functionality, and Switching The Magnum S14-Series Convenient Switches provide four switched ports(three ports in the front and one on the rear). The architecture supports a dual speed switching environment, with auto-negotiation capability.
  • Page 50 S14 Convenient Switches Magnum S14-Series units are plug-and-play devices. There is no software configuring to be done at installation or for maintenance. The only hardware configuration settings is user options for port#2, to configure at FF/AN and can be done through a manual switch accessed from the front side.
  • Page 51 Switching, Address Learning The Magnum S14-Series units have address table capacity of 2K node addresses, and are suitable for use in large networks. They are self-learning, so that as nodes are added or removed or moved from one segment to another, the S14-Series automatically keeps up with node locations.

  • Page 52: Auto-Cross (Mdix),Auto-Negotiation And Speed-Sensing

    The P80F or P80C advertises its capability for 10 or 100 Mbps speed, and the device at the other end of the cable should similarly advertise / respond and www GarrettCom com Installation and User Guide (06/04) GarrettCom Magnum S14 Right Side View...

  • Page 53: Ff/A)Full Fixed Or Auto-Negotiation Options For Port# 2

    10 Mbps or 100Mbps speed. (FF/A)Full Fixed or Auto-negotiation options for port# 2 Ports # 2 have “FF - A” manual switch mounted underneath the port#2 of the Convenient Switch. While in the “FF” position, it allow the port to 100Mbps full duplex fixed mode only, which can be useful for using Fast Ethernet media converter (like Magnum 15E).

  • Page 54: Dual Leds, Front-Panel And Side-Panel (Magnum S14-Series)

    S14 Convenient Switches 4.4 Dual LEDs, Front-panel and side-panel (Magnum S14-Series) Description Illuminates GREEN to indicate power applied. LK/ ACT Steady ON for LINK w/no traffic, blinking for activity per port. LINK will turn off in the event connectivity is lost between the ends of the twisted pair segment or a loss of power occurs in the unit or remote device.

  • Page 55: Troubleshooting

    However, if you are unsure of the procedures described in this section or if the Magnum S14-Series 10/100 Mb/s Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact GarrettCom Customer Support.

  • Page 56: Before Calling For Assistance

    (About 90% of network downtime can be attributed to wiring and connector problems.) Make sure that an AC power cord is properly attached to each Magnum S14- Series unit. Be certain that each AC power cord is plugged into a functioning electrical outlet.

  • Page 57: When Calling For Assistance

    S14 Convenient Switches If the problem continues after completing Step 4 above, contact your supplier of the Magnum S14-Series 10/100 Mb/s Switch unit or if unknown, contact GarrettCom, Inc by fax, phone or email (support@garrettcom.com) for assistance. 5.2 When Calling for Assistance Please be prepared to provide the following information.

  • Page 58: Return Material Authorization (Rma) Procedure

    5.3 Return Material Authorization (RMA) Procedure All returns for repair must be accompanied by a Return Material Authorization (RMA) number. To obtain an RMA number, call GarrettCom Customer Service at (510) 438-9071 during business hours in California or email to support@garrettcom.com). When calling, please have the following information readily available: Name and phone number of your contact person.

  • Page 59: Shipping And Packaging Information

    (user) charge. 5.4 Shipping and Packaging Information Should you need to ship the unit back to GarrettCom, please follow these instructions: 1. Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap" plastic sheet or bag for shipping protection.
  • Page 60 This material may cause electro-static shock damage to the unit. 2. Clearly mark the Return Material Authorization (RMA) number on the outside of the shipping container. 3. GarrettCom is not responsible for your return shipping charges. 4. Ship the package to: GarrettCom, Inc.

  • Page 61: Appendix A: Warranty Information

    GarrettCom, Inc. warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of shipment by GarrettCom. During this warranty period, GarrettCom will repair or, at its option, replace components in the products that prove to be defective at no charge other than shipping and handling, provided that the product is returned pre-paid to GarrettCom.
