- Page 1 Magnum P62-Series (P62F and managed mP62 models) Hardened Ethernet Switches Installation and User Guide www GarrettCom com...
- Page 2 UL is a registered trademark of Underwriters Laboratories GarrettCom, Magnum, Personal Switch, and Link-Loss-Learn (patent pending) are trademarks and Personal Hub is a registered trademark of GarrettCom, Inc. Important: The Magnum P62-Series Hardened Ethernet Switches contain no user serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void.
- Page 3 Magnum P62-Series Hardened Switches Installation and User Guide (12/02) Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed below: GarrettCom, Inc. 213 Hammond Ave. Fremont, CA 94539 Phone (510) 438-9071 Fax (510) 438-9072 Website: http://www.GarrettCom.com...
- Page 4 "DESIGNED AND MANUFACTURED IN THE USA" Overview GarrettCom, Inc. offers the Magnum line of Ethernet LAN connectivity products with industry-standard functionality. Magnum products are heavy duty, feature fiber-built-in ports, and have AC and DC power options to make them suitable for a variety of Industrial and Carrier Class applications.
-
Page 5: Table Of Contents
C 11/01: This revision includes the magnum P62F-NOF, and metal mounting. B 08/01: This revision includes the update of additional power source A 04/01: This revision is the initial release of the P62F Hardened Switches user manual. www GarrettCom com Installation and User Guide (12/02) PAGE... -
Page 6: Specifications
IEC 529 rated IP51 (holds out dust, vertical water) Operating Shock and Vibration: Meets Bellcore GR-63-CORE Conformal coating (tropical humidity protection) optional, request quote www GarrettCom com Installation and User Guide (12/02) 100 to 10 Mbps: 5 s 10 to 100Mbps: 5 s... - Page 7 SPEED: (when LINK is ON): ON = 100Mbps; OFF = 10 Mbps LINK/ACT: Steady ON for LINK with no traffic, blinking indicates port F/H (RJ-45 ports only): ON = full-duplex, OFF = half-duplex www GarrettCom com 24VDC and -48VDC Power Supply 125VDC & 250VDC, (PSX-T) for P62-Series -5V only...
- Page 8 IEEE P1613 (Draft) Environmental Standard for Electric Power Subs. (C37.90) Emissions: meets FCC Part 15, Class A, and ETSI UL2043 fire tests for “plenum rating”. Warranty: Three years, return to factory www GarrettCom com Installation and User Guide (12/02) sales@GarrettCom.com for details...
-
Page 9: Ordering Information
Mounts as a separate unit adjacent to a Magnum Model P62F-5V Switch. Magnum PSX-T: Same as PSX-A , except 125VDC to 250VDC input, terminal lugs for “+”, “-“, and GND www GarrettCom com Installation and User Guide (12/02) - Page 10 *PSX unit or equal required to supply 5VDC input. For more information, see the PSX datasheet. Magnum P62 models with other fiber connector types and combinations available, request quote. GarrettCom, Inc. reserves the right to change specifications, performance characteristics and / or model offerings without notice.
-
Page 11: Introduction
To validate the product warranty, please complete and return the enclosed Product Registration Card to GarrettCom, Inc. as soon as possible. In the event there are items missing or damaged, contact your supplier. If you need to return the unit, use the original shipping container. -
Page 12: Product Description

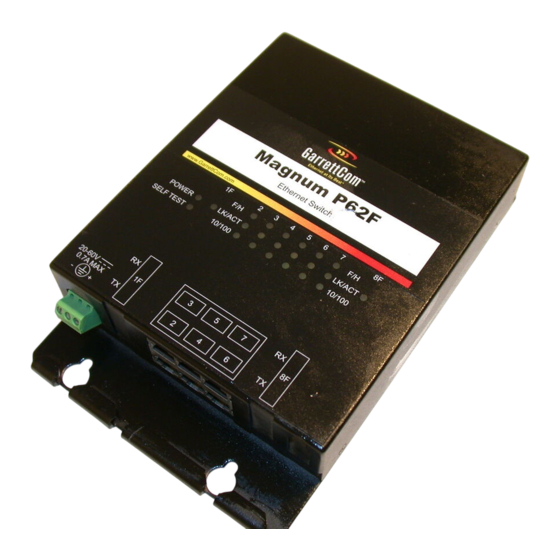

Top-mounted LEDs provide extra advantage for the user to observe the status information of each port. The Magnum P62-Series Hardened Switches generate high www GarrettCom com Installation and User Guide (12/02) -
Page 13: Magnum P62-Series Chassis W/Fiber Sc (M.m. Or S.m) Connectors
The DC Magnum P62-Series Model is typically used for power input of 24VDC or –48VDC only. The DC input power supports a wide range, from 20-70 VDC auto-ranging. DC power input is featured for high reliability and convenience in out-of-the-way locations. www GarrettCom com Installation and User Guide (12/02) Magnum P62F... -
Page 14: Managed Mp62 Chassis With Fiber Sc (M.m. Or Single-Mode) Ports
The neat appearance of the MENU driven MNS-mP is specially developed to have its function configured easily by the users. www GarrettCom com Installation and User Guide (12/02) mP62-5V with the PSX-A = AC model... -
Page 15: Managed Network Software ( Mns-Mp ) For Magnum Mp62
Magnum mP62’s come with licensed MNS-mP software, which allows a user to configure the Magnum mP62 as a Managed Hardened Switch and activate the Software features. For additional information about MNS-mP, see the Magnum mP62’s Software User guide in pdf www GarrettCom com feature (patent pending) in mP62’s allows rapid http://www.garrettcom.com/mp62.htm... -
Page 16: Connecting The Console Terminal To Magnum Mp62 (Management)
: ftpuser password : ftpuser All the MNS-mP Software related information and NEW releases related to MNS-mP Software and Hardware for mP62’s can be accessed and download from Garrettcom’s FTP site. www.GarrettCom.com/techsupport Or please visit MNS-mP software support information. -
Page 17: Fiber Port, Sc Connectors
Since collisions and bad packets are more likely when traffic is heavy, the result of store-and- forward operation is that more bandwidth is available for good packets when the traffic load is greatest. www GarrettCom com Installation and User Guide (12/02) On Magnum P62-Series units, there are three LED’s for each of the RJ-45 switched ports. - Page 18 For 10 Mb-to-10 Mb or 10 Mb-to-100Mb or 100Mb-to-10 Mb forwarding, the latency is 15 microseconds plus the packet time at 10Mb. For 100Mb-to-100Mb forwarding, the latency is 5 microseconds plus the packet time at 100Mb. www GarrettCom com Installation and User Guide (12/02)
-
Page 19: Features And Benefits
The New managed mp62 armed with management functions including SNMP, QoS, STP, Port based VLAN, Port settings, Password security, BootP / DHCP etc MTBF over 10+ years, per Bellcore calculation method sales@garrettcom.com Email www GarrettCom com Installation and User Guide (12/02) for MTBF detail. -
Page 20: Applications
Figure 2.6.1: A P62F connects combinations of 10 Mbps and100Mbps network devices and provides a Fast Ethernet fiber backbone for access to the central control station www GarrettCom com In this example, a Magnum P62F Hardened Switch performs Magnum P62F... - Page 21 The rugged enclosure with cable strain feature gives extra protection and security to the cabling to hold the copper and fiber cable more securely with the Switch ports. www GarrettCom com Magnum P62F Magnum P62F Server Fast Ethernet backbone.
- Page 22 The managed mp62 Hardened Switch is specially designed to operate in uncontrollable temperature applications and its wide variety of AC/DC options also qualify this hardened Switch to deploy in harsh applications. www GarrettCom com Installation and User Guide (12/02) Magnum...
-
Page 23: Installation
(cables at the bottom) position. The base plate of the unit has screw holes cut out, two top and two bottom. The spacing for the mounting screws is a rectangle 3.35” x 7.92” (8.5cm x www GarrettCom com Installation and User Guide (12/02) - Page 24 Figures 1 & 2 below provide the mounting holes measurement information for the PSX unit (mounted on top, if present) and for the Magnum P62-Series unit. Fig 1. Mounting Hole Dimensions, inches & (cm) www GarrettCom com 3.35” (8.5) 3.35” (8.5) 3. 35” (8.5) 3.
-
Page 25: Connecting Ethernet Media, And Special Strain-Relief Feature
The following procedure describes how to connect a 10BASE-T or 100BASE-TX twisted pair segment to the RJ-45 port. The procedure is the same for both unshielded and shielded twisted pair cables. www GarrettCom com Installation and User Guide (12/02) connected to the following three media types: 100BASE-TX, 10BASE-T and 100BASE-FX. -
Page 26: Connecting Fiber Optic Sc-Type, "Snap-In
Single-mode fiber cable has a smaller diameter than multi-mode fiber cable (9/125 microns for single-mode, 50/125 or 62.5/125 microns for multi-mode where xx/xx are the diameters of the core and the core plus the cladding respectively). Single-mode fiber allows full bandwidth at www GarrettCom com Installation and User Guide (12/02) -
Page 27: Power Budget Calculations For P62-Series Fiber Media
The worst-case OPB of the fiber link must be greater than the fiber cable’s passive Attenuation. (Attenuation = Cable loss + LED aging loss + Insertion loss + safety factor) www GarrettCom com (min) - P (min) (m.m.) is 2.8 dB/km, Std. -
Page 28: Connections To Nics Which Support Auto-Negotiation, Rj-45 Ports
+ve potential lead or -ve potential lead. The more +ve potential lead will connect to the post labeled “+ve” and the rest to the “-ve”. The GND can be hooked up at the last. When power is applied, the green PWR LED will illuminate. www GarrettCom com ” internally... -
Page 29: Power The P62-5V Models W/Ext Ac Power Supply (Psx-A)
Power the P62-5V w/DC Pwr Supply (PSX-T) at 125/250 VDC The rugged Magnum P62-5V Hardened Switch also supports 125V/250 VDC power through a separate Power Source unit, the PSX-T. The wide range of AC power input qualifies www GarrettCom com Installation and User Guide (12/02) - Page 30 (such as pedestal) that has good heat conducting properties. Remove rubber “feet”, if present, to enhance metal-to-metal contact and provide the best heat transfer away from the PSX unit. www GarrettCom com ”, internally floating GND terminal for “earth” or ground wire Installation and User Guide (12/02)
-
Page 31: Cable Strain Relief Feature On All P62-Series Models
This feature provides a more reliable and robust installation and operation. The figure below of a P62F model illustrates the strain-relief feature, using tie-wraps. www GarrettCom com Installation and User Guide (12/02) -
Page 32: Operation
They are self-learning, so that as nodes are added or removed or moved from one segment to another, the P62-Series automatically keeps up with node locations. www GarrettCom com Installation and User Guide (12/02) -
Page 33: Auto-Negotiation And Speed-Sensing
ON = Full-Duplex and Link, OFF = Half-Duplex and / or no Link. LK/ACT: Per port, steady ON for LINK with no traffic, blinking indicates port is transmitting and receiving. 10/100: Per port, ON = 100Mbps; OFF = 10 Mbps (when LINK is made). www GarrettCom com Installation and User Guide (12/02) -
Page 34: Troubleshooting
However, if you are unsure of the procedures described in this section or if the Magnum P62-Series Hardened Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact GarrettCom Customer Support. -
Page 35: When Calling For Assistance
Return Material Authorization (RMA) Procedure All returns for repair must be accompanied by a Return Material Authorization (RMA) number. To obtain an RMA number, call GarrettCom Customer Service at (510) 438- 9071 during business hours in California or email to support@garrettcom.com. When calling, please have the following information readily available: Name and phone number of your contact person. -
Page 36: Shipping And Packaging Information
GarrettCom, Inc. warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of shipment by GarrettCom. During this warranty period, GarrettCom will repair or, at its option, replace components in the products that prove to be defective at no charge other than shipping and handling, provided that the product is returned pre-paid to GarrettCom.
