4.1.3 Function Display (3)

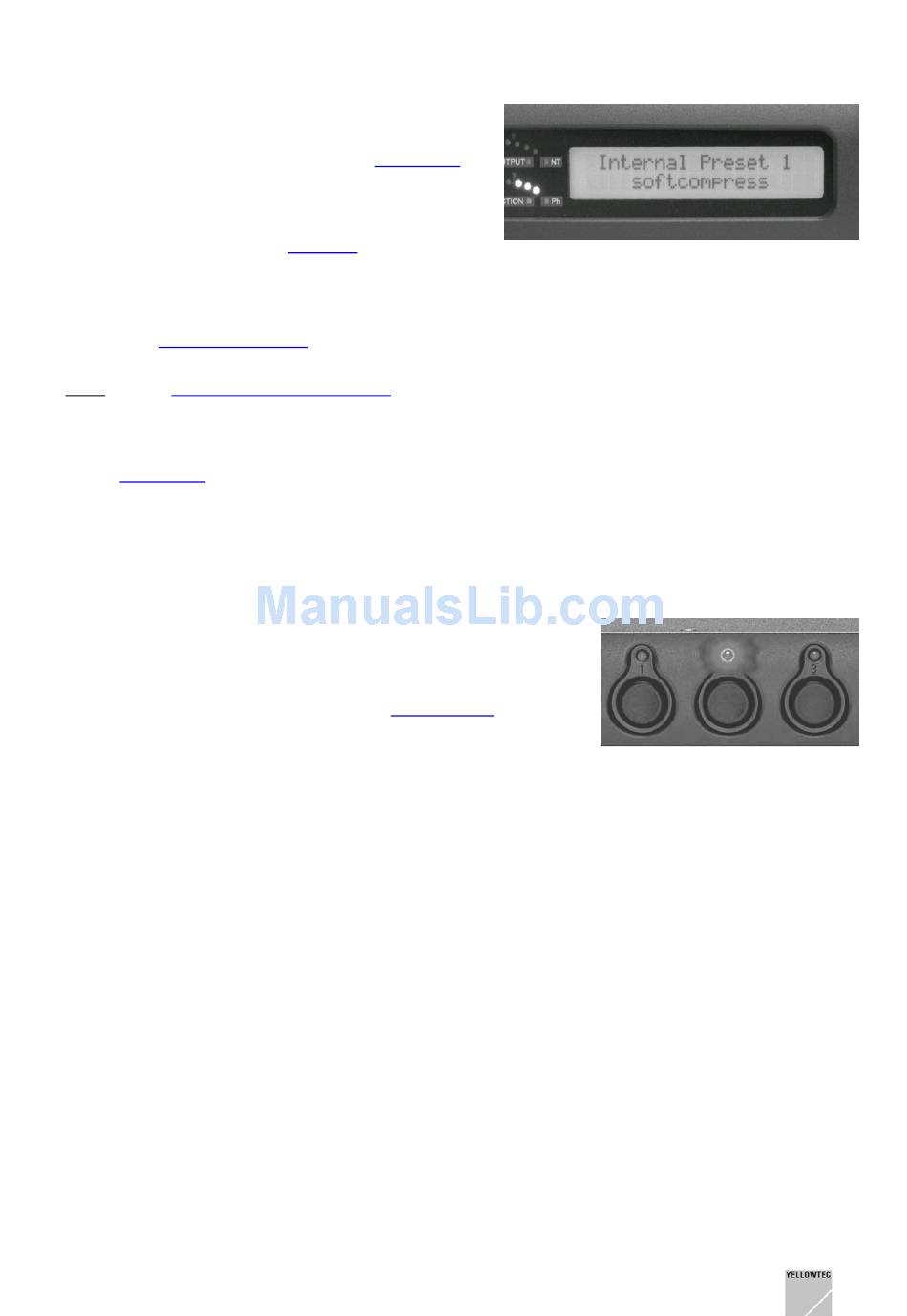

This display is designed to show the active preset as
well as the different menu options in the
If one of the internal presets is active, the upper line of
the display will show Internal Preset
number and the lower line will show its name. When a
SmartCard is inserted in the
display line will show the name of the card holder, while the
name of the internal presets still active can be viewed in the
lower line. At the same time, the LED of the active Preset button
will blink. If one of the presets on the SmartCard is loaded by
pressing a Preset Recall
show the name of the SmartCard preset now activated.
Note: Use the VIPcon configuration software
VIPdigital for an alternative option of SmartCard reading: Then a
SmartCard preset will be activated as soon as the Card in
inserted.
If the Enter Mode is activated by pressing the green Enter key,
the display is used for guiding the user through the different
options of this mode.

4.1.4 Preset Recall (4)

These three buttons are designed to select the active preset. If
no SmartCard is inserted, the buttons are used to load three
pre-defined presets. Which of the three presets of the VIPdigital
these are, can be defined freely, using the
item in the Enter mode (green button).
If a SmartCard inserted, use the
select the three presets stored on the card.
A red LED exists above each of the three buttons to indicate
that the respective preset is active. If a SmartCard is inserted or
removed, the LED of the preset loaded last will blink. In this way
the processor indicates that the current preset is still active, but
the new storage medium (internal memory or SmartCard) is
read out when the Preset Recall button is pressed next.
