Connectors for Optional
Temperature/Humidity
Sensor
RJ12
Link*
Input
Current
LED
Outlet
AC Power
Inlet
*Reserved for future use.

Safety Precautions

This section contains important safety and regulatory information that should be
reviewed before installation. For input and output current ratings, see Power Ratings
in
Technical
Only for installation and use in a Service Access Location in accordance with the following
installation and use instructions.
This equipment is designed to be installed on a dedicated circuit.
Dedicated circuit must have circuit breaker or fuse protection.
This product has been designed without a master circuit breaker or fuse to avoid becoming
a single point of failure. It is the customer's responsibility to provide adequate protection for
the dedicated power circuit. Protection of capacity equal to the current rating of the product
must be provided and must meet all applicable codes and regulations. In North America,
protection must have a 10,000A interrupt capacity.
The plug on the power supply cord shall be installed near the equipment and shall be easily
accessible.
Installation Orientation: SLPVxxxx-01 units are design to be installed in vertical orientation.
SecureLinx SLP Remote Power Manager

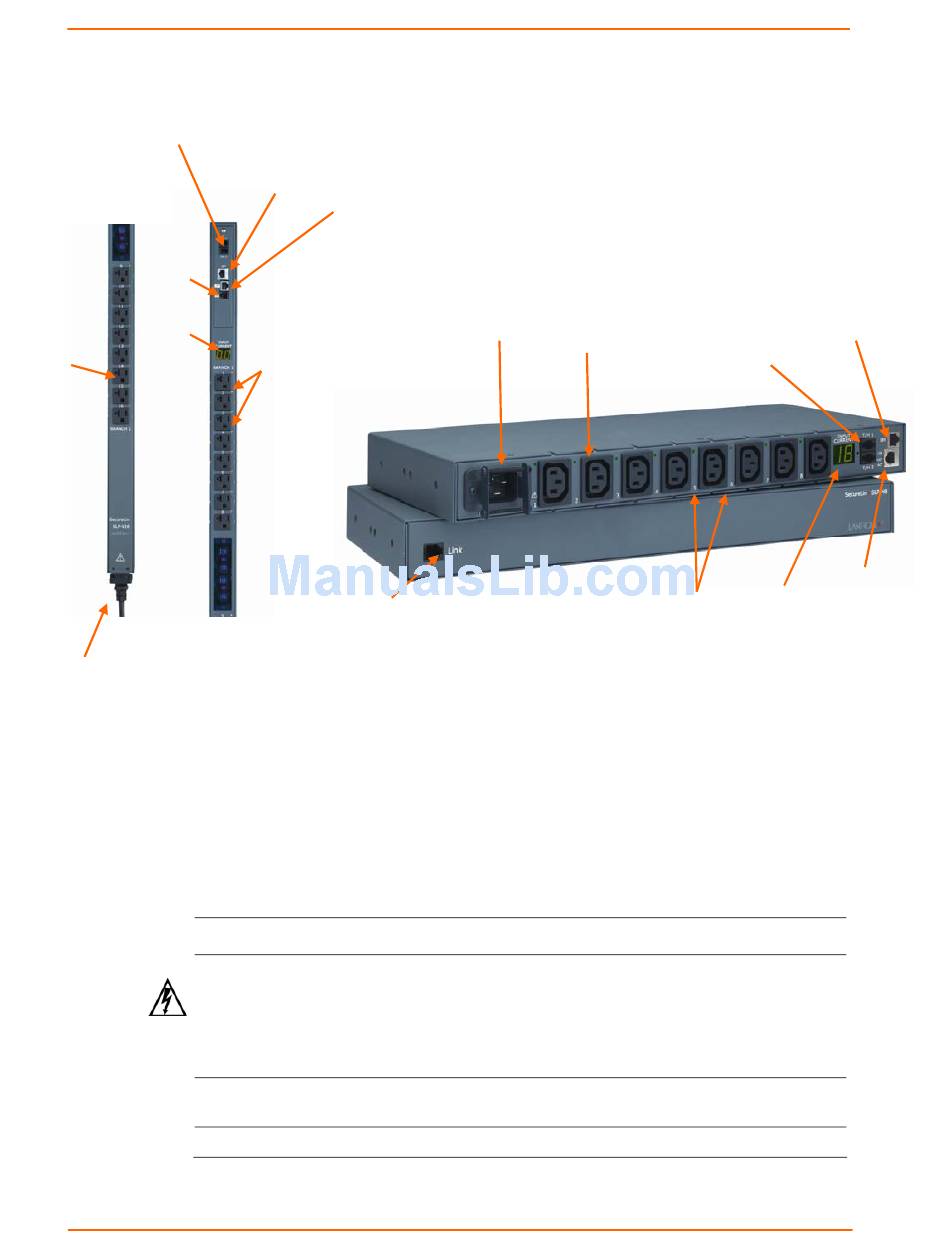

Figure 2-1. SLP Hardware View

10/100Base-T
Ethernet
(RJ45)
RS-232 Serial
(RJ45)
Output
Power
Status LED
RJ12 Link*
Specifications.
AC Power
Inlet
Outlet
2: Installation
RS-232 Serial
Connectors for Optional
Temperature/Humidity
Sensor
10/100Base-T
Output Input
Power Current
Status LED LED
10
(RJ45)
)
Ethernet
(RJ45)
