Network Role

The first and most important step prior to configuring the SLM-5650A is to
define its network role.
The SLM-5650A is a flexible network component able to perform different
functions depending on how it is used in a network. The role that is defined for
each SLM-5650A will determine what functions are available for each unit to
fill its role. Table 2-1 lists the network roles and the corresponding network
functions for which the SLM-5650A can be configured.
Network Role / Function
Hub Burst Controller providing STDMA Timing Maps
Hub SCPC Modem
Hub Switched Demodulator
Remote STDMA Modem
Remote SCPC Modem
Remote Mesh Demodulator (SHOD)
C h a p t e r 2 - Q u i c k S t a r t C o n f i g u r a t i o n
Figure 2-1
Table 2-1
SLM-5650A Network Roles and Functions
I n i t i a l C o n f i g u r a t io n

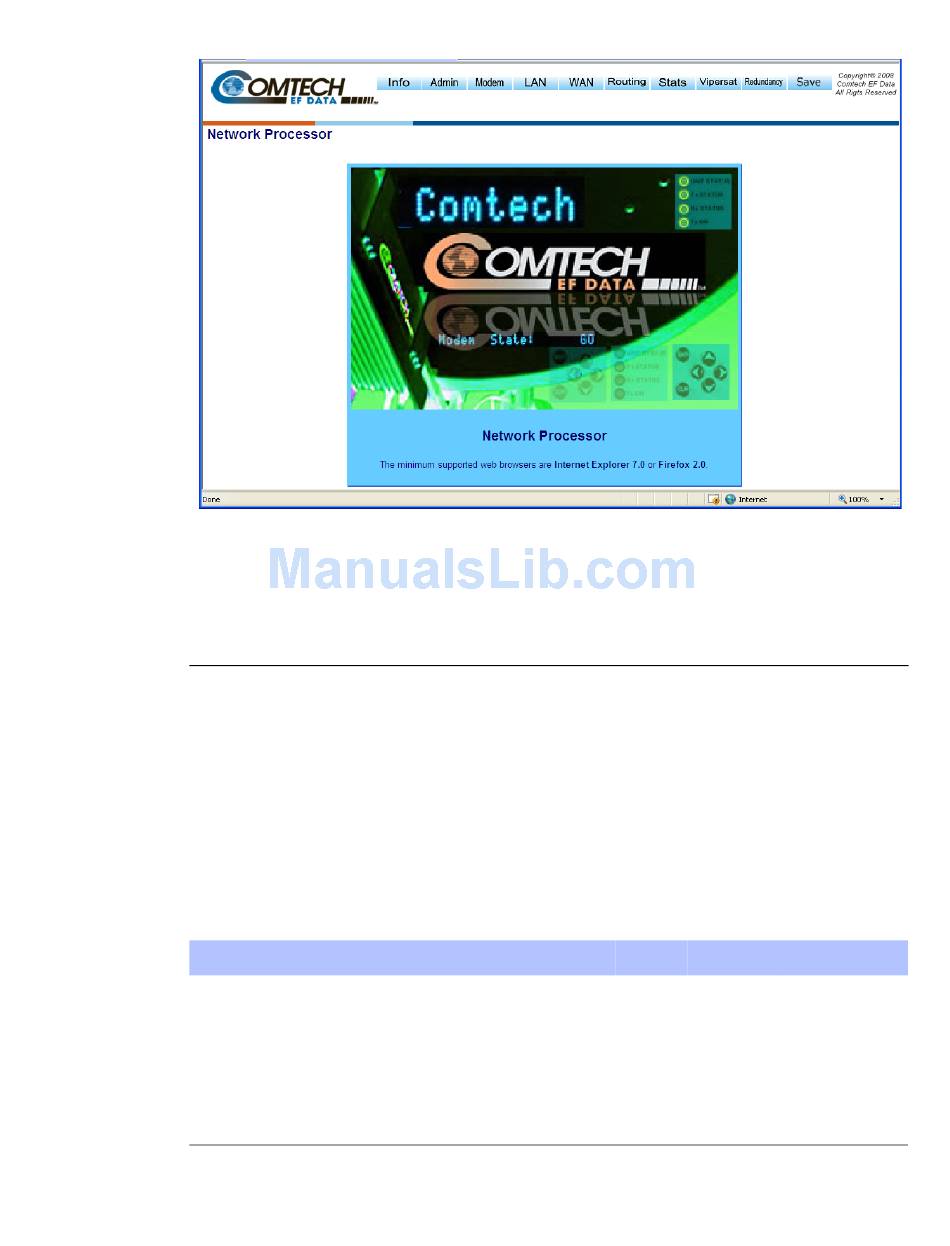

NP Splash Screen
Hub Remote
X
X
X
Expansion
X
X
X
X X
