V i p e r s a t C o nf i g u r a t i o n
Figure 3-10

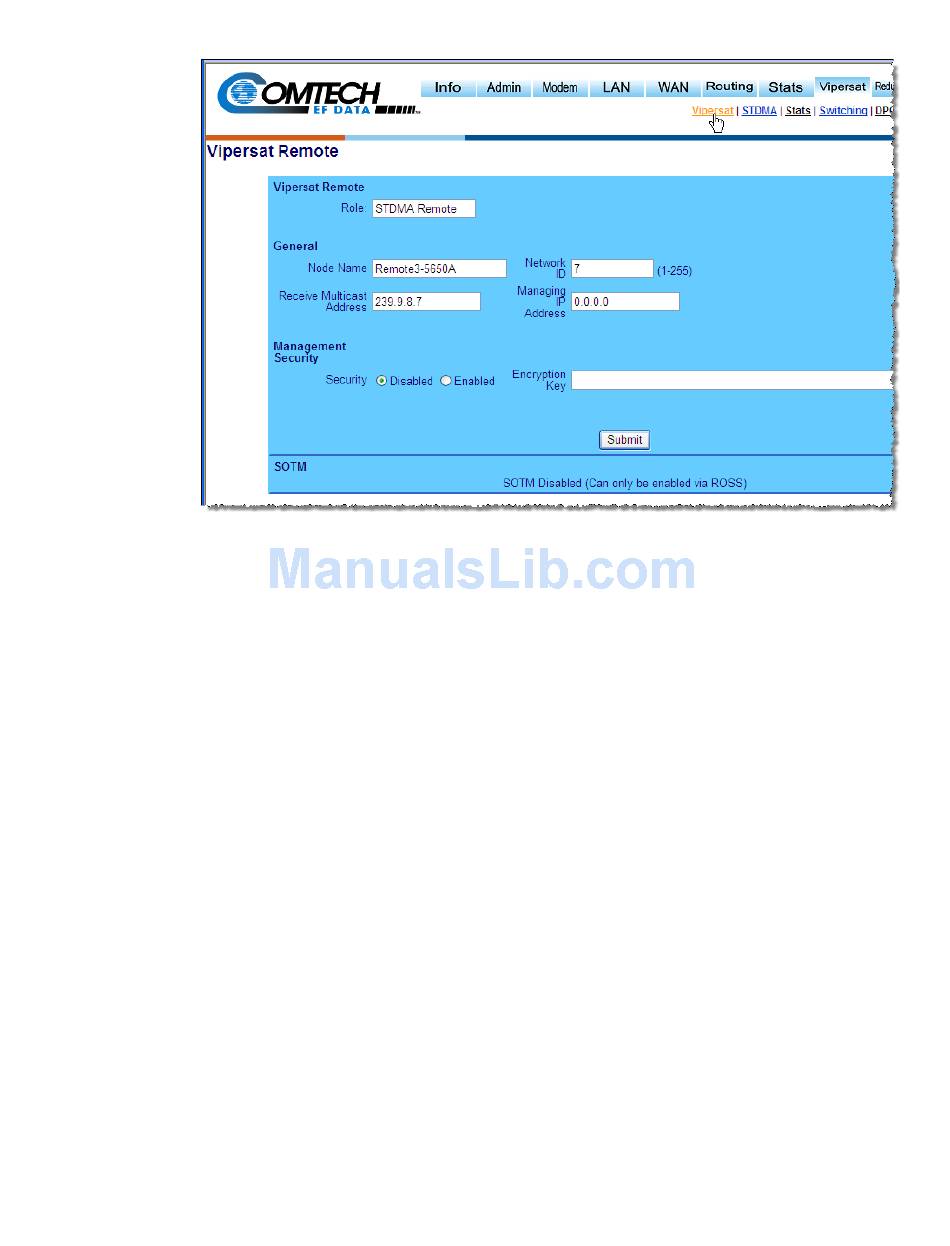

Figure 3-10 Vipersat Configuration Page (Remote)

Vipersat Role

The Role field is display only, reflecting the Vipersat Working Mode setting that
was configured earlier under Administration. The chosen mode is also identified
by the Vipersat label that is displayed in the upper left portion of the page—
"Vipersat Hub" in this example.

Node Name

The Node Name entry is used to assign a designator to the SLM-5650A that
will identify this unit within the network. Any combination of up to 22 charac-
ters can be entered.
This name is displayed within the VMS ViperView, the graphical network
management interface for Vipersat networks.

Network ID

The Network ID that is assigned to the unit defines to what network the target
SLM-5650A will belong. All units used in a common network will have the
same Network ID. Enter a value between the range of 0–255.
3-10 V i p e r s a t S L M - 5 6 5 0 A U s e r G u i d e
