3-22 Removal and Replacement Procedures

Removing an Expansion Board

To remove an expansion board:
1. Perform the steps in the "Service Preparations" as previously shown.
2. Remove the access panel.
3. Disconnect any cables from the expansion board.
4. Remove the expansion board retaining screw.
5. Hold the expansion board at each end and carefully pull up until the connectors pull free
from the slot.

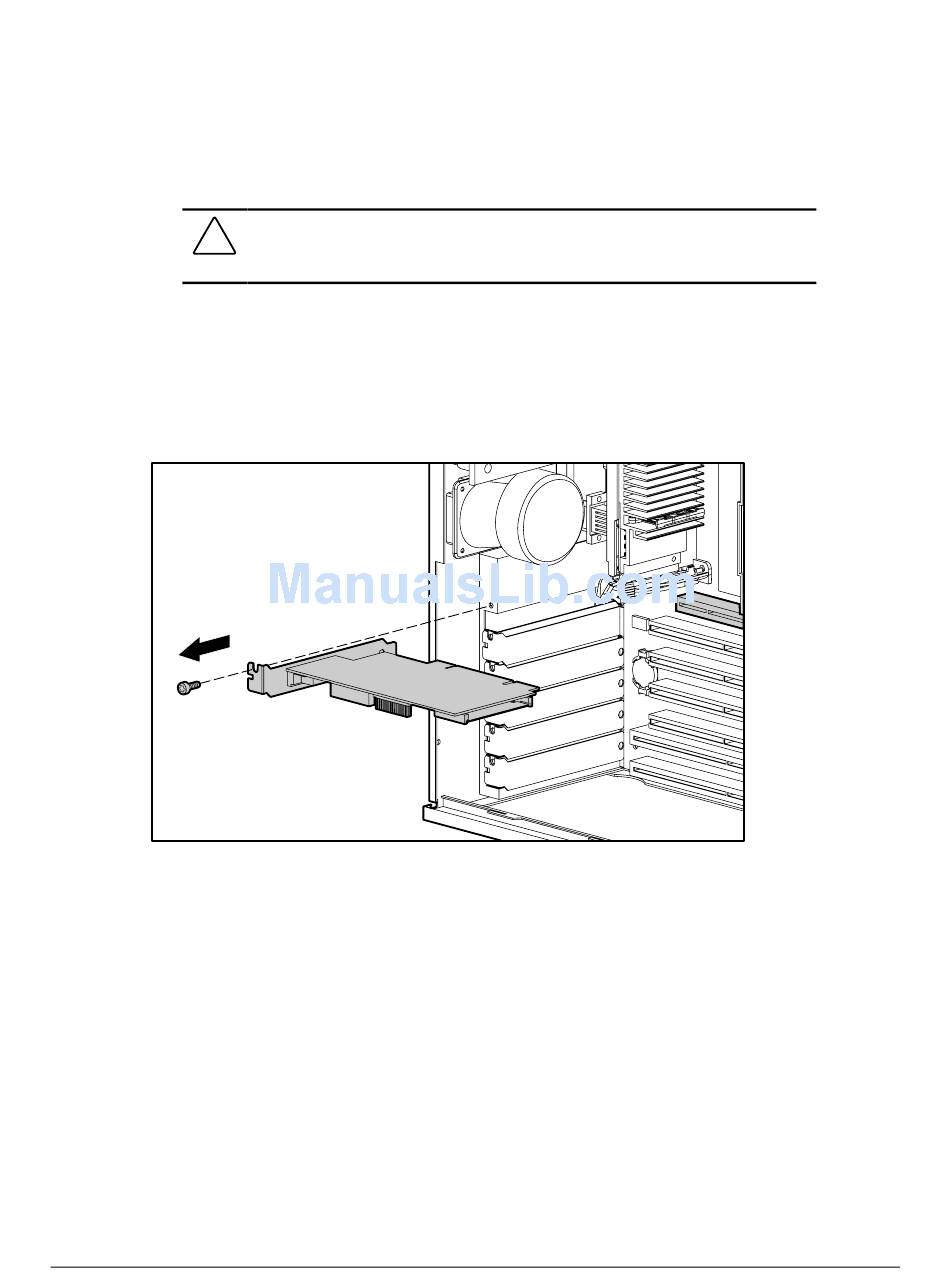

Figure 3-23. Removing an expansion board
To install an expansion board, remove the expansion slot cover and reverse the above procedure.
CAUTION: Before removing the access panel, ensure that the workstation is
turned off, all cables are disconnected from the back of the workstation, and the
power cord is disconnected from the grounded AC outlet.
