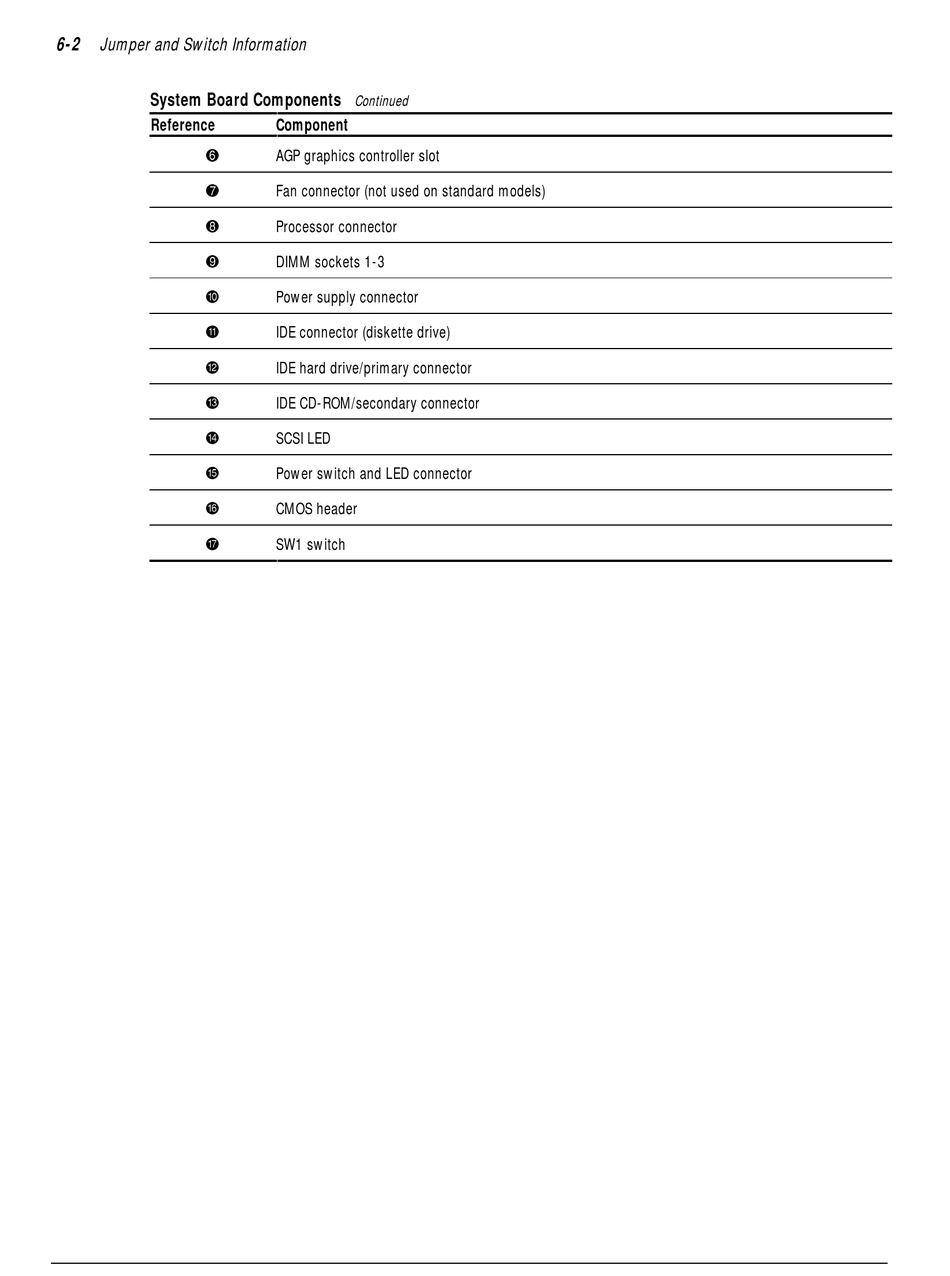

6-2
Jumper and Switch Information
System Board Components
Reference
6
7
8
9
:
;
<
=
>
?
@
A
Continued
Component
AGP graphics controller slot
Fan connector (not used on standard models)
Processor connector
DIMM sockets 1-3
Power supply connector
IDE connector (diskette drive)
IDE hard drive/primary connector
IDE CD-ROM/secondary connector
SCSI LED
Power switch and LED connector
CMOS header
SW1 switch
