3.5-Inch Hard Drive - Compaq AP200 Maintenance And Service Manual

3-10 Removal and Replacement Procedures

3.5-Inch Hard Drive

To remove a 3.5-inch hard drive:
1. Perform the steps in the "Service Preparations" section as previously shown.
2. Remove the access panel.
3. Remove the front bezel.
Disconnect the power 1 and data 2 cables from the back of the hard drive.
4.

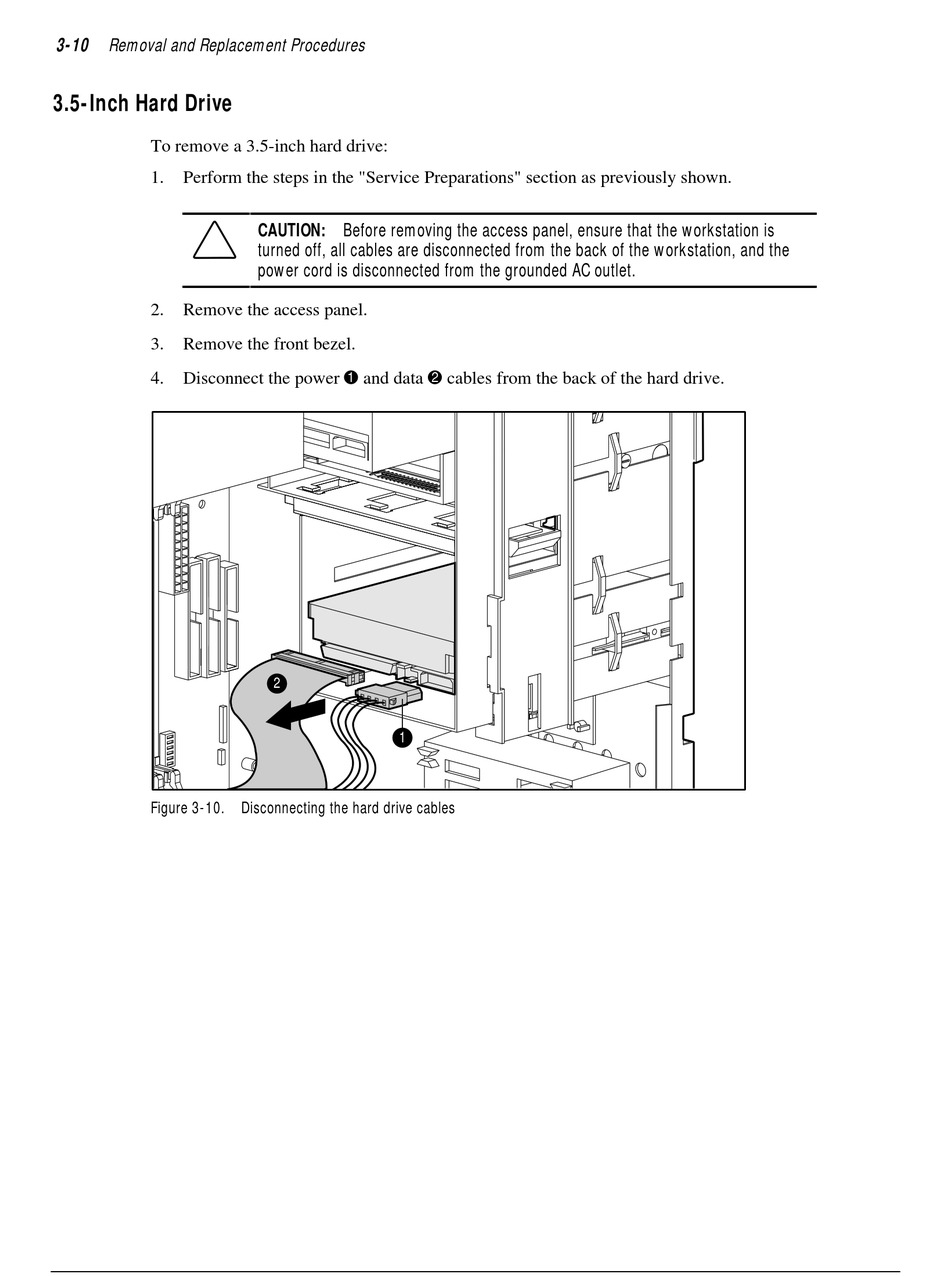

Figure 3-10. Disconnecting the hard drive cables
CAUTION: Before removing the access panel, ensure that the workstation is
turned off, all cables are disconnected from the back of the workstation, and the
power cord is disconnected from the grounded AC outlet.
2
1
