DIMM Installation

IMPORTANT: Before installing additional DIMMs, read the previous section, "Important
Guidelines for DIMM Installation."
The Compaq Professional Workstation AP200 supports unregistered 100-MHz ECC SDRAM
DIMMs. Additional DIMMs (16-, 32-, 64-, or 128-MB) are available to upgrade the memory.
The workstation has three DIMM sockets located on the system board that support up to a
maximum of 768 MB.
The following illustration identifies the physical location of all DIMM sockets. Note that
DIMMs do not need to be installed in pairs, and can be installed in any of the available DIMM
sockets.

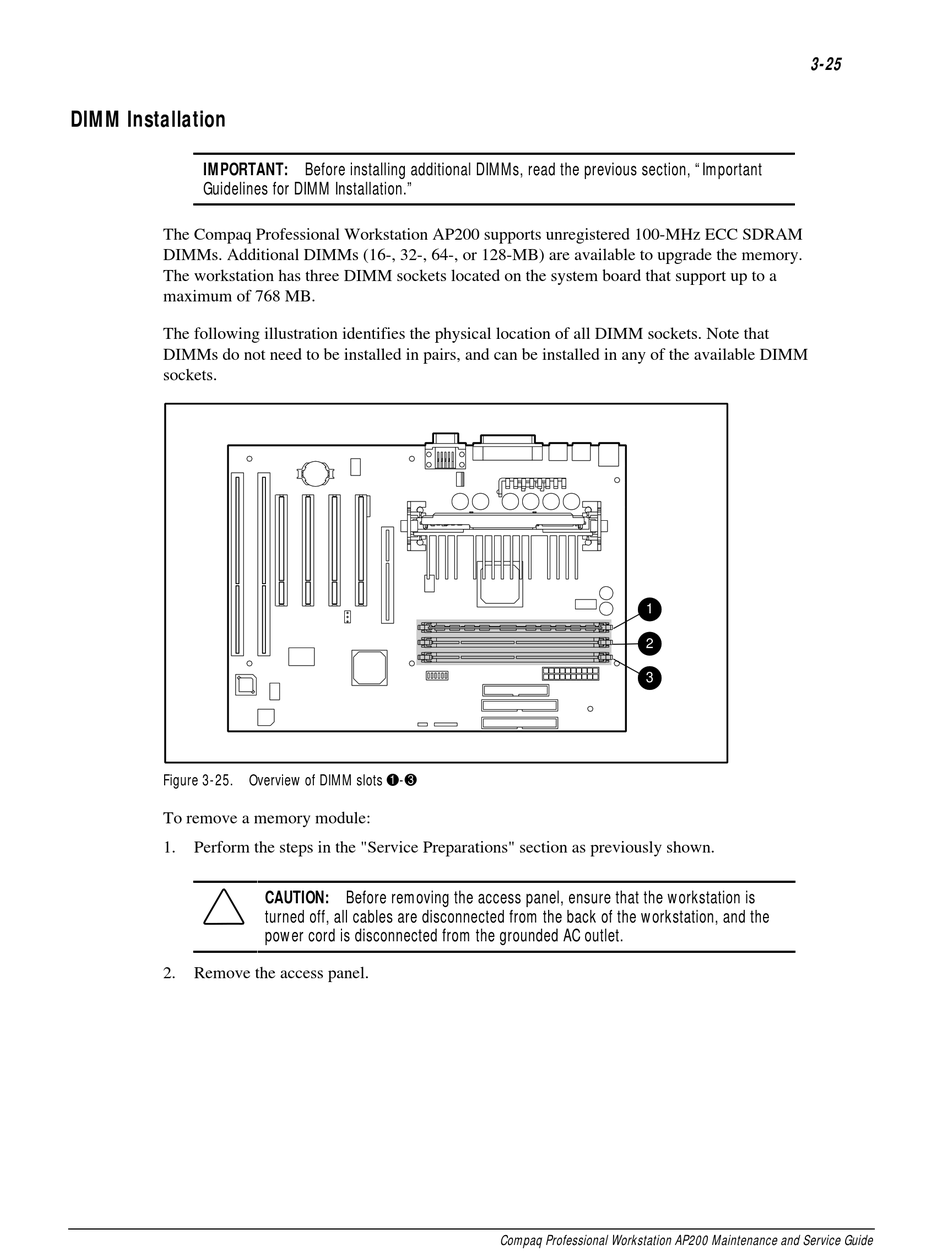

Figure 3-25. Overview of DIMM slots 1-3
To remove a memory module:
1. Perform the steps in the "Service Preparations" section as previously shown.
2. Remove the access panel.
CAUTION: Before removing the access panel, ensure that the workstation is
turned off, all cables are disconnected from the back of the workstation, and the
power cord is disconnected from the grounded AC outlet.
1
2
3
Compaq Professional Workstation AP200 Maintenance and Service Guide
3-25
