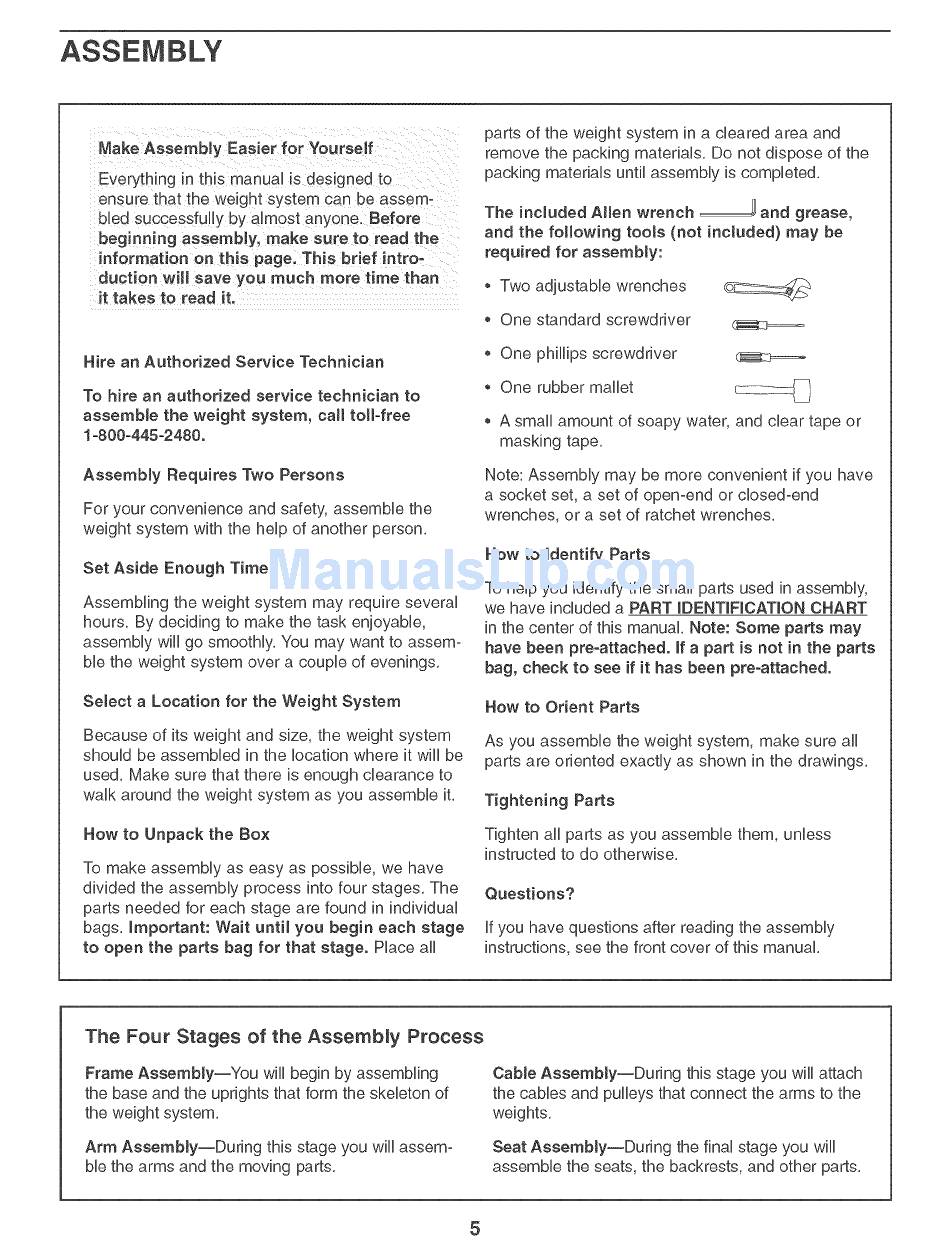

Make Assembly Easier for Yourself
Everything in this manual is designed to
ensure that the weight system can be assem-
bled successfully by almost anyone. Before
beginning assembly, make sure to read the
information on this page. This brief intro-
duction will save you much more time than
it takes to read it.
Hire an Authorized Service Technician
To hire an authorized service technician to
assemble the weight system, call toil-free
1-800-445-2480.
Assembly Requires Two Persons
For your convenience and safety, assembb the
weight system with the heUpof another person,
Set Aside Enough Time
Assembling the weight system may require severaU
hours. By deciding to make the task enjoyaMe,
assemMy wHU go smootHy. You may want to assem-
bb the weight system over a couple of evenings,
SeJect a Location for the Weight System
Because of its weight and size, the weight system
should be assembled in the location where it will be
used, Make sure that there is enough clearance to
walk around the weight system as you assemble it.
Now to Unpack the Box
To make assembly as easy as possible, we have
divided the assembly process into four stages, The
parts needed for each stage are found in individual
bags, Important: Wait until you begin each stage
to open the parts bag for that stage. Place all
parts of the weight system in a cleared area and
remove the packing materials, Do not dispose of the
packing materials until assembly is completed,
The included AHen wrench _ and grease,
and the following toots (not included} may be
required for assembly:
* Two adjustable wrenches
* One standard screwdriver
* One phillips screwdriver
* One rubber mallet
* A small amount of soapy water, and clear tape or
masking tape.
Note: Assembly may be more convenient if you have
a socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Now to identify Parts
To help you identify the small parts used in assembly,
we have included a PART IDENTIFICATION CHART
in the center of this manual. Note: Some parts may
have been pre-attached. If a part is not in the parts
bag, check to see if it has been pre-attached.
Now to Orient Parts
As you assemble the weight system, make sure all
parts are oriented exactly as shown in the drawings,
Tightening Parts
Tighten all parts as you assemble them, unless
instructed to do otherwise,
Questions?
if you have questions after reading the assembly
instructions, see the front cover of this manual.
The Four Stages of the Assembly Process
Frame Assembly--You wiii begin by assembling
the base and the uprights that form the skeleton of
the weight system,
Arm AssembJy--During this stage you wiii assem-
ble the arms and the moving parts.
Cable Assembly--During this stage you wiii attach
the cables and pulleys that connect the arms to the
weights,
Seat Assembly--During the final stage you wiii
assemble the seats, the backrests, and other parts,
