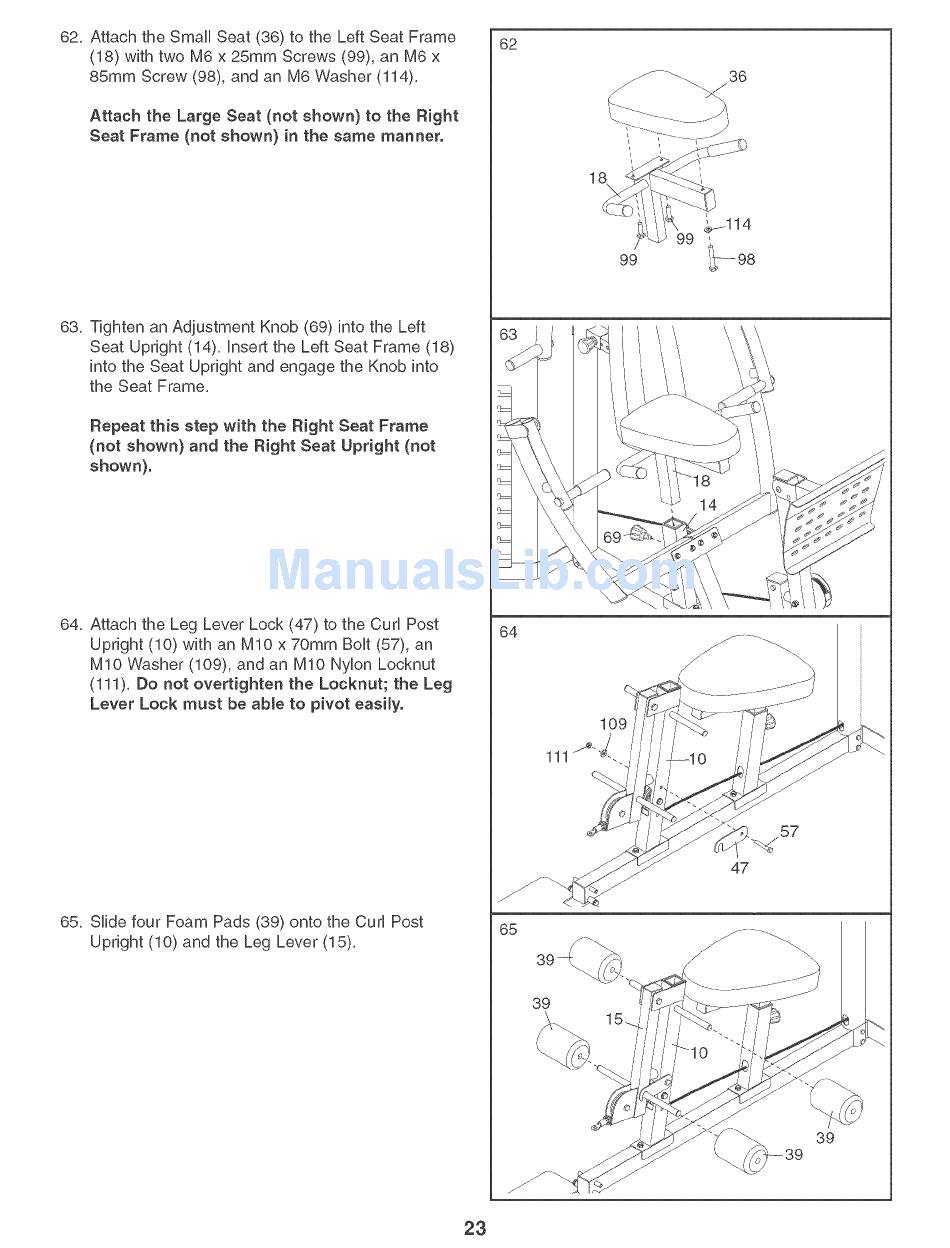

62, Attach the Small Seat (36) to the Left Seat Frame
(18) with two M6 x 25mm Screws (99), an M6 x
85mm Screw (98), and an M6 Washer (114),
Attach the Large Seat (not shown} to the Right
Seat Frame (not shown} in the same manner.
63, T_ghten an Adjustment Knob (69) into the Left
Seat Upright (14), Insert the Left Seat Frame (18)
into the Seat Upright and engage the Knob into
the Seat Frame,
Repeat this step with the Right Seat Frame
(not shown} and the Right Seat Upright (not
shown}.
64, Attach the Leg Lever Lock (47) to the Curl Post
Upright (10) with an MIO x 70mm BoUt(57), an
MIO Washer (109), and an MIO NyUonLocknut
(111), Do not overtighten the Locknut; the Leg
Lever Lock must be able to pivot easily.
65, SHde four Foam Pads (39) onto the CurU Post
Upright (10) and the Leg Lever (15),
62
64
65
111
39
_.. /36
99
\ \
109 /
/
/
57
47
/
39
