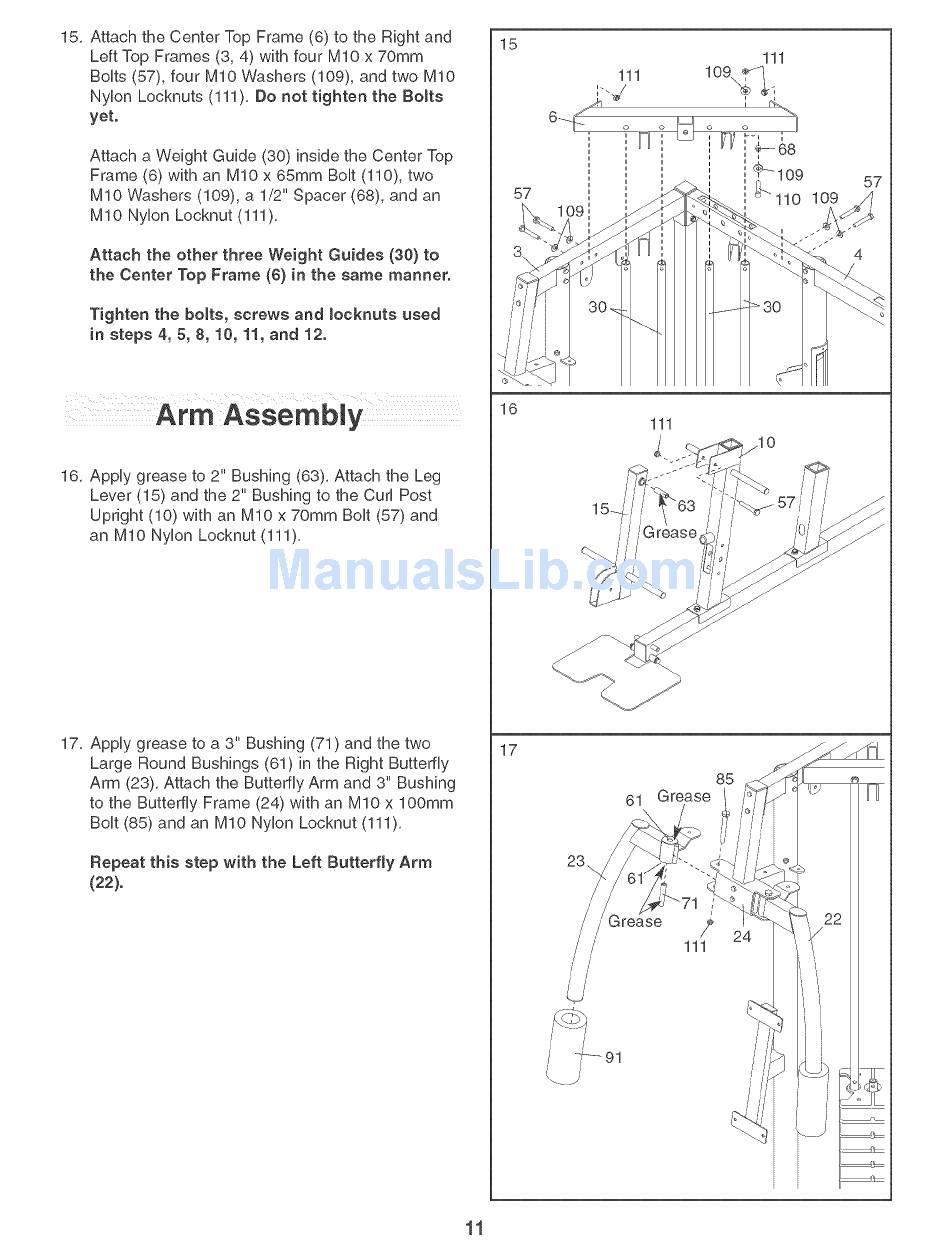

15, Attach the Center Top Frame (6) to the Right and
Left Top Frames (3, 4) with four M10 x 70mm
BoUts(57), four M10 Washers (109), and two M10
NyUon Locknuts (111), Do not tighten the BoJts
yet.
Attach a Weight Guide (30) inside the Center Top
Frame (6) with an M10 x 65mm BoUt(110), two
M10 Washers (109), a 1/2" Spacer (68), and an
M10 NyUonLocknut (111),
Attach the other three Weight Guides (30} to
the Center Top Frame (6} in the same manner.
Tighten the bolts, screws and [ocknuts used
in steps 4, 5, 8, 10, 11, and 12.
16, AppUy grease to 2" Bushing (63), Attach the Leg
Lever (15) and the 2" Bushing to the CurUPost
Upright (10) with an M10 x 70mm BoUt(57) and
an M10 NyUon Locknut (111),
17, AppUy grease to a 3" Bushing (71) and the two
Large Round Bushings (61) in the Right ButtedUy
Arm (23), Attach the ButtedUy Arm and 3" Bushing
to the Butterfly Frame (24) with an M10 x 100mm
BoUt(85) and an M10 NyUon Locknut (111),
Repeat this step with the Left Butterfly Arm
(22}.
15
57
16
17
111
_10
85
61 Grease ,'!!'
// /
/ !J
/ I
/ /
/ i
/ I
//
/ I
_rease
24
111
57
11
