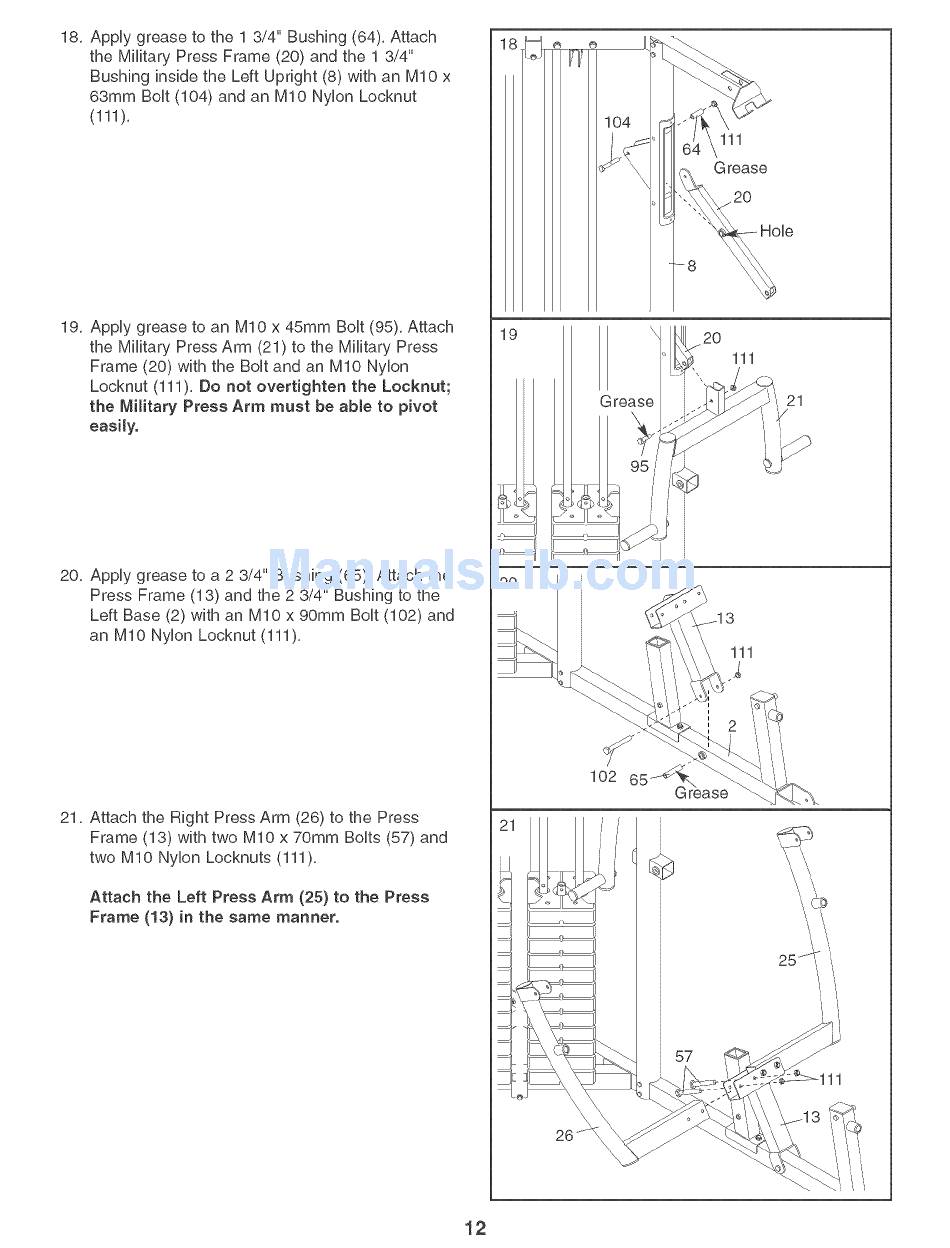

18. AppUy grease to the 1 3/4" Bushing (64). Attach
the MHitary Press Frame (20) and the 1 3/4"
Bushing inside the Left Upright (8) with an MIO x
63mm BoUt(104) and an MIO NyUon Locknut
(111).
19. AppUy grease to an MIO x 45mm BoUt(95). Attach
the MHitary Press Arm (21) to the MHitary Press
Frame (20) with the BoUtand an MIO NyUon
Locknut (111). Do not overtighten the Locknut;
the Mititary Press Arm must be able to pivot
easily.
20. AppUy grease to a 2 3/4" Bushing (65). Attach the
Press Frame (13) and the 2 3/4" Bushing to the
Left Base (2) with an MIO x 90mm BoUt(102) and
an MIO NyUon Locknut (111).
21. Attach the Right Press Arm (26) to the Press
Frame (13) with two MIO x 70mm BoUts(57) and
two MIO NyUon Locknuts (111).
Attach the Left Press Arm (25) to the Press
Frame (13} in the same manner.
19
111
2O
\
111
Grease
21
111
12
