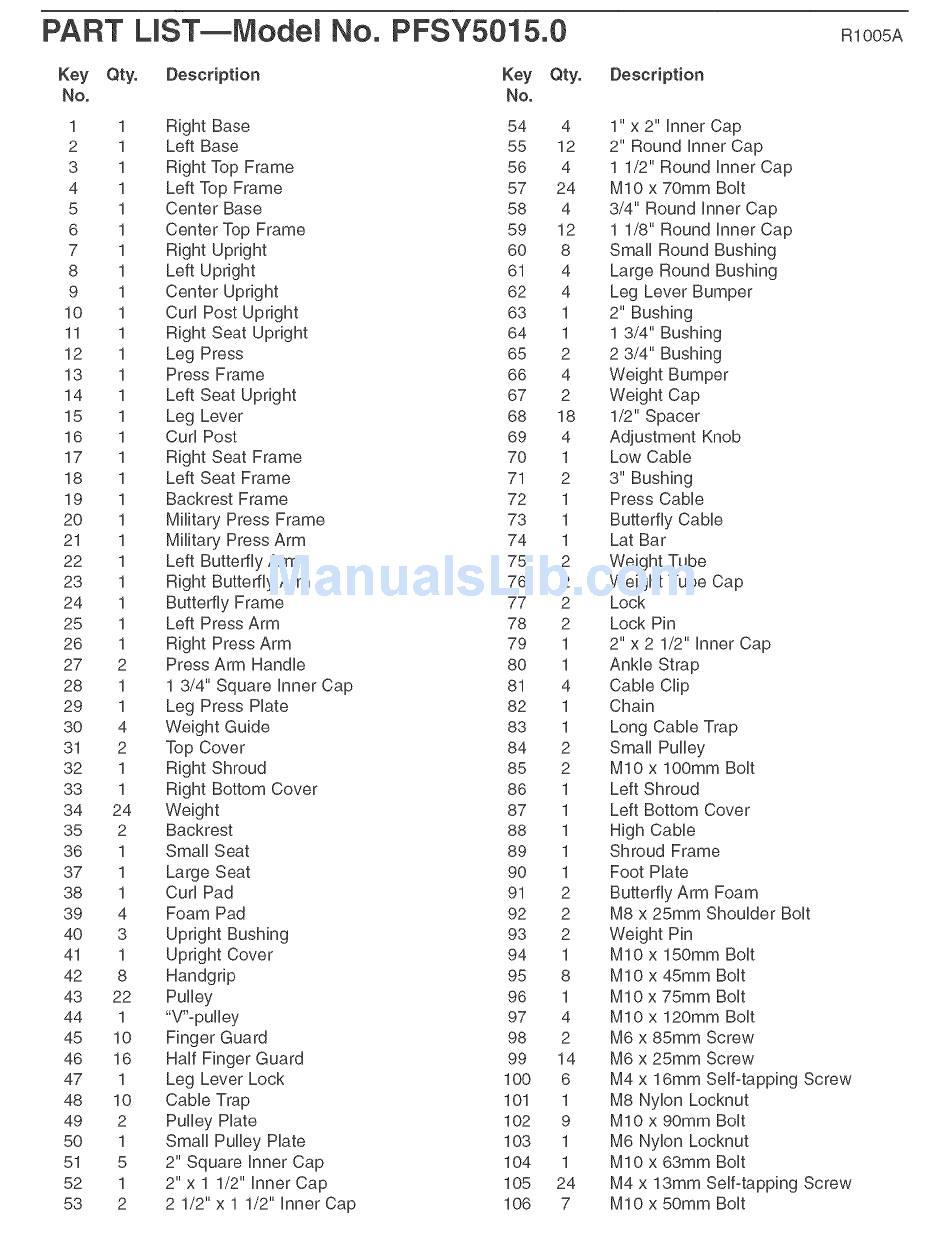

PART LlST Model No. PFSY5015.0
RIOO5A
Key Qty. Description Key Qty.
No. No.
1 1 Right Base 54 4
2 1 Left Base 55 12
3 1 Right Top Frame 56 4
4 1 Left Top Frame 57 24
5 1 Center Base 58 4
6 1 Center Top Frame 59 12
7 1 Right Upright 60 8
8 1 Left Upright 61 4
9 1 Center Upright 62 4
10 1 CurU Post Upright 63 1
11 1 Right Seat Upright 64 1
12 1 Leg Press 65 2
13 1 Press Frame 66 4
14 1 Left Seat Upright 67 2
15 1 Leg Lever 68 18
16 1 CurU Post 69 4
17 1 Right Seat Frame 70 1
18 1 Left Seat Frame 71 2
19 1 Backrest Frame 72 1
20 1 MHitary Press Frame 73 1
21 1 MHitary Press Arm 74 1
22 1 Left Butterfly Arm 75 2
23 1 Right Butterfly Arm 76 2
24 1 Butterfly Frame 77 2
25 1 Left Press Arm 78 2
26 1 Right Press Arm 79 1
27 2 Press Arm HandUe 80 1
28 1 1 3/4" Square UnnerCap 81 4
29 1 Leg Press Hate 82 1
30 4 Weight Guide 83 1
31 2 Top Cover 84 2
32 1 Right Shroud 85 2
33 1 Right Bottom Cover 86 1
34 24 Weight 87 1
35 2 Backrest 88 1
36 1 Small Seat 89 1
37 1 Large Seat 90 1
38 1 CurU Pad 91 2
39 4 Foam Pad 92 2
40 3 Upright Bushing 93 2
41 1 Upright Cover 94 1
42 8 Handgrip 95 8
43 22 PuHey 96 1
44 1 "V'-puHey 97 4
45 10 Finger Guard 98 2
46 16 Haft Finger Guard 99 14
47 1 Leg Lever Lock 100 6
48 10 CaMe Trap 101 1
49 2 Pulley Hate 102 9
50 1 Small Pulley Hate 103 1
51 5 2" Square Unner Cap 104 1
52 1 2" x 1 1/2" UnnerCap 105 24
53 2 2 1/2" x 1 1/2" UnnerCap 106 7
Description
1" x 2" UnnerCap
2" Round Inner Cap
1 1/2" Round Inner Cap
MIO x 70mm Bolt
3/4" Round Inner Cap
1 1/8" Round Inner Cap
Small Round Bushing
Large Round Bushing
Leg Lever Bumper
2" Bushing
1 3/4" Bushing
2 3/4" Bushing
Weight Bumper
Weight Cap
1/2" Spacer
Adjustment Knob
Low Cable
3" Bushing
Press Cable
Butterfly Cable
Lat Bar
Weight Tube
Weight Tube Cap
Lock
Lock Pin
2" x 2 1/2" Inner Cap
Ankle Strap
Cable Clip
Chain
Long Cable Trap
Small Pulley
MIO x lOOmm Bolt
Left Shroud
Left Bottom Cover
High Cable
Shroud Frame
Foot Plate
Butterfly Arm Foam
M8 x 25mm Shoulder Bolt
Weight Pin
MIO x 150mm Bolt
MIO x 45mm Bolt
MIO x 75mm Bolt
MIO x 120mm Bolt
M6 x 85mm Screw
M6 x 25mm Screw
M4 x 16mm Self-tapping Screw
M8 Nylon Locknut
MIO x 90mm Bolt
M6 Nylon Locknut
MIO x 63mm Bolt
M4 x 13mm Self-tapping Screw
MIO x 50mm Bolt
