CyberData 930274L Operation Manual page 19

2.2.2.2 V2 Speaker with Auxiliary Speaker Connection
In Figure
the total speaker wattage is the same, by connecting a low cost analog speaker, additional coverage
can be realized.
Speaker
AUX POWER (+)
(+12VDC @ 1A)
AUX POWER (-)
RELAY COM
RELAY NO
+5V OUT
Operations Guide
2-5, the V2 Speaker supports an amplified audio output for a second analog speaker. While
Caution
Operational Note: Because of the limitations of PoE power, when running the V2
Speaker with a second auxiliary speaker, the analog or digital volume level setting
must not exceed a setting of 6.
GENERAL ALERT

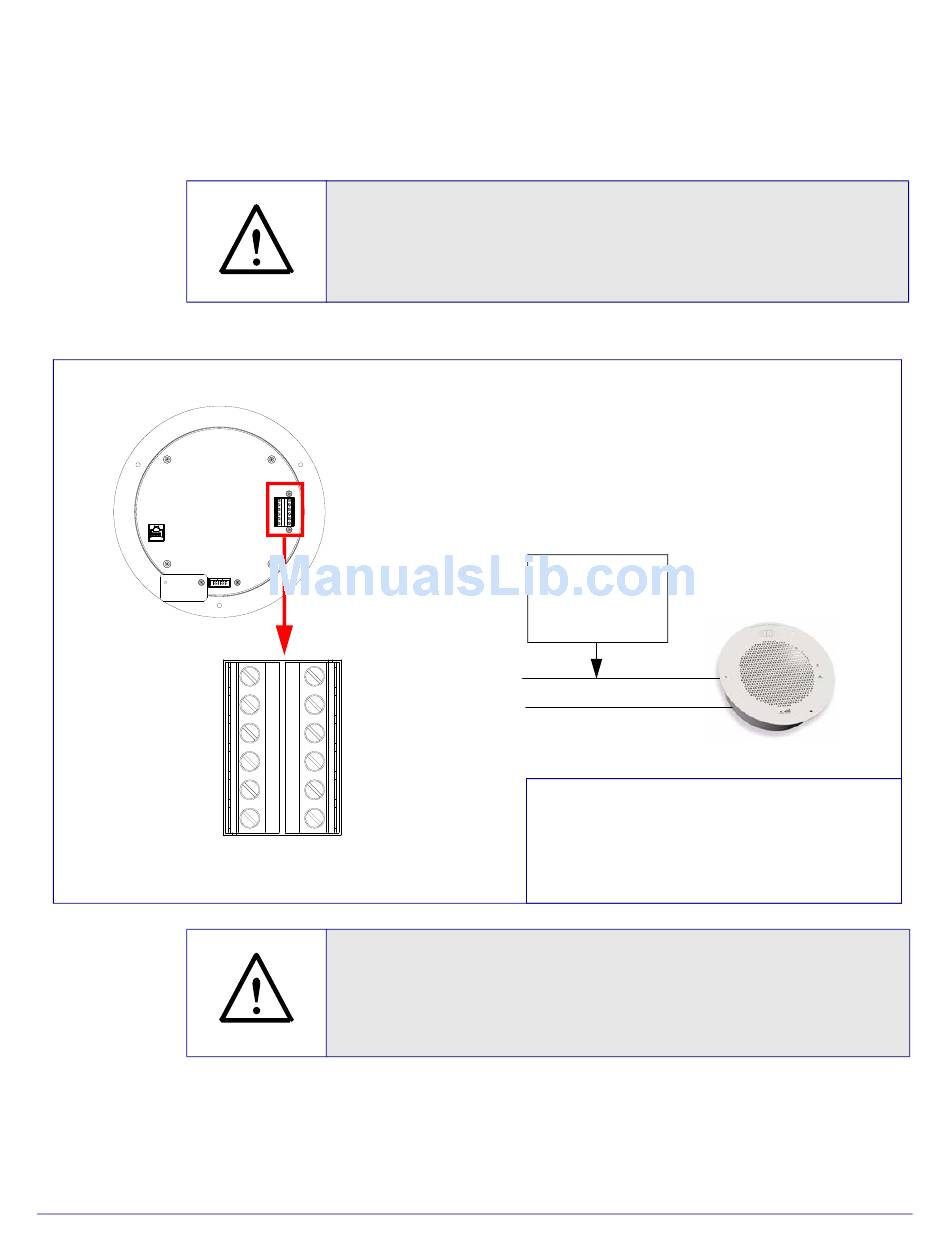

Figure 2-5. V2 Speaker with Auxiliary Speaker Connection
AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT (-)
LINE OUT (+)
J9
J10
Caution
Operational Note: You must not use the V2 Speaker in combination with both a
Clock Kit and an auxiliary speaker. The V2 Speaker may only be used separately
with an auxiliary speaker or used separately with a Clock Kit. See
GENERAL ALERT
"Clock Kit with Extra Speaker Connection is NOT ALLOWED."
High-purity copper
16-gauge wire and
a maximum length
of 20 feet
*When using the second speaker connection,
the analog volume control needs to be disabled.
*Because of the limitations of PoE power,
when running the V2 Speaker with a second auxiliary
speaker, the analog or digital volume level setting
must not exceed a setting of 6.
930274L
Installing the VoIP V2 Speaker
Device Configuration
8 Ohm Auxiliary Speaker
(Part #011120, RAL 9002)
(Part #011121, RAL 9003)
Figure 2-6,
CyberData Corporation
12
