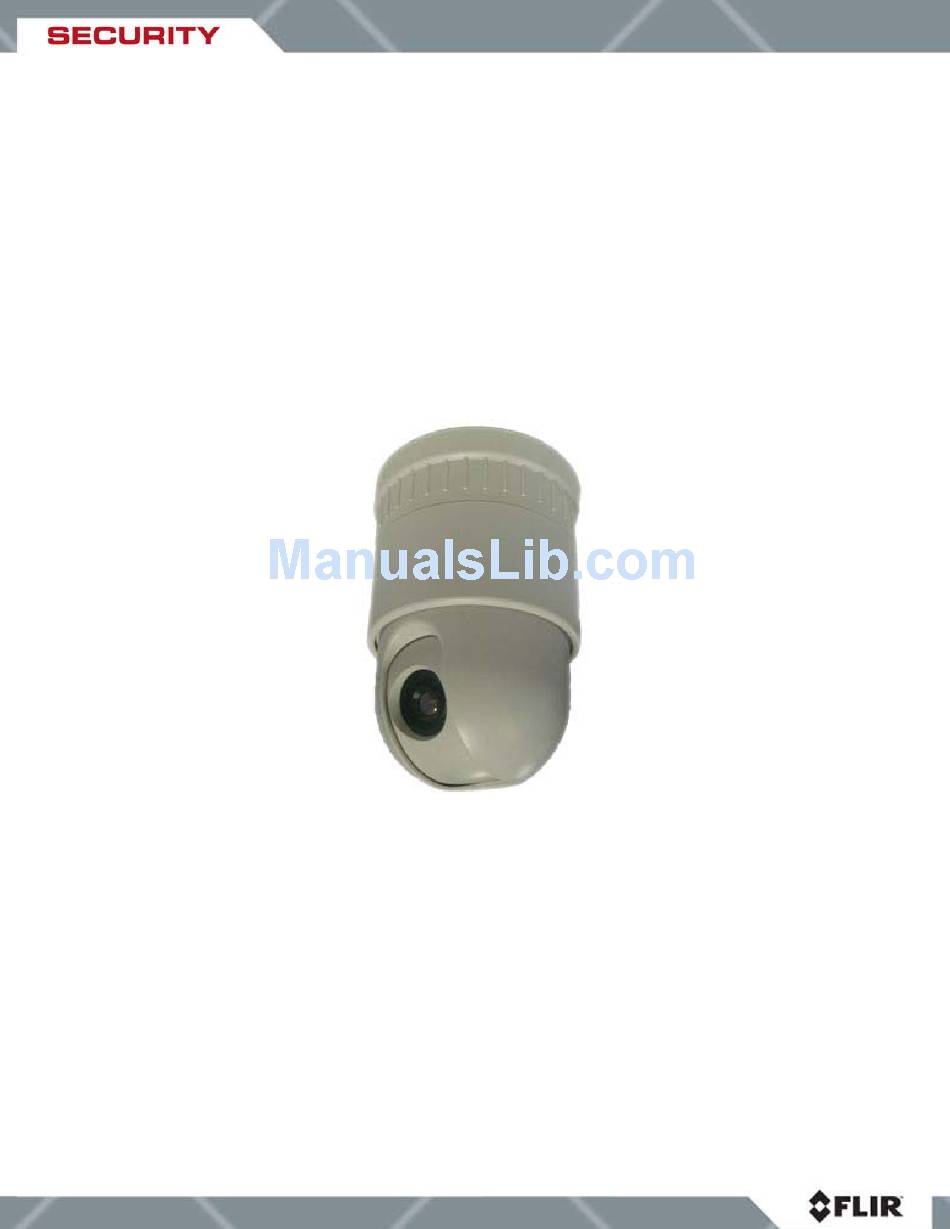

- Page 1 FLIR Systems, Inc. 70 Castilian Drive Goleta, CA 93117 Phone: 888.747.FLIR (888.747.3547) International: +1.805.964.9797 www.flir.com 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 1 of 33...
-
Page 2: Flir Systems Inc
COPYRIGHT Copyright © 2008 by FLIR Systems, Inc. All rights reserved. This publication, or any parts thereof, may not be reproduced in any form without the express written permission of FLIR Systems, Inc. -
Page 3: Table Of Contents
6. Using Your D-Series Camera ....................25 6.1. IR Imaging Views ......................25 6.2 Pelco D and Keyboard Commands ..................26 7. Troubleshooting ........................27 7.1 Caring for your FLIR D-Series Camera ................27 8. Performance Specifications ....................28 8.1 FLIR D-Series Camera Dimensions .................29 8.2 Default Settings .......................30 8.3 Baud Rate Settings ......................31... -
Page 4: Legal Considerations
List of Figures Figure 1: Differences in imagery obtained with a standard CCTV camera (left) and the FLIR D- Series Camera (right) ......................... 7 Figure 2: Types of installation …………………………………………………………………………..8 Figure 3: D-Series external components ………………………………………………………………9 Figure 4: D-Series camera wiring connections ................12 Figure 5: Installation templates (not to scale) ................14... -
Page 5: Warnings And Cautions
8. Do not install or operate the device in locations that contain flammable and/or explosive objects. 9. Do not try to repair the unit by yourself. FLIR Systems shall not be responsible for any problem caused by unauthorized amendment or repairing. -
Page 6: Introduction
(NTSC or PAL) with full pan, tilt and zoom control. Designed specifically for indoor use, the FLIR D-Series Camera is ideal for demanding security surveillance installations at airports, railway stations, supermarkets, judicial buildings, prisons, banks, casinos, etc. -
Page 7: Pan/Tilt Mechanism
Figure 1 shows the limitations of images obtained with a standard CCTV camera and the advantages provided by the D-Series camera in extreme conditions. Figure 1: Differences in imagery obtained with a standard CCTV camera (left) and the FLIR D- Series Camera (right) 2.2 Pan/Tilt Mechanism... -
Page 8: Mounting Options
• Invert Image 2.4 Mounting Options The FLIR Thermal Camera is designed to be mounted in the ceiling. The camera is ordinarily mounted with the main camera assembly above the ceiling, with only the camera dome and trim ring exposed. During the installation, the main camera assembly is temporarily removed from the camera housing enclosure. -
Page 9: Getting Started
IR Imager (Photon) Dome Trim ring Spring Clip Electrical Connections Figure 3: D-Series external components NOTE: if any specified materials are missing or damaged, please contact your FLIR dealer 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 9 of 33... -
Page 10: Installation Requirements
3. The installation materials must be capable of supporting well in excess of the weight of the product and accessories. FLIR Systems, Inc. is not responsible for damage or injury that results from an improperly installed camera. -
Page 11: Power On Self-Test
(pan/tilt or other operations) until the self-test process is complete. NOTE: if you encounter problems with the self-check process, please refer to the Troubleshooting section for recommendations. 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 11 of 33... -
Page 12: D-Series Camera Connections
WARNING! Make sure the Dome Camera and any other related equipment is powered off during installation. The FLIR Thermal Camera is designed to be mounted on the ceiling. A typical installation uses the supplied housing enclosure, which conceals the main body of the camera in the ceiling, showing only the camera dome. - Page 13 Cut an approximately 9 ½ “ diameter hole in the surface where the dome is to be Step 1 mounted using the template provided with the SR-Series camera. A sketch (not to scale) is shown in Figure 5. Cutouts 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 13 of 33...
-
Page 14: Figure 5: Installation Templates (Not To Scale)
Turn the trim ring on the unit counter-clockwise to remove it, as shown below. Trim ring Step 3 Secure the mounting board and security chain to the bottom of the dome. 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 14 of 33... - Page 15 Step 5 cutout and the two small plastic standoffs surrounding the mounting screw rest firmly against the ceiling board (they should be flush with the ceiling board). 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 15 of 33...
-
Page 16: Figure 6: Proper Alignment Of Standoffs For Installation Of Dome Enclosure
Slide the trim ring into the slots on the dome edge and turn clockwise to tighten it. Step 7 Figure 7: Ring installation (left); D-Series Dome camera installed in ceiling (right) 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 16 of 33... -
Page 17: Removing The Main Camera Assembly From The Housing Enclosure
Reach inside and lift the catch on the bottom of the inner cylinder. Push down on the cylinder and turn the cylinder counter-clockwise to release it, then pull the cylinder up. 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 17 of 33... - Page 18 You may remove it as well. A safety cable attaches the cylinder to the cylinder bottom and is designed to keep the cylinder from falling off if the maintenance person were to accidentally drop it. 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 18 of 33...
-
Page 19: Steps To Removing The Camera Base For Installation
4.3. Steps to install the base cover 1. To install the base, align the cutout on the base with the pull out tab 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 19 of 33... - Page 20 2. Turn the base clockwise and make sure the locking mechanism engages (you will hear a clicking sound when the locking mechanism sets in place. 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 20 of 33...
-
Page 21: Hard Ceiling Installation (Pendant Mount)
Attach the base to the ceiling using the three screws and wall anchors provided. The wires go up through the central hole in the camera base. Ceiling mounting holes Step 3 Attach the safety cable and ribbon cable. 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 21 of 33... - Page 22 Failure to properly engage the locking mechanism may cause the dome to fall from the base, resulting in damage to the dome and base, and possible personal injury. 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 22 of 33...
-
Page 23: Configuration Options
5. Configuration Options The D-Series Camera comes with defaults set (see Section 5.4: Default Settings). However, you can make the following modifications to the FLIR D-Series Camera: • Change the electronic wiring connections • Change the dip switch settings on the PC board... -
Page 24: Changing Dip Switch Settings
The baud rate for communication with the D-Series camera using the Pelco-D protocol can be set to 2400, 4800, 9600, or 19200. The factory default is 2400, which is the baud rate used by 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 24 of 33... -
Page 25: Rs-485 Termination Resistor Dip Switch
The thermal imager inside the camera does not sense light like conventional cameras; it senses heat or temperature differences. As you experiment with the system during daylight and 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 25 of 33... -
Page 26: Pelco D And Keyboard Commands
Repeat to Non-Invert 24 Preset 4 Aux On Set Power-up Settings 14 Preset 4 Aux Off Restore Factory White Hot, Zoom 1X, AGC Default Settings Default, Not Inverted 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 26 of 33... -
Page 27: Troubleshooting
Table 3: Troubleshooting Guidelines 7.1 Caring for your FLIR D-Series Camera For lens cleaning use the following materials: • Optical-grade tissue (e.g., Edmund Industrial Optics part number 52105 or any similar product) • Pure water (de-ionized or other) 444-00001-00-10 Revision 110 Copyright ©... -
Page 28: Performance Specifications
70g shock pulse, 11ms half-sine profile Vibration 4.3 g ms random vibration for 8 hours (three axes) Operational Temperature C to +50 Default Settings Baud Rate 2400 Baud Pelco ID Address 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 28 of 33... -
Page 29: Flir D-Series Camera Dimensions
15” x 15” x 19” (38 cm x 38 cm x 48 cm) Weight 10.7 lbs (4.86 kg) Table 4: Performance Specifications 8.1 FLIR D-Series Camera Dimensions 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 29 of 33... -
Page 30: Default Settings
Figure 10: FLIR D-Series Camera Dimensions (in mm) 8.2 Default Settings The FLIR D-Series Camera comes with a default address of 001 (Table 6), a Baud rate of 2400, and default Pelco-D auxiliary command settings (Table 2). NOTE: If you decide to change the settings, FLIR recommends making the change before installation. -
Page 31: Baud Rate Settings
8.3 Baud Rate Settings The FLIR D-Series Camera comes with the Baud rate set to 2400. Use the table below to set the Baud rate using S3, bits 5 and 6. Baud Rate 2400 4800 9600 19200 Table 6: Baud Rate Settings 9. -
Page 32: Hard Ceiling Mounting Template
9.2 Hard Ceiling Mounting Template Figure 12: Hard Ceiling Mounting Template (not to scale) 444-00001-00-10 Revision 110 Copyright © 2008 FLIR Systems, Inc. Page 32 of 33... -
Page 33: Fundamentals Of Infrared
