Wired Control Input
Optional wired keypad
Power Requirements!
Voltage range (auto switching)
Line frequency
Max. inrush current
Max. current rating
Max. power consumption
Line cord rating
Lamp!
Type
Adjustment range
Operating angle
Warm up period to full brightness
Rated life
IR Control!
Typical range
IR carrier frequency (subcarrier modulated)
Battery type (4 required)
Battery life
Size & Weight!
Size (W x L x H of product only, no lens)
Weight of product, no lens
Shipping weight
Safety! C.S.A. C22.2.950 (M94), approved to U.L. 1950 by NRTL (Semko) EN60950
EMI!
47CFR 2&15 (FCC) Class B - U.S. - Conducted and Radiated Emissions Stds.
CRC 1374 (DOC) Class B - Canadian - Conducted and Radiated Emissions Stds.
Emissions per EN50081-1. Immunity per EN50082-1.
Input level
3-pin XLR connector
High 2.0V min., Low 0.7V max.
100 to 240 VAC continuous
50 - 60 Hz nominal
60 amps
11.5 amps @ 100V
5.5 amps @ 220V
1200 watts
High current, 13 amp
700 watt Xenon short arc, open
450-700 watts
any vertical angle, ±15° horizontal
5 minutes
1000 hours to half intensity
100', line-of-sight
336 kHz
AA 1.5 V (Alkaline cells)
1 yr. Shelf, 1 mo. continuous use
28.90" x 31.60" x 13"
162 lbs.
NA
5-3

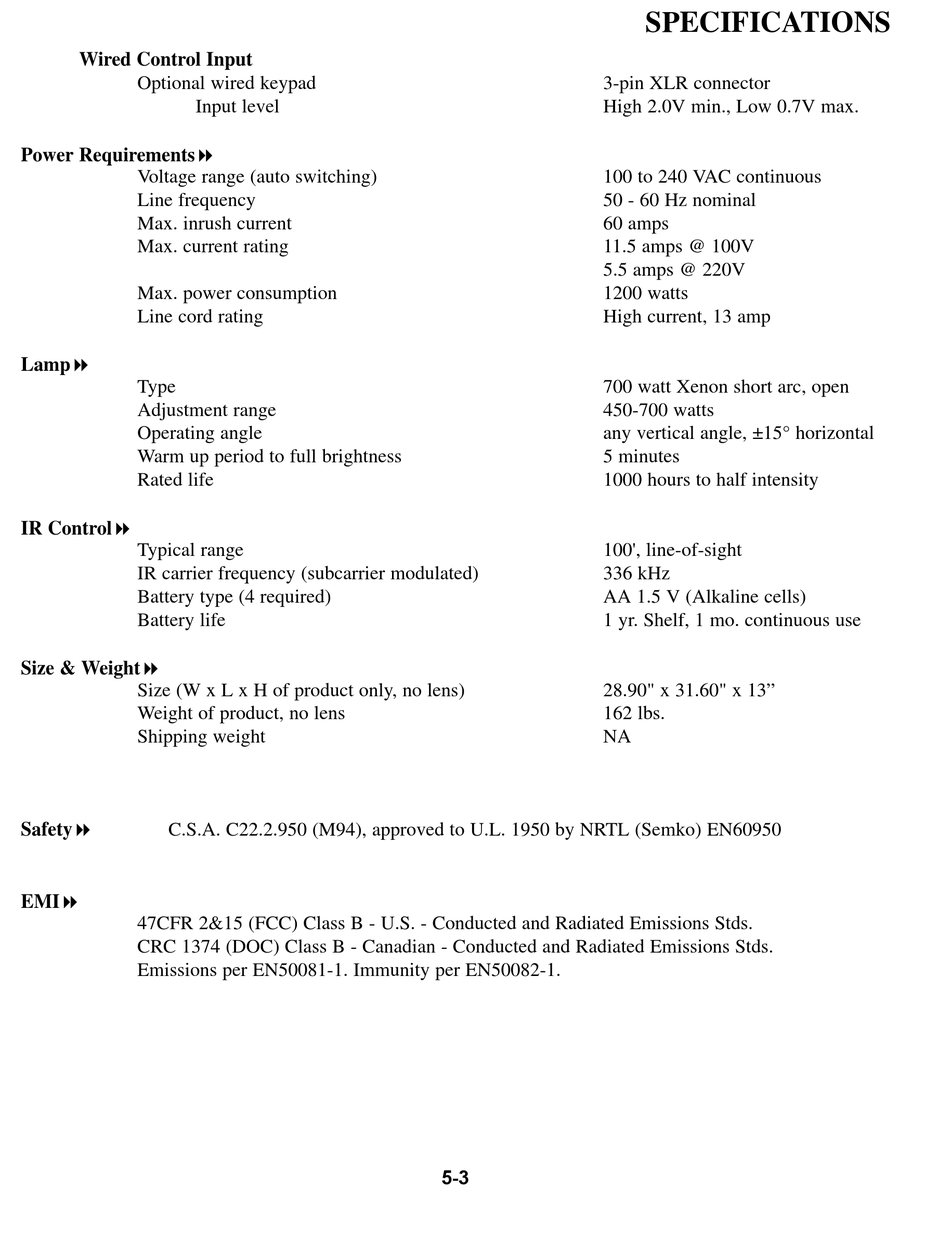

SPECIFICATIONS
