Runco Reflection VX-3c Owner's Operating Manual page 37

!
AC LINE CORD INPUT - The projector requires AC power of 100 to 240 VAC, 50 to 60 Hz
(11.5 amps @ 100 VAC, 5.5 amps @ 220 VAC). Always use the line cord that is supplied with
the projector-the projector requires this high-current 13A rated cord. See complete power speci-
fications in Section 5.
STATUS/POWER LEDS - Two LEDs (light emitting diodes) located in the lower right corner of
the rear connector panel indicate projector "Status" (top) and "Power" (bottom). During normal
operation, the "Power" light is steady green and the "Status" light flashes green each time a key
is pressed or when the projector receives a serial command. Use the following as a guide:
NOTE: A steady red power light accompanied by a coded pattern of red and yellow flashes from
the status light indicates an internal system error. Consult the rear LCD display for an explana-
tion, and see 3.9, Error Conditions. Should the problem persist, contact your Runco dealer.
REMOTE WIRED KEYPAD CONNECTOR (3-pin XLR) - For optional tethered remote control
of the projector.
LCD STATUS DISPLAY - Visual feedback for monitoring projector activities and status.
INFRARED SENSORS - The infrared (IR) sensors on the front and rear of the projector receive
infrared signals from the IR keypad for remote control of projector functions. For proper opera-
tion make sure that these sensors are not blocked.
HARD RESET - Emergency access for powering down the projector in the event of a system
failure. Insert a pen point or small screwdriver.
!
WARNING
Do not attempt operation if the AC supply is not
within the specified voltage and power range.
l;kjd;flkj;lkasjd;lkjfa;sdff
;laskdjf;lieuiodmca:LKs
eopedjivncfhasp;rpprgm
oiawoedfpawreoifasjdfl

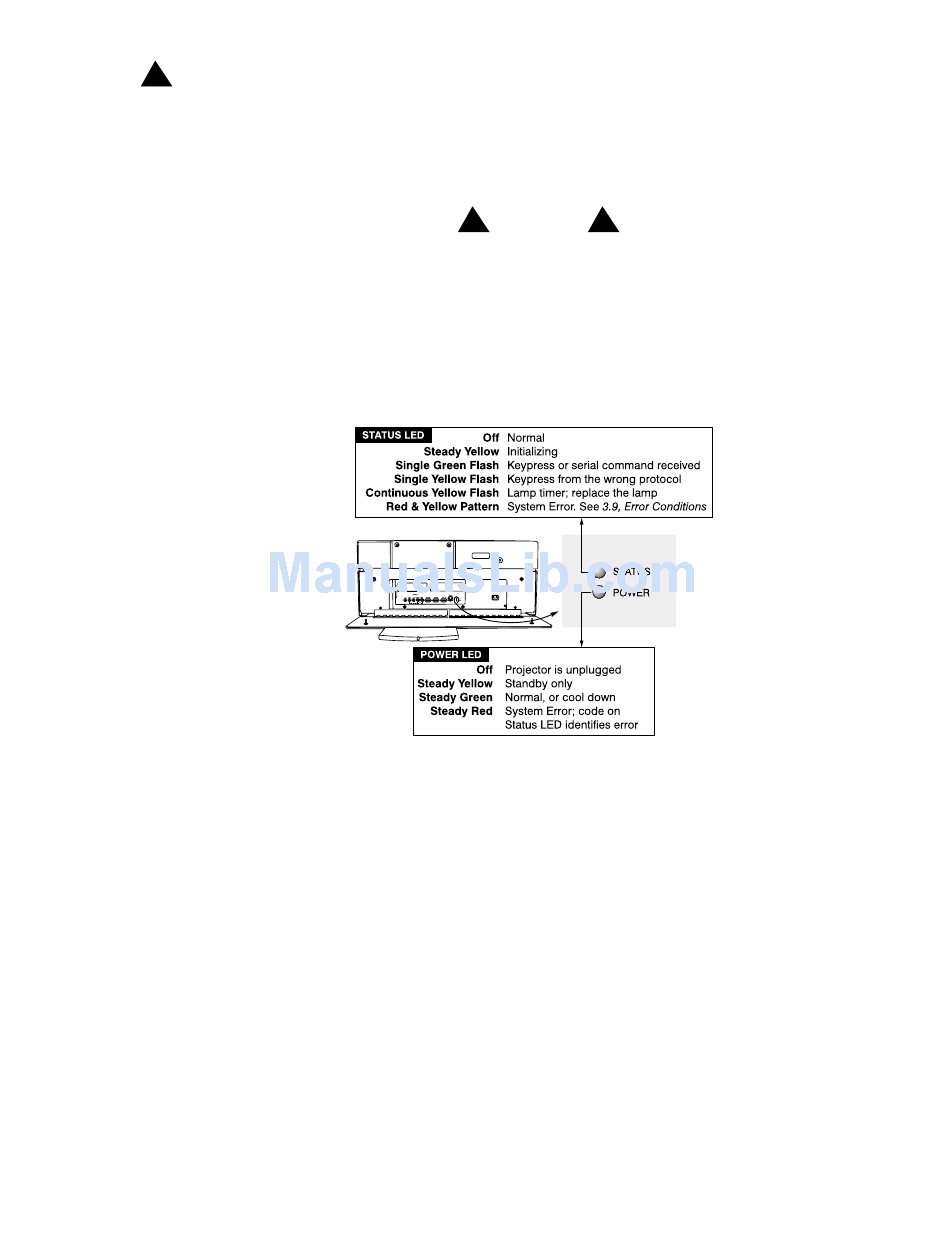

Figure 3.2. Reading the Status LEDs
3-3
