Specifications; Color Temperature - Runco Reflection VX-3c Owner's Operating Manual

5.1

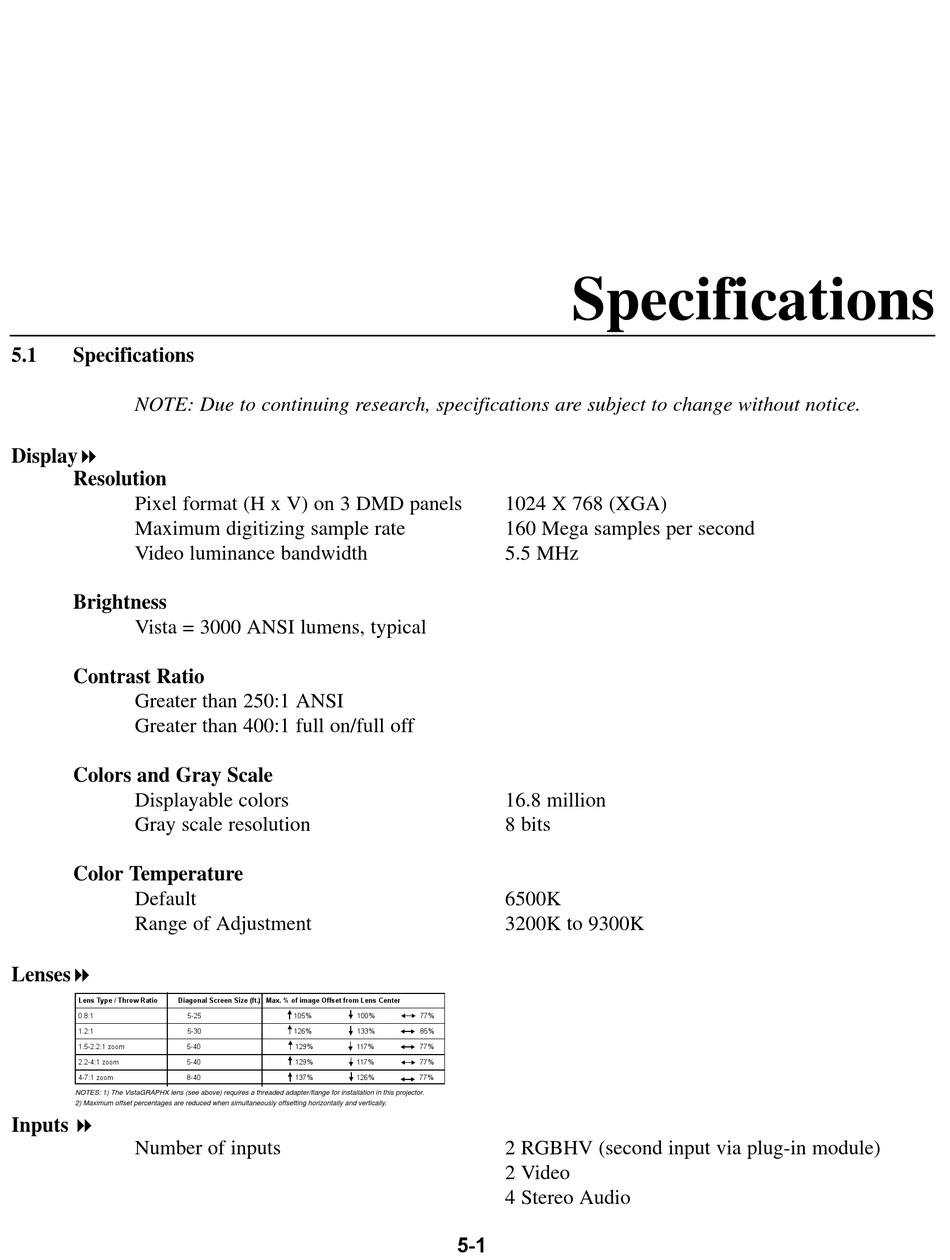

Specifications

NOTE: Due to continuing research, specifications are subject to change without notice.
Display!
Resolution
Pixel format (H x V) on 3 DMD panels
Maximum digitizing sample rate
Video luminance bandwidth
Brightness
Vista = 3000 ANSI lumens, typical
Contrast Ratio
Greater than 250:1 ANSI
Greater than 400:1 full on/full off
Colors and Gray Scale
Displayable colors
Gray scale resolution

Color Temperature

Default
Range of Adjustment
Lenses!
Lens Type / Throw Ratio Diagonal Screen Size (ft.) Max. % of image Offset from Lens Center
0.8:1 5-25
1.2:1 5-30
1.5-2.2:1 zoom 5-40
2.2-4:1 zoom 5-40
4-7:1 zoom 8-40
NOTES: 1) The VistaGRAPHX lens (see above) requires a threaded adapter/flange for installation in this projector.
2) Maximum offset percentages are reduced when simultaneously offsetting horizontally and vertically.
Inputs !
Number of inputs
105% 100% 77%
126% 133% 85%
129% 117% 77%
129% 117% 77%
137% 126% 77%
5-1
Specifications
1024 X 768 (XGA)
160 Mega samples per second
5.5 MHz
16.8 million
8 bits
6500K
3200K to 9300K
2 RGBHV (second input via plug-in module)
2 Video
4 Stereo Audio
