INSTALLATION AND SETUP
Extra Video- COMPOSITE OR S-VIDEO !
If you want to use an extra video source in addition to the video source(s) connected at INPUT
3 or INPUT 4 connect either a Composite or S-Video source to INPUT 1 as shown in Figure
2.17. Do not connect both types here simultaneously.
NOTE: For additional video inputs, install an optional Composite/S-Video Input Module at
INPUT 2.
Optional Inputs!
Optional modules from Runco allow you to increase your total number of inputs and/or accom-
modate different signal types, whether analog or digital. Any one of these modules can be
installed in the area labeled INPUT 2. They include:

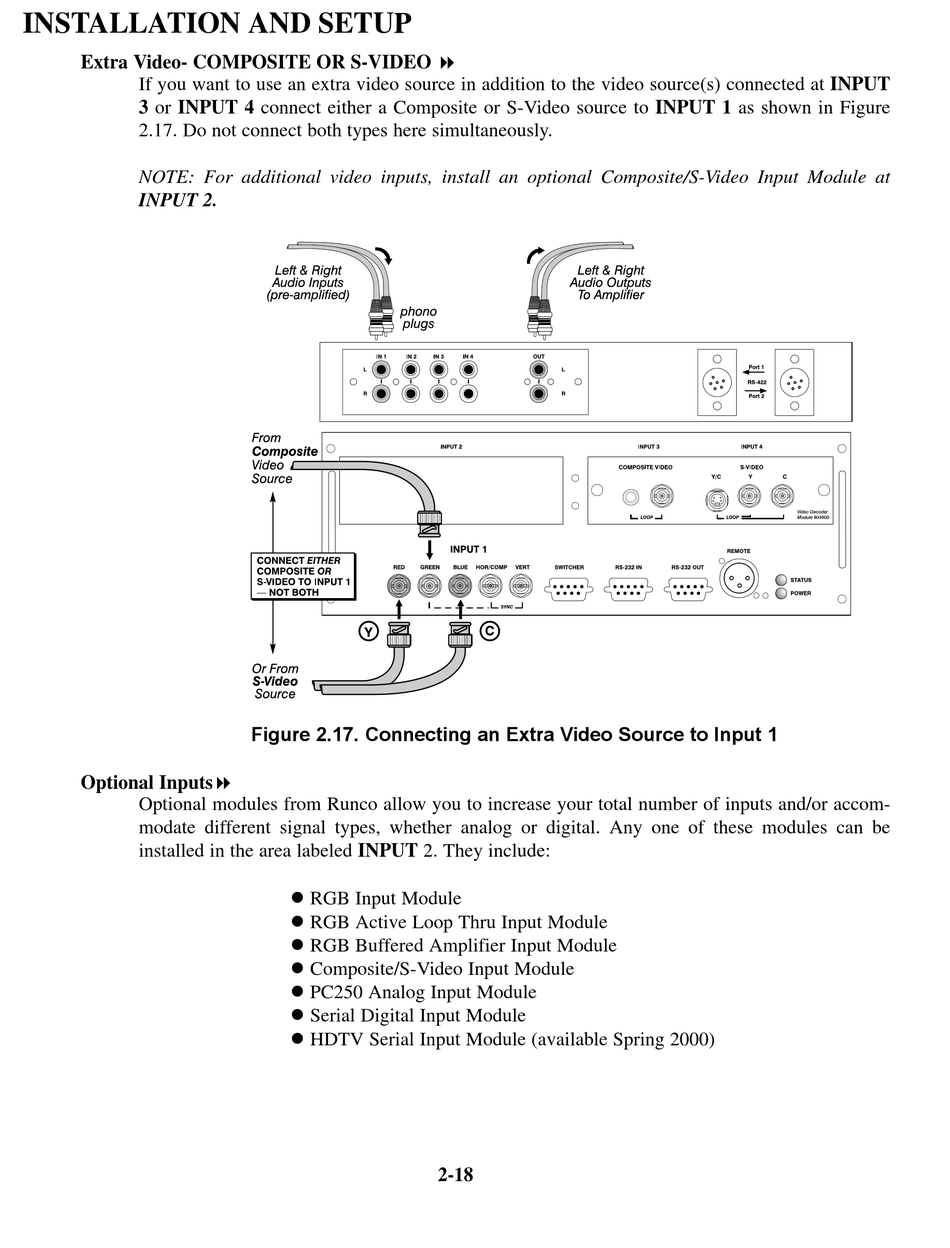

Figure 2.17. Connecting an Extra Video Source to Input 1
! RGB Input Module
! RGB Active Loop Thru Input Module
! RGB Buffered Amplifier Input Module
! Composite/S-Video Input Module
! PC250 Analog Input Module
! Serial Digital Input Module
! HDTV Serial Input Module (available Spring 2000)
2-18
