INSTALLATION AND SETUP
YPbPr Signal (COMPONENT VIDEO)!

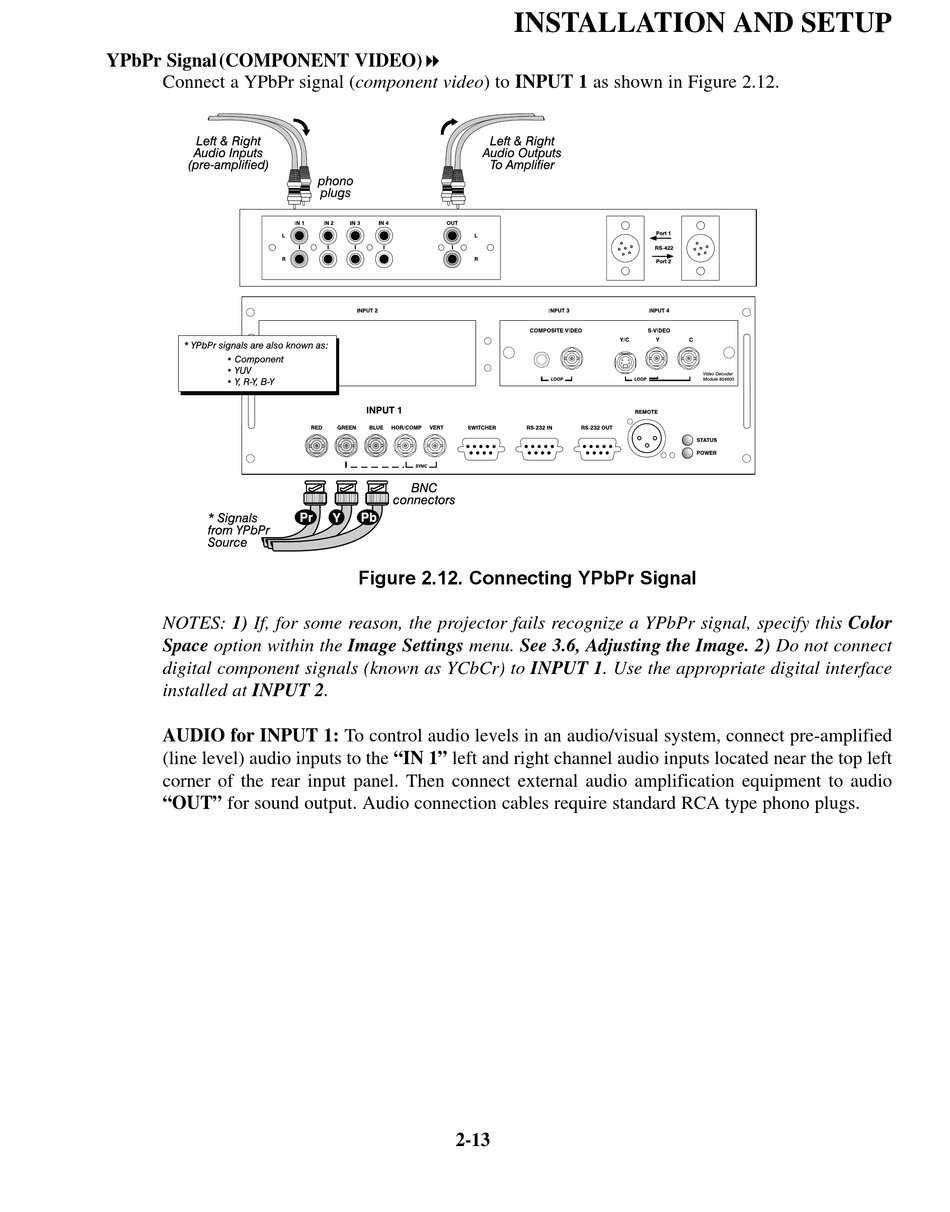

Connect a YPbPr signal (component video) to INPUT 1 as shown in Figure 2.12.
Figure 2.12. Connecting YPbPr Signal
NOTES: 1) If, for some reason, the projector fails recognize a YPbPr signal, specify this Color
Space option within the Image Settings menu. See 3.6, Adjusting the Image. 2) Do not connect
digital component signals (known as YCbCr) to INPUT 1. Use the appropriate digital interface
installed at INPUT 2.
AUDIO for INPUT 1: To control audio levels in an audio/visual system, connect pre-amplified
(line level) audio inputs to the "IN 1" left and right channel audio inputs located near the top left
corner of the rear input panel. Then connect external audio amplification equipment to audio
"OUT" for sound output. Audio connection cables require standard RCA type phono plugs.
2-13
