Runco Reflection VX-3c Owner's Operating Manual page 28

INSTALLATION AND SETUP

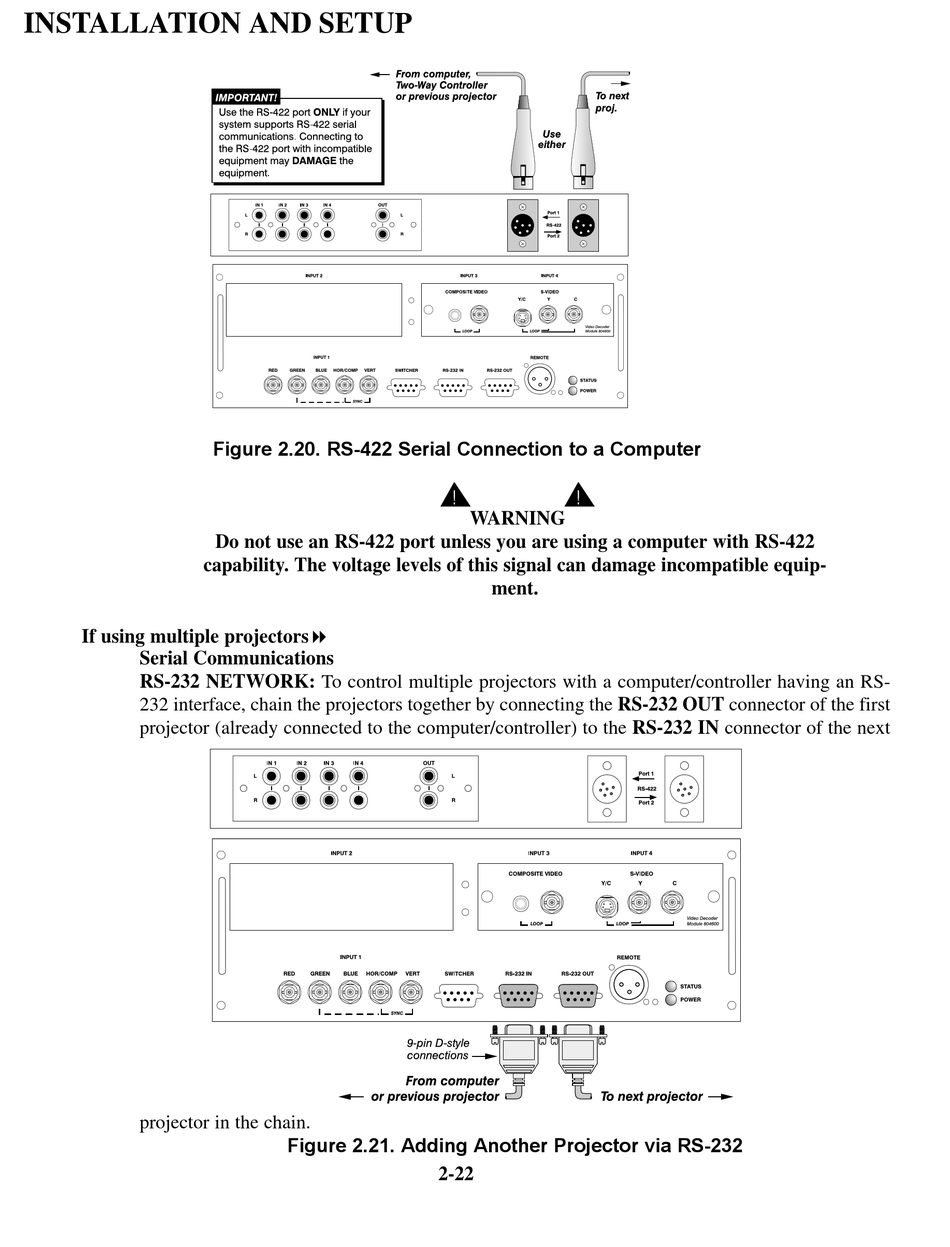

Figure 2.20. RS-422 Serial Connection to a Computer
! !
WARNING
Do not use an RS-422 port unless you are using a computer with RS-422
capability. The voltage levels of this signal can damage incompatible equip-
ment.
If using multiple projectors!
Serial Communications
RS-232 NETWORK: To control multiple projectors with a computer/controller having an RS-
232 interface, chain the projectors together by connecting the RS-232 OUT connector of the first
projector (already connected to the computer/controller) to the RS-232 IN connector of the next
projector in the chain.
Figure 2.21. Adding Another Projector via RS-232
2-22
