- Page 1 ’ WNER PERATING ANUAL VX-1000d Projector & DHD™ Video Controller Widescreen Digital Light Processing™ Projector & DHD™ Video Controller...
-
Page 2: Table Of Contents
Features and Benefits ... 8 Projector Description ... 9 Top View ... 9 Input Panel ... 9 Projector Placement and Offset Information ... 10 Ceiling Mount Configuration... 10 Floor Mount Configuration ... 10 DHD Controller Description ... 11 Front Panel ... 11 Rear Panel ... -
Page 4: Introduction
Introduction The new VX-1000d is one of the flagships of Runco International's 3rd Generation of DLP jectors. Some of the GEN 3 features include Reflectance Volume Regulation (RVR), digital video input with HDCP, 9 point Color Balance, and the latest ultra-high contrast 16:9 DMD (Digital Micro-Mirror Device) from Texas Instruments™. -
Page 5: Warnings And Safety Precautions
The cooling fan in this projector continues to run for about 90 seconds after the projector is turned off. During normal operation, when turning the power off always use the power (OFF) button on the projec- tor or on the remote control. -
Page 6: Safety Tips
Should the power cord become damaged in any way, please contact your Runco Dealer for a replacement cord. · Do not remove the cover of the Projector or DHD Controller for any reason. If any problems arise with the unit, please contact a Runco Dealer or Runco International for service. -
Page 7: Limited Warranty
PROVIDING WHEN INSTALLED AND CALIBRATED BY RUNCO AUTHORIZED PERSONNEL. RIGHTS, LIMITS AND EXCLUSIONS: Runco limits its obligations under any implied warranties under state laws to a period not to exceed the warranty period. There are no express warranties. Runco also excludes any obligation on its part for incidental or consequential damages related to the failure of this product to function properly. -
Page 8: Additional Information
IMPORTANT: WARRANTY REGISTRATION: Please fill out and mail your warranty registration card. It is imperative that Runco knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified. -
Page 9: Features And Benefits
Features and Benefits The VX-1000d system is a very unique system and has many important features, including: • Native 1280 x 720, the latest 16:9 DMD™ Chip creates images with appropriate black levels in darkened scenes • DVI input with HDCP allows digital connections for a richer pixel for pixel and direct digital signal. -

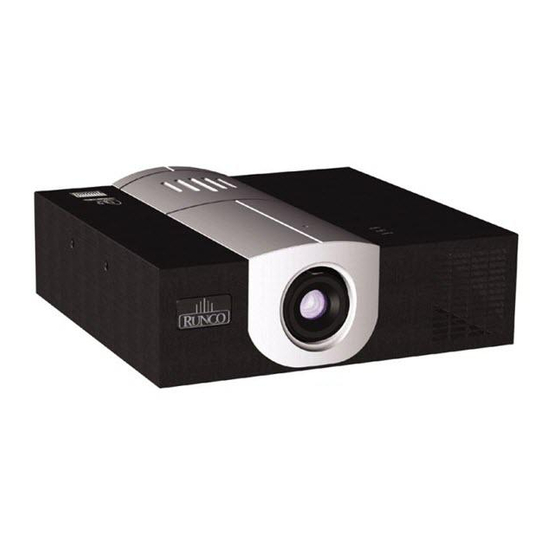

Page 10: Projector Description
DVI-I IN (from DHD Controller) Service Reset To be used by Authorized Runco Service Technicians Focus Ring: Turn this ring to focus the image. Zoom Tab: Turn this tab to make the image larger or smaller. Vertical Lens Shift: Using the provided adjustment tool, turn this to move the lens up and down. -
Page 11: Projector Placement And Offset Information
Projector Placement and Offset Information Ceiling Mount Configuration 10.250 6.546 1.645 8.830 SCREEN __________ (H) x __________ (W) B) THROW DISTANCE FOR 16 x 9 SCREENS: Minimum: = (screen width x 1.85) = __________ inches Maximum: = (screen width x 2.4) = __________ inches... -
Page 12: Dhd Controller Description
DHD Controller Description Front Panel RUNCO ICON When the Red light is displayed the unit is in Standby, when Blue light is displayed the unit is On. 2. POWER BUTTON Press once to toggle on from Standby mode to On mode, a second time to place into Standby mode. -
Page 13: Rear Panel
11. TRIGGERS 1/2/3 (Outputs) Connection for 3 different 12V trigger controlled devices. 12. RS-232 OUT (RJ-11 Connector) Comlink connection to VX-1000d projector. 13. IR Wired input from an external remote control. 14. RS-232 CONTROL Connection for an external RS-232 controller device to place the DHD under system automation control. -
Page 14: Remote Control Description
Remote Control Description (1) ON/OFF Switches Power ON/OFF. (This does not operate when POWER/STANDBY indicator of the main unit is off.) (2) IR OUTPUT INDICATOR Illuminates when a button in pressed, indicating that an IR signal is being transmitted. (3) ENTER BUTTON When an item is highlighted on a menu, pressing ENTER will select that item. -
Page 15: Quick Set-Up Guide
S-Video 1 DVI 2 Option Component Video Video S-Video 2 RS-232 Out VX-1000d Projector CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER- SERVICEABLE PARTS INSIDE. -
Page 16: Projector Configuration
Now that your DHD Controller has been installed, it’s time to get it configured for use in your system. The VX- 1000d/DHD is defaulted for RGBHV interface between the DHD controller and the VX-1000d projector. Superior picture quality will be obtained if you connect the two units together with a DVI cable. Please follow the proce-... -
Page 17: Overall Functional Description
DHD Controller tells the Projector to turn on or off, controls its brightness, contrast, color temperature and more. All of this is accomplished by Runco's unique ComLink, which is the transfer of information between the DHD Controller and the Projector via their ComLink ports on a CAT5 cable (or similar) with RJ-11 ends. -
Page 18: Menu Description And Navigation
'looped' directly to the output. When pass-through is the selected source, pressing MENU will not automatically select the last selected input before Pass-through was selected. If you wish to choose another source, Runco recommends using the direct access buttons to select the desired source as opposed to pressing MENU. -
Page 19: Aspect Ratio
Aspect Ratio provides selection of one of four aspect ratios: Anamorphic, Standard 4:3, Letterbox or VirtualWide. To select an aspect ratio via the main menu, press either the up and down buttons on the remote or front panel, highlight ASPECT RATIO and press ENTER. The aspect ratio menu will then appear with the four choices;... - Page 20 CONTRAST adjusts the white level of the image. For Fixed-pixel displays, adjust contrast until there is a distinct definition between the two brightest bars. NOTE: For best results, Runco recommends that CONTRAST be set to '0' or very close to it. (see below)
-
Page 21: Input Selection
SHARPNESS adjusts the amount of high-frequency detail in the image. This can be adjusted to the preference of the user. Keep in mind that when SHARPNESS is decreased, fine details in the image will become 'soft'; when it is increased, fine details will become sharper but will also make the picture appear 'noisy' if adjusted too high. -
Page 22: Basic Troubleshooting Tips
The following is a basic troubleshooting guide that can assist you in resolving typical problems may result in normal operation. If you have encountered problems that are not listed in this guide, please contact your Runco dealer for assistance. PROBLEM The Projector does not turn on after initial installation. - Page 23 · The Pr and Pb inputs on the Component input on the Controller are reversed · The Projector will not turn on for two minutes after power- down to protect its bulb. · The bulb has failed · Turn down the BRIGHTNESS level on the Controller.
-
Page 24: Rs-232 Communications
RS-232 Communications General Information Baud rate: 19200 (fixed) Bits: 8 No Parity All protocol in ASCII format RS-232 input connector pin numbers: TxD= Pin# 2, RxD= Pin# 3, GnD= Pin# 5 Command format (single command): command value (i.e. brightness 100). NOTE: A space (not an underscore) or comma may be used between the command and its value. -
Page 25: Rs-232 Commands
RS-232 Commands COMMAND PARAMETER POWER COMPOSITE SVIDEO1 SVIDEO2 COMPONENT DVI1 DVI2 HD1Pass HD2Pass ANAMORPHIC STANDARD LETTERBOX VIRTUALWIDE RGBNN RGBPP RGBS IHPOS -100/100 IVPOS -100/100 IWIDTH -100/100 IHEIGHT -100/100 OVERSCAN OHPOS -100/100 OVPOS -100/100 OWIDTH -100/100 OHEIGHT -100/100 Value stored? (min/max) 0/10 DESCRIPTION Turns DHD On and Off... - Page 26 COMMAND PARAMETER BRIGHTNESS -100/100 CONTRAST -100/100 COLOR -100/100 TINT -100/100 SHARPNESS NIGHT CUSTOM1 CUSTOM2 TRIGGER BKGND -100/-100 IHPOS? IHEIGHT? OHPOS? OHEIGHT? COLOR? ASPECT? INPUT? OUTRES? SERIALNUM? DATE? IVPOS? OVERSCAN? OVPOS? BRIGHTNESS? TINT? PRESET? POWER? ASPECTIN? SWVER? IWIDTH? PHASE? OWIDTH? CONTRAST? SHARPNESS? BKGND? INRES?
-
Page 27: Specifications
Regulatory Approvals: Complies with FCC Class B, CE, C-Tick Limited Warranty: Projector: (2) Two year parts and labor from the date of delivery to the end user. Lamp Warranty: 1000 hours or (6) six months, which ever comes first. Kelvin... - Page 28 • Remote Control with 2 AAA batteries • Rack Mount hardware • (1) 6” RGBHV extension for the Controller, (1) 9-pin to RJ-45 • Power cables (one for Projector, one for DHD Controller) • 50’ RJ-11 phone type cable • RS-232 to RJ-11 Adapter •...
- Page 29 RUMA-010825 rev 9-20-04 ver 2 • • • • • Runco International 2900 Faber Street Union City, CA 94587 ph (510) 324-7777 fax (510) 324-9300 www.runco.com...
