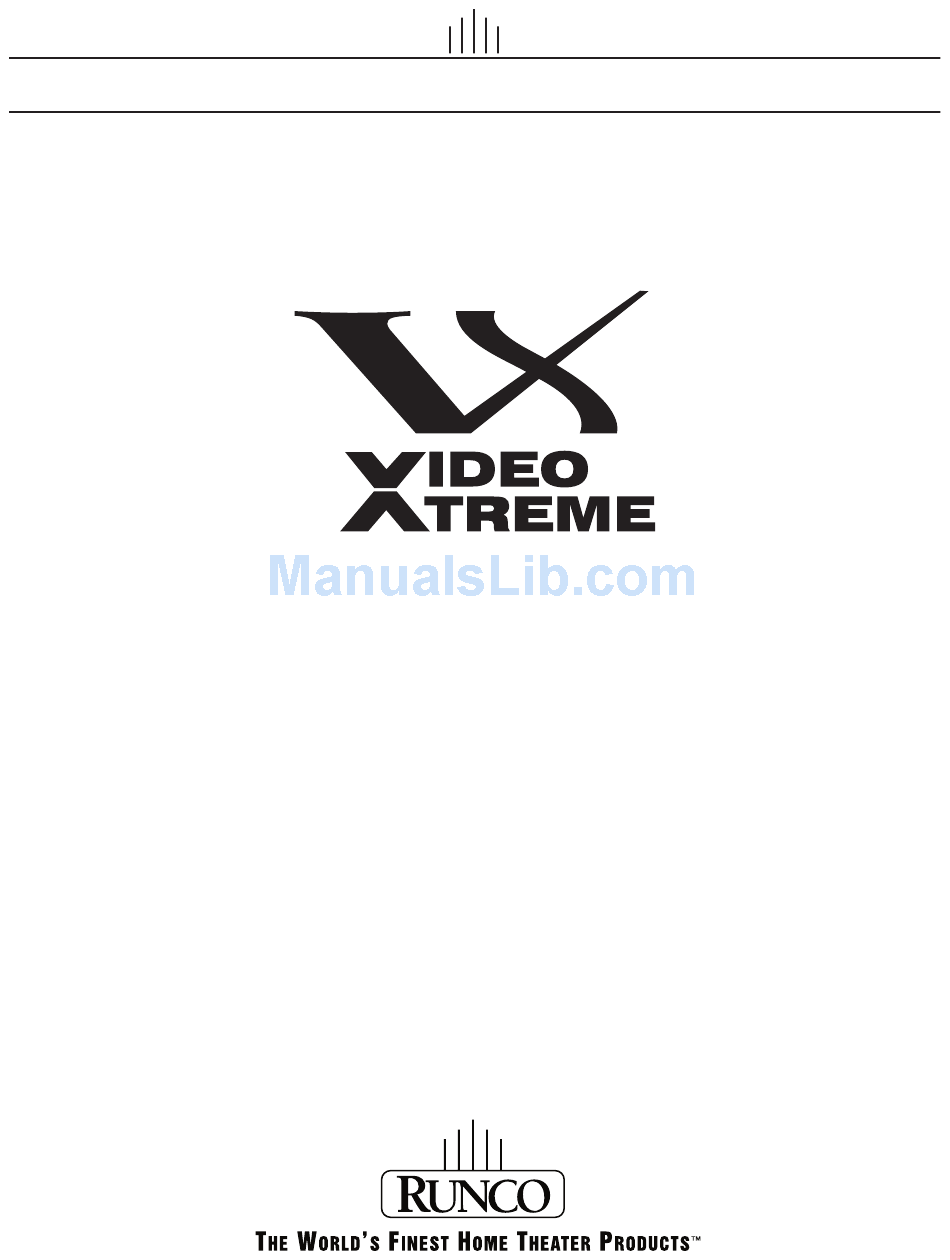

VX-22d
1080p, 3-chip Digital Light Processing
Projector
TM
and DHD Controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIDEO XTREME VX-22D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Runco VIDEO XTREME VX-22D

Summary of Contents for Runco VIDEO XTREME VX-22D

  • Page 1 N S T A L L A T I O N P E R A T I O N A N U A L VX-22d 1080p, 3-chip Digital Light Processing Projector and DHD Controller...

  • Page 3: Two Year Limited Warranty

    (6) months or 1000 hours, whichever comes first, from the effective date of delivery to the end user. In addition, Runco will provide a new or rebuilt replacement lamp for the lamp that fails due to defects in materials or workmanship for a period of six (6) months or 1000 hours, whichever comes first, from the effective date of delivery to the end user.

  • Page 4: Copyright And Trademarks

    IMPORTANT – WARRANTY REGISTRATION: Please fill out and mail your warranty registration card. It is imperative that Runco knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified.

  • Page 5: Additional Information

    ADDITIONAL INFORMATION: To locate the name and address of the nearest Runco Authorized Service Center, or for additional information about this Limited Warranty, please call or write: RUNCO VIDEO-PRODUCT INFORMATION RETAIN THIS INFORMATION FOR YOUR RECORDS _________________________________________________________ Model Purchased ____________________________________________________________________________________________________________...

  • Page 6: Important Safety Instructions

    Important Safety Instructions Thank you for your purchase of this quality Runco video projector! It has been designed to provide you with the quality of video that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the menus and operation.

  • Page 7: Compliance Information

    Compliance Information DECLARATION OF CONFORMITY: Manufacturer’s Name: Runco International, a subsidiary of Planar Systems, Inc. Manufacturer’s Address: 2900 Faber Street, Union City, CA 94587 hereby declares that the products Model Numbers: VX-22d, VX-22d/CineWide and VX-22d/CineWide with AutoScope conform with the provisions of: Council Directive 2004/108/EC on Electromagnetic Compatibility;...

  • Page 8: Fcc Part

    The recycling of materials will help to conserve natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. viii Runco VX-22d Installation/Operation Manual...

  • Page 9: Table Of Contents

    Important Safety Instructions ... vi Compliance Information ... vii 1. Introduction ...1 2. Controls and Functions ...5 3. Installation ...15 Runco VX-22d Installation/Operation Manual About This Manual ...1 Target Audience ...1 If You Have Comments About This Manual..1 Textual and Graphic Conventions ...1 Using This Manual ...2...
  • Page 10 Configure Lens Motor Trigger (CineWide with AutoScope) ...43 Adjust the Anamorphic Lens ...43 Using the On-Screen Menus ...47 Main Menu...49 Input Source ...49 Aspect Ratio ...49 Picture ...51 Input Position...55 Memory Presets ...56 Information ...56 Calibration ...57 Service ...59 Runco VX-22d Installation/Operation Manual...
  • Page 11 5. Maintenance and Troubleshooting ...61 6. Serial Communications ...65 7. Specifications ...69 Runco VX-22d Installation/Operation Manual Lamp Replacement ...61 Filter Replacement ...62 Troubleshooting Tips ...63 RS-232 Connection and Port Configuration ...65 Serial Command Syntax ...65 VX-22d Specifications ...69 DHD Controller Specifications ...71 VX-22d Dimensions ...72...
  • Page 12 Table of Contents Notes: Runco VX-22d Installation/Operation Manual...
  • Page 13 4-3. Typical Gray Bar Pattern for Adjusting Contrast ...53 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint...53 4-5. Typical Test Pattern for Adjusting Sharpness...55 7-1. VX-22d Dimensions (with Ceiling Mount and CineWide/AutoScope Options) ...72 Runco VX-22d Installation/Operation Manual xiii...
  • Page 14 List of Figures Notes: Runco VX-22d Installation/Operation Manual...

  • Page 15: Introduction

    Runco has prepared this manual to help home theater installers and end users get the most out of the VX-22d. Runco has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time.

  • Page 16: Using This Manual

    Use the following table to locate the specific information you need in this manual. If you need... Information about obtaining service General information about the VX-22d DLP Pro- jector and DHD Controller Installation instructions First-time configuration instructions Advanced configuration instructions Troubleshooting tips Product specifications ... Turn to page: Runco VX-22d Installation/Operation Manual...

  • Page 17: Description, Features And Benefits

    The results are simply stunning, with jaw-dropping images that must be seen to be believed! Runco has taken 1080p performance to a new level with this machine and harnessed the brightness and contrast capabilities inherent in 3-chip light engine design for a powerful presentation.

  • Page 18: Parts List

    Parts List Your VX-22d is shipped with the following items. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23-RUNCO. • VX-22d DLP Projector and DHD Controller • Remote Control Unit and two (2), AAA-size batteries •...

  • Page 19: Controls And Functions

    3. RUNCO LOGO The logo can be rotated to match the projector orientation: inverted (ceiling-mounted) or upright. To rotate the logo, grip it at the sides, pull it away from the projector and rotate it 180 degrees. 4. CABLE OPENING Pass cables through this opening.

  • Page 20: Vx-22D Rear Panel

    Used to move the menu cursor down in the VX-22d menu system. 6. RIGHT BUTTON Used to move the menu cursor right in the VX-22d menu system. 7. STAND-BY LED Lights orange to indicate that the projector is in standby mode. Runco VX-22d Installation/Operation Manual SERVICE PORT AUTHORIZED...
  • Page 21 8. SOFT POWER BUTTON Press once to turn on the VX-22d. Press it again to put the projector into Standby mode. For a discrete on or off command, you can use the direct access buttons on the remote control (see Figure 2-5).

  • Page 22: Dhd Controller Front Panel

    LEFT button toggles through the different sources, in this order: HDMI 2 - HDMI 1 - HD3 (VGA/Y-Pb-Pr) - HD 2 (BNC) - HD 1 (RCA) - S-Video - Composite (VID) 10 9 Please check issue(s) Communication Error Runco VX-22d Installation/Operation Manual...
  • Page 23 Lights orange to indicate that the projector is in standby mode. 14. SOFT POWER BUTTON Press once to turn on the VX-22d. Press it again to put the projector into Standby mode. For a discrete on or off command, you can use the direct access buttons on the remote control (see Figure 2-5).

  • Page 24: Dhd Controller Rear Panel

    (Currently, only RS-232 interface is supported.) HD1 (RCA) Y / G Pb / B Pr / R Y / G Pb / B HD3 (VGA / Y-Pb-Pr) TRIGGERS HDMI Runco VX-22d Installation/Operation Manual HD2 (BNC) Pr / R COMPOSITE S-VIDEO...

  • Page 25: Composite Video Input

    8. 12-VOLT (750 mA) TRIGGER OUTPUTS Connection for up to three (3), 12-volt trigger-controlled devices. These can be retractable screens, screen masks or the Runco CineWide with AutoScope system. 9. HDMI I (1) / HDMI II (2) (Digital) Two, HDCP-compliant digital video inputs for connecting a DVD player, HD tuner or other digital video source (up to 1080p) with a DVI or HDMI output.

  • Page 26: Vx-22D Remote Control

    Figure 2-5 shows the VX-22d remote control, and the paragraphs that follow describe its functionality. LIGHT S-VID INFO EXIT CONT PICTURE MEMORY CUST1 NIGHT ASPECT RATIO 16:9 CINEMA FOCUS ZOOM FOCUS ZOOM Figure 2-5. VX-22d Remote Control SOURCE HDMI1 HDMI2 ENTER MENU TINT CUST2 LBOX VWIDE VCINE LENS LENS Runco VX-22d Installation/Operation Manual...
  • Page 27 ENTER Press to select a highlighted menu item or confirm a changed setting. This button functions similarly to the SELECT button on the projector rear panel (Figure 2-2) or DHD Controller front panel (Figure 2-3). MENU Press this button to show or hide the OSD controls.
  • Page 28 (enlarge) or the DOWN button to zoom out (reduce). When finished, press MENU or EXIT. LENS (Lens Shift) To adjust the lens position, press LENS. Then, press and hold the RIGHT, LEFT, UP or DOWN button. When finished, press MENU or EXIT. Runco VX-22d Installation/Operation Manual...

  • Page 29: Installation

    • The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting. • Ambient conditions may possibly impede the operation of the remote control. If this happens, point the remote control at the projector, and repeat the operation. Runco VX-22d Installation/Operation Manual 3. Installation...

  • Page 30: Quick Setup

    Projector calibration: adjust the following for each input; save settings when finished: • Aspect ratio • Brightness • Contrast • Color level • Tint • Input position For Details, Refer to page... 19, 40 49 through 56 Runco VX-22d Installation/Operation Manual...

  • Page 31: Installation Considerations

    Proper installation of your projector will ensure the quality of your display. Whether you are installing a projector temporarily or permanently, you should take the following into account to ensure your projector performs optimally. Choose the installation type that best suits your needs: front or rear screen, floor mount or inverted mount.

  • Page 32: Throw Distance

    This is an important calculation in any projector installation as it determines whether or not you have enough room to install your projector with a desired screen size and if your image will be the right size for your screen.

  • Page 33: Vertical And Horizontal Position

    Projection Distance Figure 3-2. Projector Placement If it is not possible to align the projector and screen as shown in Figure 3-2, you can use the lens shift controls to center the image on the screen. Lens shift is generally expressed as a percentage of the screen height or width, as shown in Figure 3-3 and Figure 3-4.
  • Page 34 Screen Center Screen Width (W) Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example. Figure 3-4. Horizontal Lens Shift (EXAMPLE ONLY) Runco VX-22d Installation/Operation Manual...

  • Page 35: Folded Optics

    In rear screen applications where space behind the projector is limited, a mirror may be used to fold the optical path, as shown in Figure 3-5. The position of the projector and mirror must be accurately set. If you are considering this type of installation, contact your dealer for assistance.

  • Page 36: Other Considerations

    • Keep the projector away from devices that radiate electromagnetic energy such as motors and transformers. Common sources of these include slide projectors, speakers, power amplifiers and elevators. The projection lens is shipped separately from the projector. To install it, proceed as follows: 1. Loosen the captive Phillips screw at the top of the Projector Front Jewelry.
  • Page 37 Then, gently push the lens assembly in until it is seated flush against the flange and the connectors have seated. Runco VX-22d Installation/Operation Manual Installation...

  • Page 38: Installing The Optional Cinewide Lens Mount

    6.0mm hex wrench.) 8. Replace the Lens Cavity Front Cover. 9. Reattach the Projector Front Jewelry by sliding the top down onto the two retaining dowels. Tighten the Phillips screw at the top of the projector to secure it. 10. Remove the Front Lens Cap.

  • Page 39: Installing The Autoscope Lens Motor (Vx-22D/Cinewide With Autoscope)

    Remove Projector Front Feet: Place the projector upside down on a blanket or other soft surface. Loosen and remove the two front feet on the projector. Runco VX-22d Installation/Operation Manual CineWide with AutoScope Ceiling Mt. Adapter/ Projector Stand, Right CineWide with AutoScope Ceiling Mt.
  • Page 40 (included with the projector ceiling mount kit) from the bottom of the projector up and around the AutoScope lens motor housing. For floor installations (where the projector is upright), the adapters allow the projector to lie flat on the mounting surface.

  • Page 41: Autoscope Lens Motor Installation

    Install Lens Motor: Position the AutoScope Lens Motor (item #1) as shown in Figure 3-8. Line up the mounting holes on the lens motor housing with those on the underside of the projector. Secure the motor to the projector with the six remaining M6 x 12mm Pan-Head Phillips screws (item #2).

  • Page 42: Installing The Fixed Cinewide Base Plate (Vx-22D/Cinewide)

    In typical front and rear screen installations, the projector can be mounted to a secure and level surface such as a table or cart. Carts are useful when moving a projector during a presentation or from site to site. If possible, lock the wheels when it’s in position to prevent it from being moved during a presentation.

  • Page 43: Adjusting The Projection Angle

    The projector can also be inverted and placed in an enclosure above and behind the viewing area. Install four feet on the inside bottom surface of the enclosure on which the projector can rest. A variety of materials can be used for this purpose (for example, rubber crutch tips or turntable feet).
  • Page 44 Installation Use a Runco DVI Dual-Link (DVI-DL) cable to connect the output of the DHD Controller to the input of the VX-22d; see Figure 3-10. cover. lamp pull screw Remove Remove the screw to pull off the lamp cover. Figure 3-10. Connecting the VX-22d to the DHD Controller...

  • Page 45: Connecting Source Components To The Dhd Controller

    HD2 (BNC) Y / G Pb / B Pr / R HD3 (VGA / Y-Pb-Pr) HDMI Figure 3-11. HDMI Source Connections Runco VX-22d Installation/Operation Manual COMPOSITE S-VIDEO HDMI Source (HD-DVD/BD/DVD Player or HD Tuner with HDMI or DVI out) Installation...

  • Page 46: Digital (Dtv) Rgb Or Component Video Connections (Hd1, Hd2)

    Figure 3-12. Digital (DTV) RGB or Component Video Connections (HD1, HD2) HD2 (BNC) Y / G Pb / B Pr / R HD3 (VGA / Y-Pb-Pr) COMPOSITE HDMI Green/Y Blue/Pb Red/Pr Horiz DTV or Progressive Component (YPbPr) Source Runco VX-22d Installation/Operation Manual S-VIDEO Vert...

  • Page 47: Digital (Dtv) Rgb Or Component Video Connections (Hd3)

    Y / G Pb / B Pr / R HD3 (VGA / Y-Pb-Pr) COMPOSITE S-VIDEO Green/Y Blue/Pb Red/Pr Horiz Vert DTV or Progressive Component (YPbPr) Source Figure 3-13. Digital (DTV) RGB or Component Video Connections (HD3) Runco VX-22d Installation/Operation Manual...
  • Page 48 Analog (Computer) RGB Connections: See Figure 3-14. Green/Y Blue/Pb Red/Pr Horiz Vert Personal Computer HD2 (BNC) Y / G Pb / B Pr / R HD3 (VGA / Y-Pb-Pr) COMPOSITE S-VIDEO HDMI Figure 3-14. Analog RGB Connections Runco VX-22d Installation/Operation Manual...
  • Page 49 S-Video/Composite Video Connections: See Figure 3-15. HD2 (BNC) Y / G Pb / B Pr / R HD3 (VGA / Y-Pb-Pr) COMPOSITE HDMI DVD Player, VCR, Satellite Receiver, Laser Disc etc. Figure 3-15. S-Video and Composite Video Connections Runco VX-22d Installation/Operation Manual S-VIDEO Installation...

  • Page 50: Rs-232 Controller Connection

    Automation/ Control System or PC Figure 3-16. RS-232 Control System Connection Y / G Pb / B Pr / R TRIGG (none of the other pins are used) Runco VX-22d Installation/Operation Manual 5 Ground 3 Transmit Data 2 Receive Data...

  • Page 51: Connecting 12-Volt Trigger Outputs To External Theater Equipment

    3.5-mm mini plug Retractable Screen or other 12-volt trigger-activated Sleeve = Ground device Figure 3-17. 12-volt Trigger Output Connections Runco VX-22d Installation/Operation Manual HD1 (RCA) Y / G Pb / B Pr / R Tip = +12V INPUTS RS-232 / 485...

  • Page 52: Connecting An External Ir Receiver To The Dhd Controller

    Note built-in IR sensor on the DHD Controller is disabled. Projector/DHD Controller: Plug the female end of one power cord into the AC receptacle on the rear of the VX-22d (AC 100V ~ 240V). Then, connect the other end to your AC power source.

  • Page 53: Turning On The Power

    Controller front panel – to turn on the system. The vacuum fluorescent display on the DHD Controller front panel briefly displays “Starting Display.” 5. When the projector is ready for use (after about 20 seconds), the RUN LED on the DHD Controller front panel lights solid blue. The fluorescent display indicates the current input source, aspect ratio and input resolution;...

  • Page 54: Primary Lens Adjustments

    Then, press and hold the ENTER button on the remote control. To change the projected image position, use the cursor buttons to highlight “Left,” “Right,” “Up” or “Down” in the Lens menu. Then, press and hold the ENTER button to shift the image in that direction. Runco VX-22d Installation/Operation Manual...

  • Page 55: Installing And Adjusting The Cinewide Anamorphic Lens

    The VX-22d Anamorphic lens mount kit consists of everything shown in Figure 3-19. Some components shipped with your projector may differ slightly from what is shown in these instructions. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23-RUNCO.
  • Page 56 Ring to the Anamorphic Lens Holder. The Yoke should be as close to the primary lens as possible. 6. Attach the lens to the Lens Adapter Ring by threading it clockwise. Lens threads into ring Figure 3-20. Attaching the Anamorphic Lens to the Lens Adapter Ring Runco VX-22d Installation/Operation Manual...

  • Page 57: Configure Lens Motor Trigger (Cinewide With Autoscope)

    CineWide with AutoScope maintains constant image height independent of the aspect ratio, while using the full display resolution of the projector. It accomplishes this by moving the anamorphic lens in front of the primary lens when widescreen material is being viewed.
  • Page 58 Incorrect Lens Angle The anamorphic lens will almost always be angled with respect to the projector; this is normal. Once the proper lens angle has been set, firmly tighten the Pitch Adjustment T-Screws to secure the lens in place.
  • Page 59 Then, angle the lens to even out any left-right pincushion distortion: Anamorphic Lens (Top View) Correct Position Wrong Position Once the proper lens angle has been set, firmly tighten the Yaw/X-Adjustment Levers to secure the lens in place. Runco VX-22d Installation/Operation Manual...
  • Page 60 Installation Adjusting the Geometry: 1. Input an anamorphic cross-hatch test pattern to the projector. 2. Unscrew the Anamorphic Lens just enough to allow it to rotate freely. 3. Grasp the lens by the center ring and rotate the lens until the image is properly...

  • Page 61: Operation

    DHD Controller front panel (Figure 2-3) or projector rear panel (Figure 2-2). To select a menu item, use the front panel or projector rear panel to highlight it. Then, to confirm your selection, press ENTER on the remote control (or SELECT on the DHD Controller front panel or projector rear panel).
  • Page 62 ISF Day - Input Color Chroma Delay Noise Filter Save ISF Settings Back / Confirm Left/Right Up/Down Output Shift Width Height Splash Timer 5 ... 60 sec. Horiz. / Vert. OSD Position (0, 1, 2 ... 100) Runco VX-22d Installation/Operation Manual...

  • Page 63: Main Menu

    The Main Menu is the starting point for accessing all projector functions. (The Calibration and Service menus are hidden and not accessible until you enter a passcode.) From the Main Menu, select Input Source to choose a video signal source.
  • Page 64 16:9 4:3 Image on 16:9 Screen (Display) screen. 4:3 Image on 16:9 Screen with VirtualWide On a 2.35:1 screen, the image is 4:3 Image on centered between black bars on 2.35:1 Screen with VirtualWide either side. Runco VX-22d Installation/Operation Manual...

  • Page 65: Picture

    Runco video display devices. Accordingly, Runco recommends that setup and calibration be performed by an ISF certified installation technician.
  • Page 66 Memory Presets on page 56. Although it may be possible to obtain satisfactory picture quality using the naked eye and regular program material, Runco recommends using the following calibration tools for best results: • External test pattern source – Ovation Multimedia, Digital Video Essentials or AVIA test DVD or equivalent.
  • Page 67 Color Saturation: On your external test pattern source, select a color bar pattern like the one shown in Figure 4-4. Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint Runco VX-22d Installation/Operation Manual Operation...
  • Page 68 (on either side of the green bar) appear to be a single shade of blue. Like the brightness and contrast controls, the color and tint controls Note are interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting. Runco VX-22d Installation/Operation Manual...

  • Page 69: Input Position

    Height: Select Height from the Input Position menu to change the projected image height. Press to increase the height; press Runco VX-22d Installation/Operation Manual to shift it to the left. to shift it downward. to decrease it.

  • Page 70: Memory Presets

    Select Information from the Main Menu to display information about the current input signal (resolution, frequency, type et cetera) and installed firmware versions. Should you ever need to contact Runco Technical Support, this information will help them answer your questions or resolve product performance issues.

  • Page 71: Calibration

    ISF Night - Input Image: The Input Image controls are similar to those in the Picture menu, but are accessible only by entering the Calibration menu passcode. This makes it possible to restore the picture quality settings to what they were when the projector was installed, simply by recalling the “ISF Night” preset.
  • Page 72 Splash Timer: Select Splash Timer from the Calibration menu to set the amount of time the Runco/ISF logo “splash” screen appears when you turn on the projector. The range is from 5 to 60 seconds, in one-second increments.

  • Page 73: Service

    Use the Service menu to access advanced projector configuration settings. This menu should be used by ISF-certified technicians only. You must enter a passcode to access the Service menu. Note Test Video: Select Test Video from the Service Menu to access the internal test patterns on the VX-22d.
  • Page 74 You can assign one or more trigger outputs to each aspect ratio. Those triggers are then activated by selecting that aspect ratio. If your projector is equipped with the Runco CineWide with AutoScope system, assign at least one trigger output (the same one to which the lens motor is connected) to the Cinema and Virtual Cinema aspect ratios.

  • Page 75: Maintenance And Troubleshooting

    For lamp or filter replacement, please contact your nearest Runco authorized service center or Runco dealer. Do not attempt to replace the lamp yourself! The VX-22d lamp is under high pressure. Handle it with great care WARNING at all times.

  • Page 76: Filter Replacement

    7. Replace the lamp cover and re-tighten all screws. Whenever you replace the lamp – or more often if the projector is installed in an extremely dusty environment – you should also replace the filter located at the right side of the projector.

  • Page 77: Troubleshooting Tips

    Table 5-1 provides some general guidelines for troubleshooting problems you may encounter with the VX-22d. If the suggested solutions fail to resolve the problem or if you encounter an issue not described here, please contact Runco Technical Support. Table 5-1. Troubleshooting Chart...
  • Page 78 Maintenance and Troubleshooting Notes: Runco VX-22d Installation/Operation Manual...

  • Page 79: Serial Communications

    • When the DHD Controller receives an OFF command, it will not acknowledge or execute any commands for approximately 90 seconds afterwards. This is to prevent hot re-strikes of the lamp, which can damage it. Runco VX-22d Installation/Operation Manual 6. Serial Communications RS-232 Connection...
  • Page 80 Table 6-1. Serial Commands Command Description Turns projector off Turns projector on Display system firmware version information: > rev * Runco Gennum Scaler Board * * Rev 0.28 (T01) 05 Jan 2007 * File Name: Runco_Gennum.ncd Created: 21 Dec 2006 - 10:42:40 Device:...
  • Page 81 MNR <Enter> MNR <Enter> MNR <Enter> MNR <Enter> EXIT <Enter> Adjust Brightness MCOL Adjust Color Level MCON Adjust Contrast MTIN Adjust Tint Runco VX-22d Installation/Operation Manual Response ISF Night ISF Day Custom 1 (none) and/or to make picture (none) Serial Communications...
  • Page 82 Serial Communications Notes: Runco VX-22d Installation/Operation Manual...

  • Page 83: Specifications

    Refer to Table 3-3 (Factor x Screen Width): Horizontal and Vertical Refer to Table 3-4 Offset: Lamp: 300W UHP Estimated Lamp Life: 2000 hours Input: DVI-DL (Dual-Link) with HDCP (from DHD Controller) Controls: Built-in keypad Runco VX-22d Installation/Operation Manual 7. Specifications VX-22d Specifications...
  • Page 84 CSMS measurements. Industry-Standard Specifications These are typical projector brightness and contrast specifications found in most companies’ sales literature. Runco includes these measurements in its literature to allow for direct comparison with other manufacturers’ projectors. These measurements are typically taken at 9,000K to 13,000K to get expected performance data when the projector is used in professional, commercial and industrial displays.

  • Page 85: Dhd Controller Specifications

    Limited Warranty: Two (2) years parts and labor from the date of delivery to the end user. Specifications are subject to change without notice. Runco VX-22d Installation/Operation Manual 15-pin D-Sub connector Discrete infrared remote Serial commands via RS-232 interface Front-panel controls...

  • Page 86: Vx-22D Dimensions

    Specifications VX-22d Dimensions Figure 7-1 shows the VX-22d dimensions (all dimensions are in inches). 3.91 10.08 16.26 Figure 7-1. VX-22d Dimensions (with Ceiling Mount and CineWide/AutoScope Options) Runco VX-22d Installation/Operation Manual...

  • Page 87: Supported Timings

    1280x1024 1280x1024 75.00 85.00 1360x768 1360x768 60.00 60.00 1400x1050 1400x1050 60.00 75.00 1600x1200 1600x1200 60.00 1920x1200 1920x1200 60.00 Runco VX-22d Installation/Operation Manual Horizontal Pixel Frequency Frequency (MHz) (kHz) RGBHV 31.469 25.175 37.861 31.500 37.500 31.500 43.269 36.000 37.879 40.000 48.077 50.000...
  • Page 88 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ – – – Runco VX-22d Installation/Operation Manual Composite S-Video √ – √ – – – – – – – – √ √ √ √ √...
  • Page 90 S ER IAL N UM B E R 020-0733-00 rev. A (RUMA-000105) December 2007 Runco International • 2900 Faber Street • Union City, CA 94587 • Ph (510) 324-7777 / (800) 23RUNCO / Fax (510) 324-9300 www.runco.com Runco CL-810 Owner’s Operating Manual...
