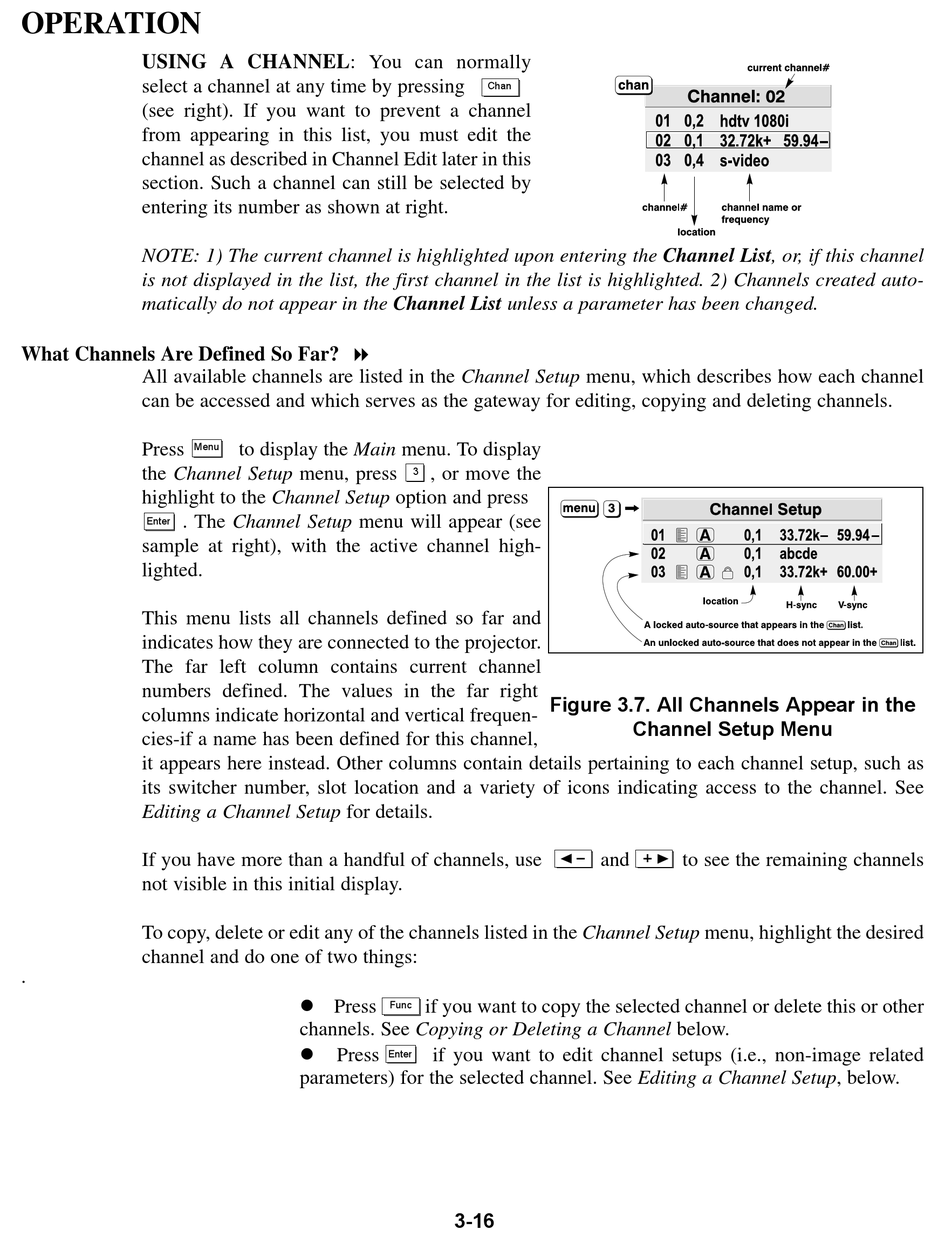

Runco Reflection VX-3c Owner's Operating Manual page 50

OPERATION
USING A CHANNEL: You can normally
select a channel at any time by pressing
(see right). If you want to prevent a channel
from appearing in this list, you must edit the
channel as described in Channel Edit later in this
section. Such a channel can still be selected by
entering its number as shown at right.
NOTE: 1) The current channel is highlighted upon entering the Channel List, or, if this channel
is not displayed in the list, the first channel in the list is highlighted. 2) Channels created auto-
matically do not appear in the Channel List unless a parameter has been changed.
What Channels Are Defined So Far? !
All available channels are listed in the Channel Setup menu, which describes how each channel
can be accessed and which serves as the gateway for editing, copying and deleting channels.
Menu
Press
the Channel Setup menu, press
highlight to the Channel Setup option and press
. The Channel Setup menu will appear (see
Enter
sample at right), with the active channel high-
lighted.
This menu lists all channels defined so far and
indicates how they are connected to the projector.
The far left column contains current channel
numbers defined. The values in the far right
columns indicate horizontal and vertical frequen-
cies-if a name has been defined for this channel,
it appears here instead. Other columns contain details pertaining to each channel setup, such as
its switcher number, slot location and a variety of icons indicating access to the channel. See
Editing a Channel Setup for details.
If you have more than a handful of channels, use
not visible in this initial display.
To copy, delete or edit any of the channels listed in the Channel Setup menu, highlight the desired
channel and do one of two things:
·
to display the Main menu. To display
3
!$Press
Func
channels. See Copying or Deleting a Channel below.
!$Press
Enter
parameters) for the selected channel. See Editing a Channel Setup, below.
Chan
, or move the
Figure 3.7. All Channels Appear in the
and
if you want to copy the selected channel or delete this or other
if you want to edit channel setups (i.e., non-image related
3-16
Channel Setup Menu
to see the remaining channels
