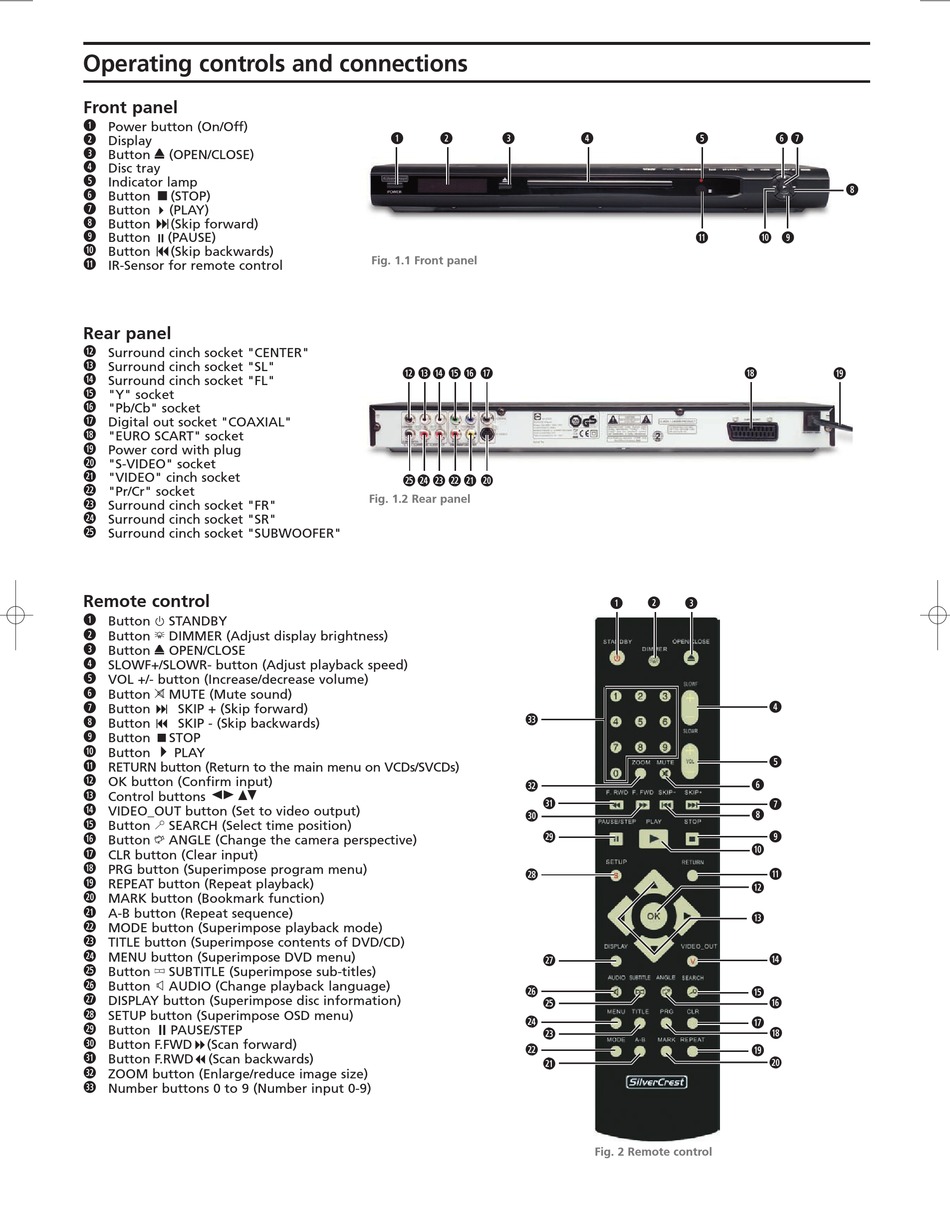

Operating controls and connections

Front panel

q
Power button (On/Off)
w
Display
e
Button
(OPEN/CLOSE)
r
Disc tray
t
Indicator lamp
y
Button
(STOP)
u
Button
(PLAY)
i
Button
(Skip forward)
o
Button
(PAUSE)
a
Button
(Skip backwards)
s
IR-Sensor for remote control

Rear panel

d
Surround cinch socket "CENTER"
f
Surround cinch socket "SL"
g
Surround cinch socket "FL"
h
"Y" socket
j
"Pb/Cb" socket
k
Digital out socket "COAXIAL"
l
"EURO SCART" socket
;
Power cord with plug
2)
"S-VIDEO" socket
2!
"VIDEO" cinch socket
2@
"Pr/Cr" socket
2#
Surround cinch socket "FR"
2$
Surround cinch socket "SR"
2%
Surround cinch socket "SUBWOOFER"
Remote control
q
Button
STANDBY
w
Button
DIMMER (Adjust display brightness)
e
Button
OPEN/CLOSE
r
SLOWF+/SLOWR- button (Adjust playback speed)
t
VOL +/- button (Increase/decrease volume)
y
Button
MUTE (Mute sound)
u
Button
SKIP + (Skip forward)
i
Button
SKIP - (Skip backwards)
o
Button
STOP
a
Button
PLAY
s
RETURN button (Return to the main menu on VCDs/SVCDs)
d
OK button (Confirm input)
f
Control buttons
g
VIDEO_OUT button (Set to video output)
h
Button
SEARCH (Select time position)
j
Button
ANGLE (Change the camera perspective)
k
CLR button (Clear input)
l
PRG button (Superimpose program menu)
;
REPEAT button (Repeat playback)
2)
MARK button (Bookmark function)
2!
A-B button (Repeat sequence)
2@
MODE button (Superimpose playback mode)
2#
TITLE button (Superimpose contents of DVD/CD)
2$
MENU button (Superimpose DVD menu)
2%
Button
SUBTITLE (Superimpose sub-titles)
2^
Button
AUDIO (Change playback language)
2&
DISPLAY button (Superimpose disc information)
2*
SETUP button (Superimpose OSD menu)
2(
Button
PAUSE/STEP
3)
Button F.FWD
(Scan forward)
3!
Button F.RWD
(Scan backwards)
3@
ZOOM button (Enlarge/reduce image size)
3#
Number buttons 0 to 9 (Number input 0-9)
