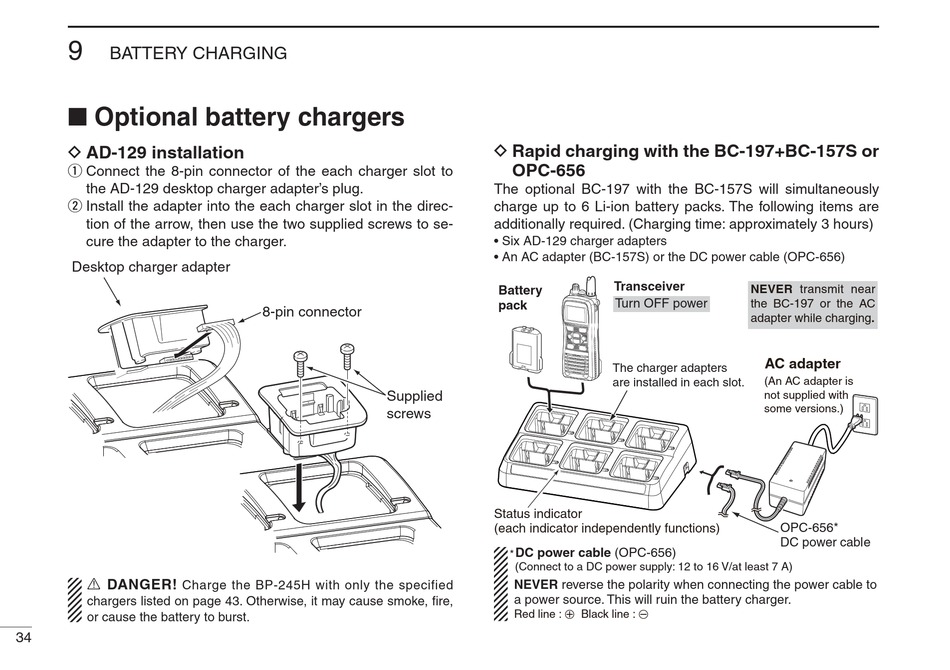

BATTERY CHARGING

Optional battery chargers

D
q
Connect the 8-pin connector of the each charger slot to
the AD-129 desktop charger adapter's plug.
w
Install the adapter into the each charger slot in the direc-
tion of the arrow, then use the two supplied screws to se-
cure the adapter to the charger.
Desktop charger adapter
R DANGER!
Charge the BP-245H with only the specified
chargers listed on page 43. Otherwise, it may cause smoke, fire,
or cause the battery to burst.
34
8-pin connector
Supplied
screws
D
The optional BC-197 with the BC-157S will simultaneously
charge up to 6 Li-ion battery packs. The following items are
additionally required. (Charging time: approximately 3 hours)
Tran ceiver
Battery
Turn OFF power
pack
The charger adapters
are installed in each slot.
Status indicator
(each indicator independently functions)
DC power cable (OPC-656)
*
(Connect to a DC power supply: 12 to 16 V/at least 7 A)
NEVER reverse the polarity when connecting the power cable to
a power source. This will ruin the battery charger.
Red line : + Black line : _
NEVER transmit near
the BC-197 or the AC
adapter while charging.
AC adapter
(An AC adapter is
not supplied with
some versions.)
OPC-656*
DC power cable
