FLEX ARRAY

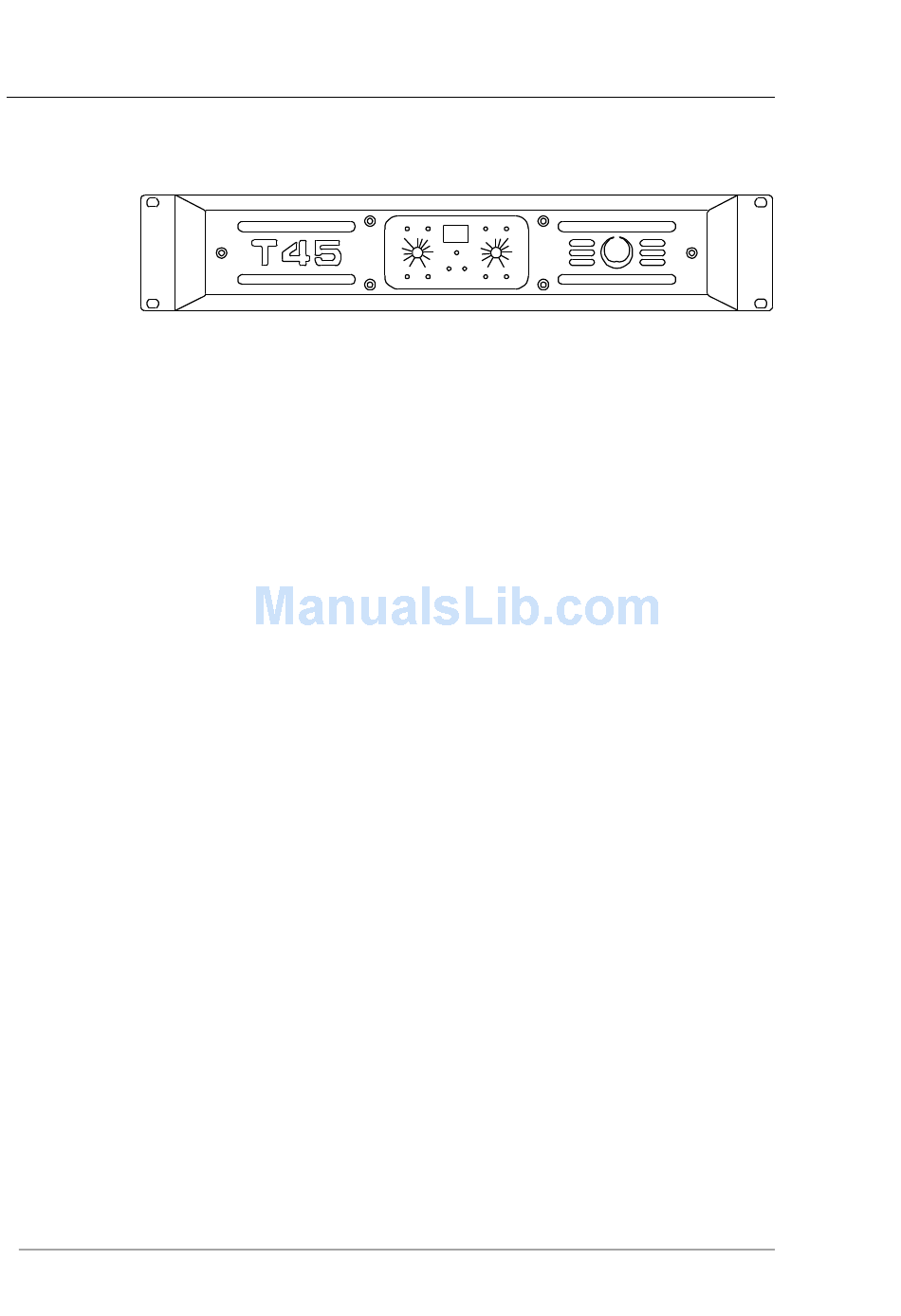

Front Panel Functions T-45
Mains power rocker switch – applies AC mains power to the amplifier.
Mains power LED – illuminates when AC power is applied to the amplifier.
Gain – rotary control which allows the gain of the channel to be adjusted.
Signal – blue LED indicates signal presence, active from a minimum output level of 10 watts.
-3dB – yellow LED is active when the signal is 3dB below the limiting level.
Limit – amber LED indicates operation of the limiters.
PRC – green LED indicates when the PRC for that channel has been selected.
Bridge (BRG) – green LED illuminates when bridge mode is selected.
Fault (A/P) – red LED indicates protection circuit activity.
FLEX ARRAY user manual
Page 66
Ch. A
Ch.B
