DSP Processing Layout

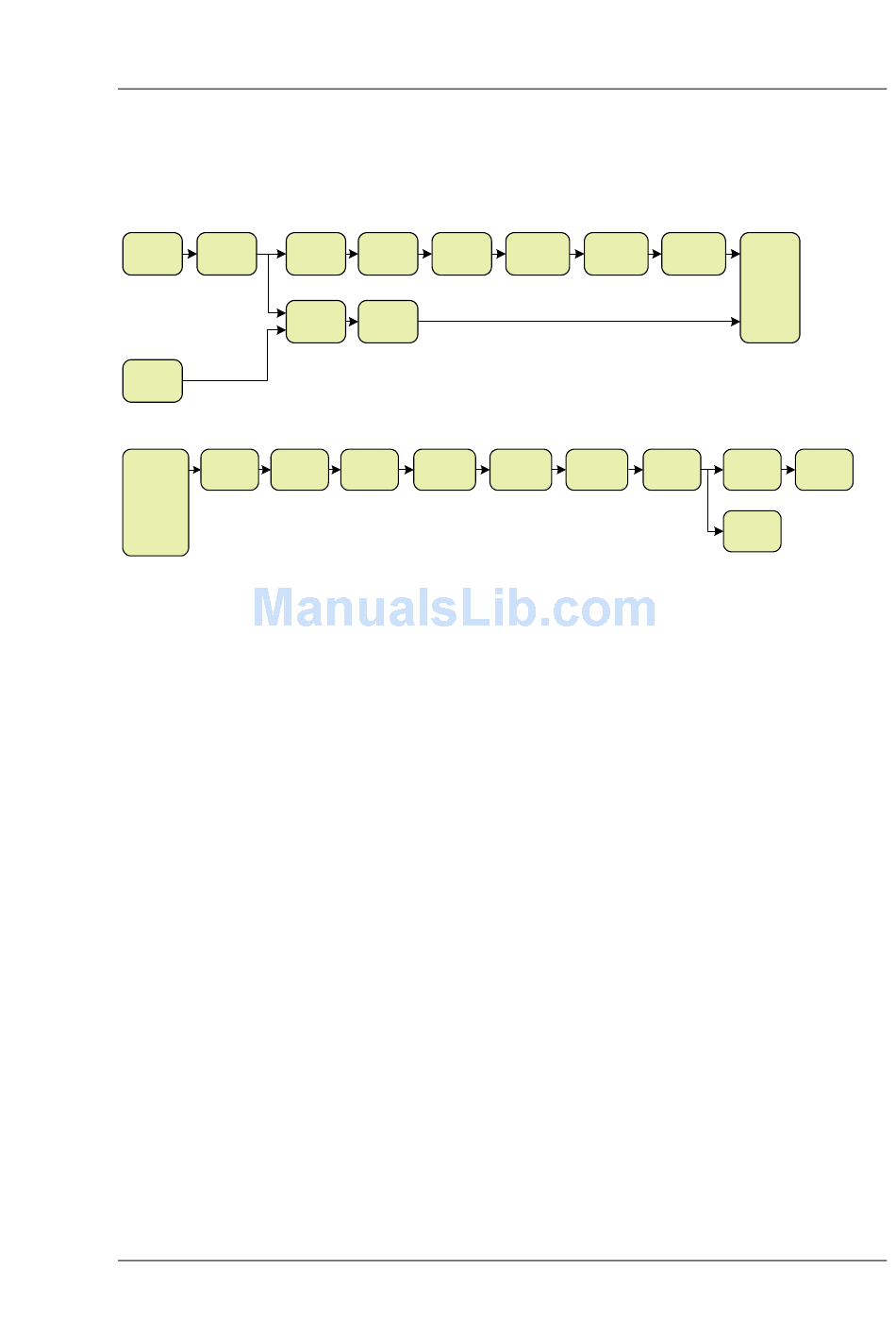

Input DSP block diagram
Input
Input A
LED's
Input B
Output DSP block diagram
th
8
Delay
HPF
Routing
Stereo / Mono Formats
There is only one „standard‟ layout of the processing blocks, but flexible routing and control
linking allows this layout to be adapted to a wide variety of applications.
There are two „Formats‟, Mono or Stereo. With the Mono format, all outputs have unique
parameter settings, and all outputs are identical in terms of processing functions and routing
capability. This is the most flexible Format.
Stereo format pairs the inputs and outputs for stereo operation, the parameters of each
member of the pair being identical. The routing of inputs to outputs is fixed. This format is
intended for symmetrical stereo operation, eliminating the need to make identical parameter
adjustments for each channel.
The channel pairing is:
Left and Right Inputs
Outputs 1 (routed from L input) and 3 (routed from R input) [1 and 4 for LMS-D26]
Outputs 2 (routed from L input) and 4 (routed from R input) [2 and 5 for LMS-D26]
Outputs 3 (routed from L input) and 6 (routed from R input) – LMS-D26 only]
th
Input 4 Order
Delay
Gain HPF
SUM - 6dB
NB. Channel B processing is
identical to Channel A but for
clarity it is not shown
th
Order 8 Order Low
LPF Shelf EQ
Low Six Band
Shelf EQ PEQ
Six Band High Output
PEQ Shelf EQ Gain
user manual
FLEX ARRAY
High
Shelf EQ
Routing
Mute Limiter
Metering
