user manual
FLEX ARRAY

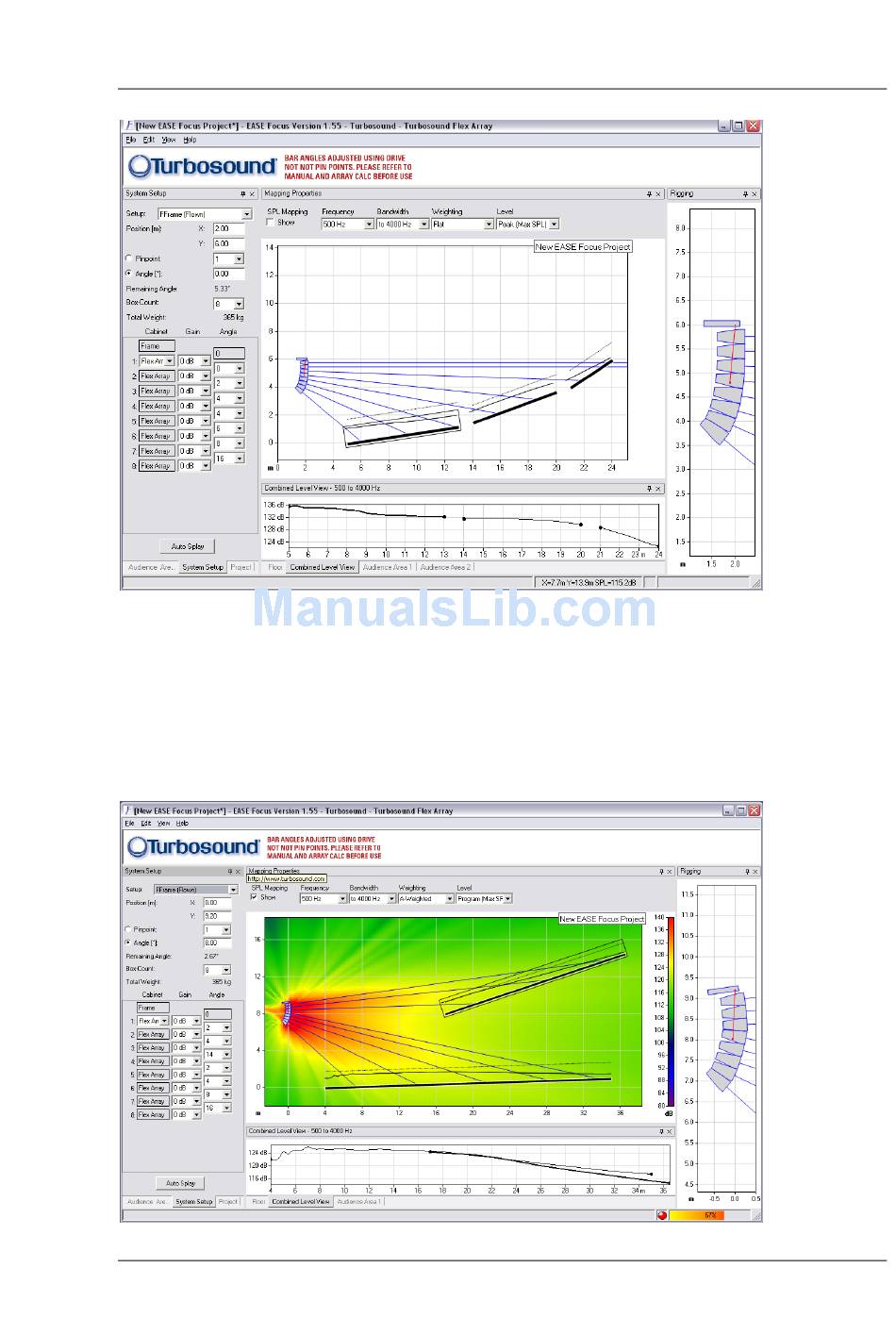

Now that the general design has been established the system performance must be mapped.
At the top of the main window there is an "SPL Mapping" checkbox. This will map the
system output at the frequency and bandwidth selected in the adjacent dropdown boxes. For
most applications a one-third octave weighted mapping gives realistic and useful data.
System Mapping Performance
FLEX ARRAY user manual
Page 25
