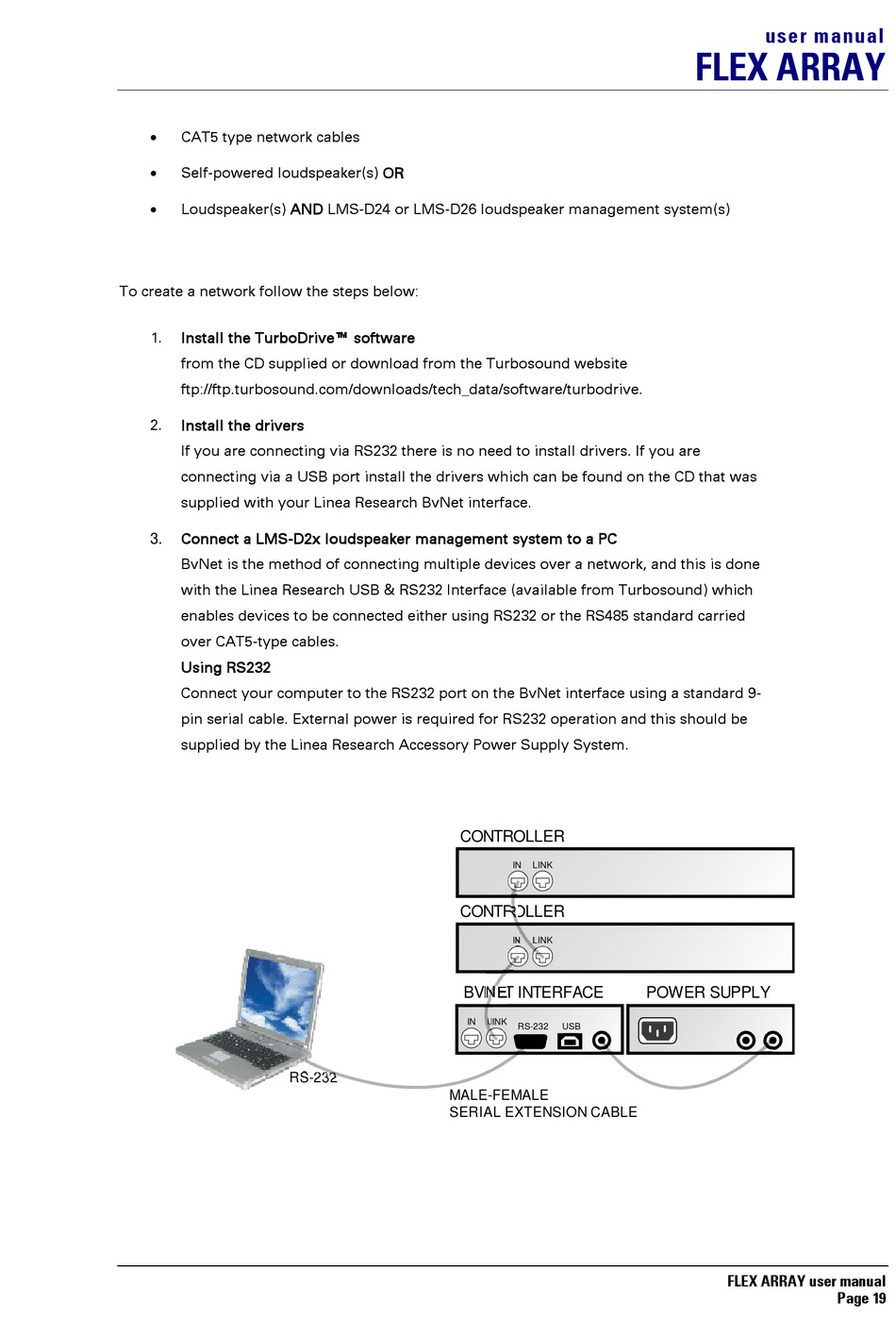

Turbosound Flex Array TFA-600H User Manual page 19


CAT5 type network cables

Self-powered loudspeaker(s) OR

Loudspeaker(s) AND LMS-D24 or LMS-D26 loudspeaker management system(s)
To create a network follow the steps below:
1. Install the TurboDrive™ software
from the CD supplied or download from the Turbosound website
ftp://ftp.turbosound.com/downloads/tech_data/software/turbodrive.
2. Install the drivers
If you are connecting via RS232 there is no need to install drivers. If you are
connecting via a USB port install the drivers which can be found on the CD that was
supplied with your Linea Research BvNet interface.
Connect a LMS-D2x loudspeaker management system to a PC
3.
BvNet is the method of connecting multiple devices over a network, and this is done
with the Linea Research USB & RS232 Interface (available from Turbosound) which
enables devices to be connected either using RS232 or the RS485 standard carried
over CAT5-type cables.
Using RS232
Connect your computer to the RS232 port on the BvNet interface using a standard 9-
pin serial cable. External power is required for RS232 operation and this should be
supplied by the Linea Research Accessory Power Supply System.
RS-232
MALE-FEMALE
SERIAL EXTENSION CABLE
CONTROLLER
IN LINK
CONTROLLER
IN LINK
BVNET INTERFACE
IN LINK
RS-232 USB
user manual
FLEX ARRAY
POWER SUPPLY
