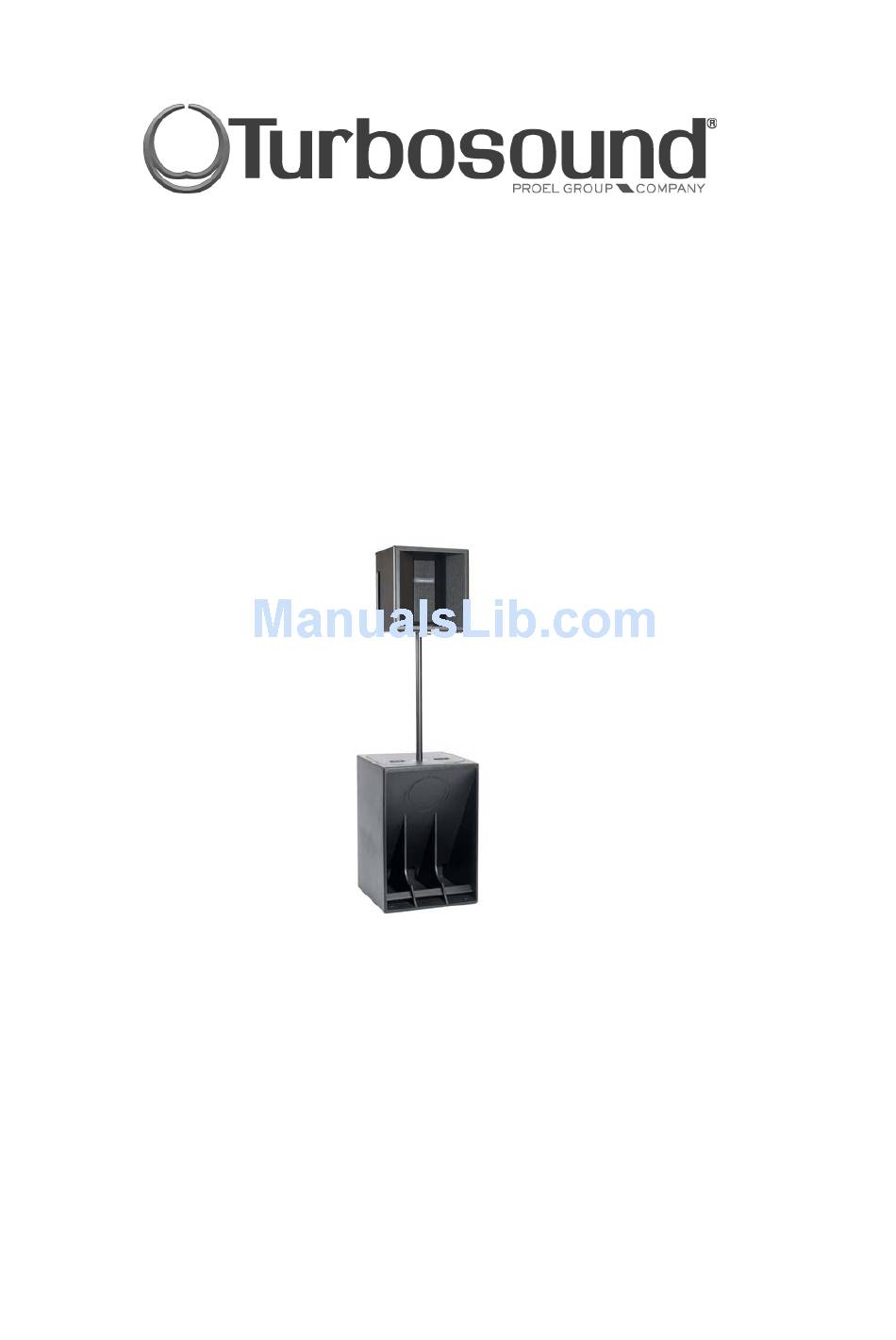

Page 1: User Guide
TMS SERIES USER GUIDE Turbosound Ltd Star Road, Partridge Green West Sussex RH13 8RY United Kingdom Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com Issue 1.3 © Turbosound Ltd... -
Page 2: Table Of Contents
TMS-Low ................................9 Technical Specifications ......................... 10 Spare Parts ................................10 Accessories .............................. 11 Warranty ................................... 11 Contact Information ..............................12 Customer Service ..............................12 Product Information ..............................12 TMS series user manual Page 2... -
Page 3: Introduction
By engaging in an on-going rigorous program of research and development all TURBOSOUND products are carefully engineered for world class performance and reliability. If you would like further information about this or any other TURBOSOUND product, please contact us. Detailed product information is available on our website at: www.turbosound.com We look forward to helping you in the near future. -

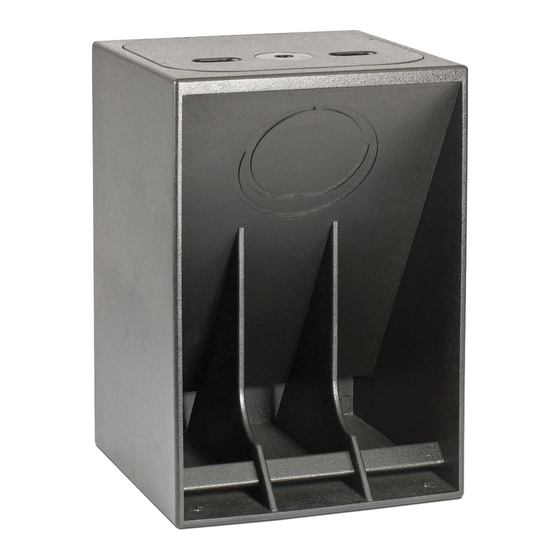

Page 4: Tms-Low Subwoofer
Speakon connections heavy-duty speaker cable with a minimum wire size of 12 gauge (1.5mm²), and preferably 10 gauge (2.5mm²) for longer LF Negative (-ve) runs. Always observe the correct polarity as shown. LF Positive (+ve) TMS series user manual Page 4... -
Page 5: Transportation
Tighten all fixings. Amplifier considerations TMS series loudspeaker enclosures should be driven by high quality power amplifiers designed for true professional use. Power amplifiers should be capable of delivering long term broadband power equal to the loudspeaker’s program power rating at its stated nominal impedance. -
Page 6: System Controllers
TMS loudspeaker system. Setup procedure for LMS series controllers: 1. Download and install the presets for TMS loudspeakers from the Turbosound website www.turbosound.com. 2. Power up the controller(s) and associated power amplifiers. 3. Press RECALL to select the appropriate program from the preset menu using the ‘A’ ROTARY ENCODER. -
Page 7: Installing The Tms-High Loudspeaker
To hang the cabinet from a standard truss structure, simply attach a scaffold clamp attached in place of a FY-PH pole adapter (above left). The flying yoke can also be used to permanently ceiling mount the cabinet with the pole adapter removed. TMS series user manual Page 7... -
Page 8: Wall Mounting
Maintenance If either of the drive units in your TMS series cabinet should cease functioning and need to be replaced or repaired, you are advised to remove the faulty unit from the cabinet and send it to a professional service centre authorised to repair Turbosound loudspeakers. -
Page 9: Product Dimensions
TMS series Product Dimensions TMS-High 452mm [17.8"] TMS-Low 576mm [22.7"] TMS series user manual Page 9... -
Page 10: Technical Specifications
Recone kit LS1817 LS-1817 18” (457mm) low frequency driver 05B5166 RC-1817 Recone kit 04A9335 CD-121 HF compression driver 05B9325 RD-121 Replacement HF diaphragm 07A806 T6 castor set of 4 Castor set for TMS Low TMS series user manual Page 10... -
Page 11: Accessories
Pole adapter Warranty This Turbosound product is warranted to the original end-user purchaser and all subsequent owners for a period of two (2) years for loudspeaker products from the original date of purchase. Warranty coverage includes defects in materials and workmanship. It does not include: ... -
Page 12: Contact Information
Address: ....................................................................................................Phone No: ................................. Invoice/Receipt No./Date ..........................Serial number: ..............................In keeping with a policy of continual improvement, Turbosound Limited reserves the right to alter specifications without prior notice. Contact Information Turbosound Ltd Star Road Partridge Green...
