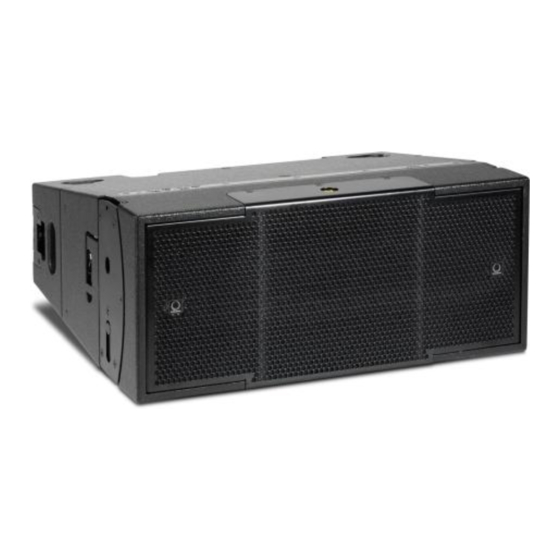

- Page 1 Quick Start Guide FLEX ARRAY TFA-600H/DP mid/high TFA-600HW/DP wide dispersion mid/high TFA-600L/DP low frequency Rigging User Guide (Please refer to www.turbosound.com for the latest updates) Version 1.2 December 2010 FLEX ARRAY Quick Start Guide - Page - 1...
- Page 2 Quick Start Guide FLEX ARRAY The Flex Array Flying System FLEX ARRAY Quick Start Guide - Page - 2...
-
Page 3: Safety Information
Do not use Turbosound rigging with other types or brands of loudspeakers. This practice may compromise safety standards and Turbosound will not be responsible for damage or injury so caused. Do not modify the rigging accessories, or use them in a way other than that described in this user manual. Rigging components supplied as part of a complete assembly are non-interchangeable and must not be exchanged with the component parts of any other assembly. -
Page 4: General Description
Quick Start Guide FLEX ARRAY The Health and Safety at Work Act 1974 The Supply of Machinery (Safety) Regulations 1992 The Lifting Operations and Lifting Equipment Regulations 1998 GENERAL DESCRIPTION To take full advantage of the extremely flexible properties of the Flex Array system, the rigging is fully integrated into the enclosure. - Page 5 The movable lift point can be traversed along the spine by means of a screw which is turned by a 22mm (7/8”) socket (available from Turbosound) fitted to a speed brace or electric drill. Turning the drive nut on the end of the shaft the lift point moves along the rear spine, tilting the load by varying the motor connection point relative to the centre of mass of the cluster.
- Page 6 Quick Start Guide FLEX ARRAY Important Safety Notes To ensure the continued safe operation of the FB-600 flybar the following points should be noted: A. The 100mm / 4” locking pin should always be fitted to lock the moving tilt point B.
- Page 7 Quick Start Guide FLEX ARRAY C. Under no circumstances should hands be placed in the open top of the spine when the flybar is in use. D. Two safety lifting lugs are provided for attaching wire safety rope. No other part of the flybar can be used for this purpose.
- Page 8 Quick Start Guide FLEX ARRAY E. Any components that are damaged should be repaired / replaced by an approved service centre. F. In the extremely unlikely event if the failure of the screw, the safety of the bar is not compromised. FLEX ARRAY Quick Start Guide - Page - 8...
- Page 9 Quick Start Guide FLEX ARRAY CF-600 Conversion Frame The conversion frame is used to interface between bass cabinets and mid/high cabinets in a flown column of Flex Array loudspeakers. The conversion frame has a SWL of 520kg which enables a column of up to a maximum of 12 TFA-600H cabinets to be suspended below it.
- Page 10 Quick Start Guide FLEX ARRAY CF-600 Conversion Frame in a Flown Column The conversion frame is fitted underneath the lowest TFA-600L low frequency cabinet in a flown column as shown in the diagram below. TFA-600H cabinets are suspended from the conversion frame using the captive ball-lock pins Connection to the first TFA-600H cabinet is made via two 10mm ball-lock pins which are engaged into the rear spine of the mid/high cabinet (one pin is located on the loudspeaker and one pin is located on the conversion...
- Page 11 Quick Start Guide FLEX ARRAY Ground Stacking with the CF-600 Conversion Frame In this application the conversion frame locates on the top of a ground stacked bass cabinet(s) and engages into the flygear of the first mid/high cabinet. The system allows for the lowest mid/high cabinet to be tilted down by approximately 8°.
- Page 12 Angle Setting 0° 2° 4° 6° 8° 10° 12° 14° 16° Turbosound Ltd, Star Road, Partridge Green, West Sussex RH13 8RY t: +44 (0)1403 711447 f: +44 (0)1403 710155 w: www.turbosound.com FLEX ARRAY Quick Start Guide - Page - 12...
