1.DESCRIPTION OF EACH COMPONENT (Cont.)

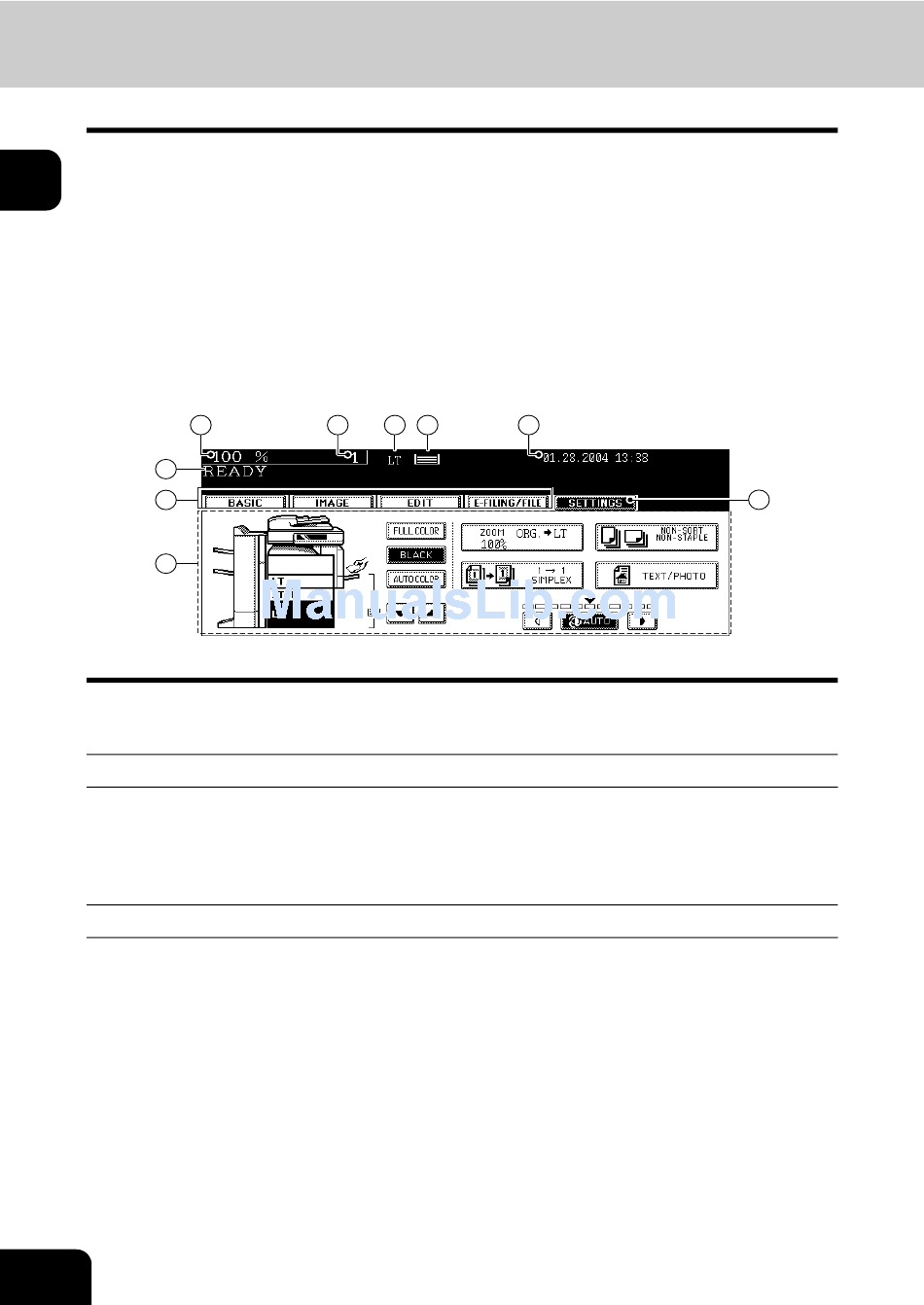

Touch Panel

When the power is turned on, and 'READY' is displayed, the basic screen of the copy function is shown on
1
the touch panel.
On the screen, currently set functions, selected functions and the copier status are shown via messages
and illustrations.
* The contents of the touch panel screens in this manual show the equipment with all options.
1: Message
2: Reproduction ratio
3: Total copy quantity
4: Currently selected drawer size
5: Remaining paper level
1
9
8

Message Display

The following information is shown on the touch panel:
Equipment status, operational instructions, cautionary messages, reproduction ratios, total copy quality,
paper size of a selected drawer, amount of paper in a selected drawer and the date and time.
Touch-buttons
The various function items are touch-button selectable. Press any buttons lightly with your finger.
- Index buttons
This button is used for switching the menu. The type and the number of the index buttons varies
depending on each function of Copy, Scan and Fax.
- Function setting area
This is an area for selecting and setting each function.
28
1.BEFORE USING THE EQUIPMENT
2 3
6: Date and time
7: Set functions confirmation button
8: Function setting area
9: Index buttons
4 5 6
7
