3. Control Panel Keys and Touch Panel

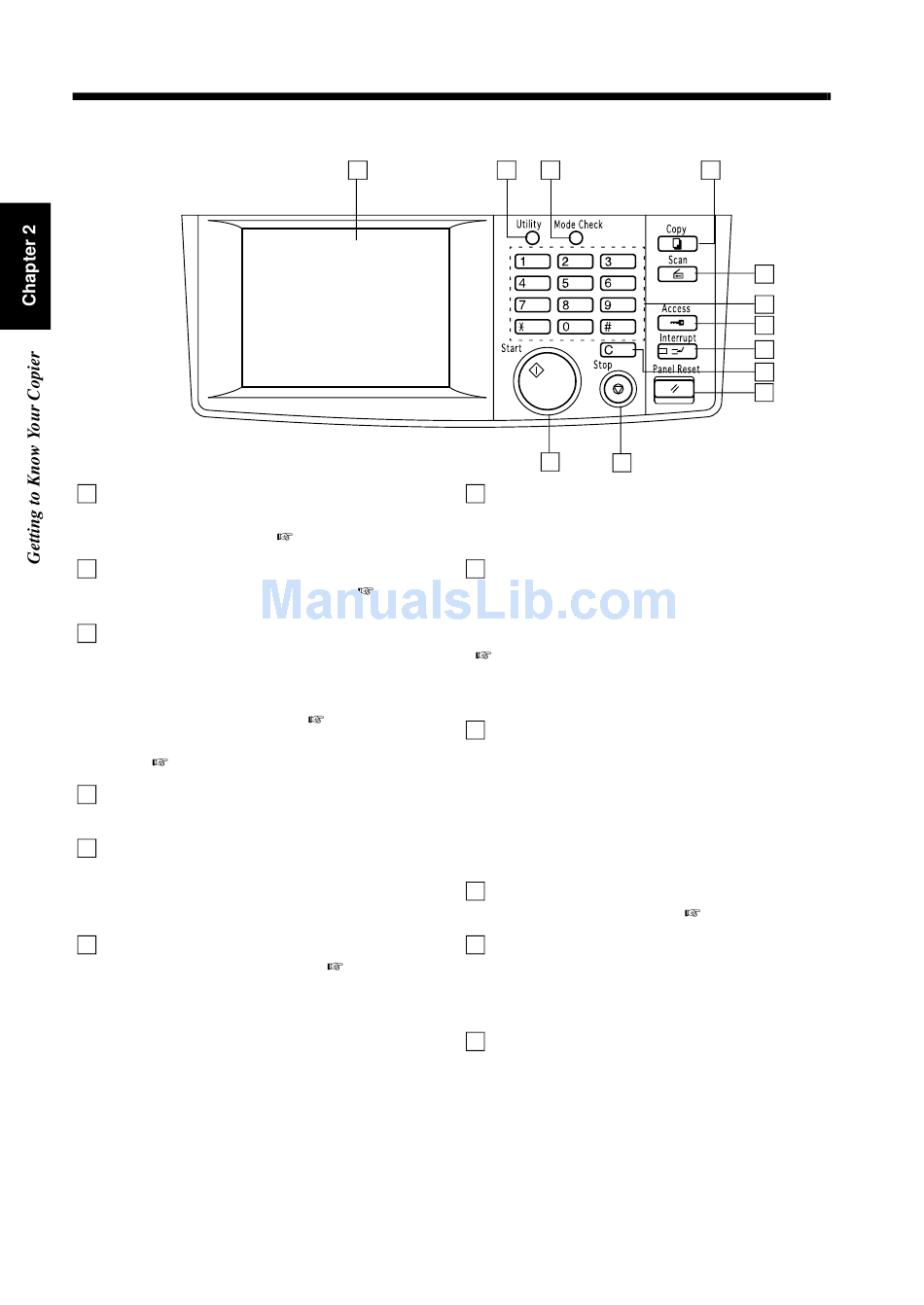

Control Panel Keys and Indicators

Touch Panel
1
• Use to make settings for, and programming of,
various copying functions. p.2-19
Utility Key
2
• Press to show the Utility Mode menu. p.5-2
Mode Check Key
3
• Lists the current settings on the screen.
From this screen you can access the setting
screen of a particular function and change or
cancel the setting as necessary. p.2-29
• Access to register the current settings in a
program. p.5-12
Copy Key
4
• Press to select the Copy mode.
Scan Key
5
• Press to select the Scanner mode.
For details, see the operator's manual for the
Scanner.
Access Mode Key
6
• Press to enter the access number.
• This key becomes valid only when Copy Track
of the Administrator mode available from User's
Choice is set.
1 2
10-Key Pad
7
• Use to set the various numeric values, including
the number of copies to be made.
Interrupt Key
8
• Press to interrupt a current job with a different
one.
Press again to return to the previous job.
p.2-29
• Lights to indicate that the machine is in the
Interrupt mode.
Clear Key
9
Press to:
• Reset the multi-copy entry to "1".
• Clear the settings entered from the 10-Key Pad
and other numeric values previously
programmed.
• Abandon the image data scanned.
10 Panel Reset Key
• Press to initialize all settings. p.2-29
Stop Key
11
p.2-31 Press to:
• Stop a print cycle.
• Stop a scanning cycle.
Start Key
12
• Press to start a scanning or print cycle.
3 4
