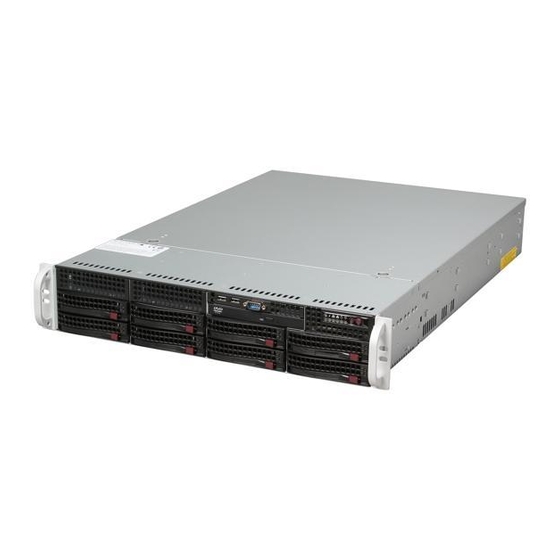

Supero SUPERSERVER 6026T-3RF User Manual
  1. Manuals
  2. Brands
  3. Supero Manuals
  4. Server
  5. SUPERSERVER 6026T-3RF
  6. User manual

Supero SUPERSERVER 6026T-3RF User Manual

Superserver
Hide thumbs Also See for SUPERSERVER 6026T-3RF:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
S
UPER
®
S
S
6026T-3RF
UPER
ERVER
USER'S MANUAL
1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supero SUPERSERVER 6026T-3RF

Summary of Contents for Supero SUPERSERVER 6026T-3RF

  • Page 1 UPER ® 6026T-3RF UPER ERVER USER’S MANUAL 1.0a...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It pro- vides information for the installation and use of the SuperServer 6026T-3RF. Instal- lation and maintainance should be performed by experienced technicians only. The SuperServer 6026T-3RF is a high-end server based on the SC825TS-R720LPB 2U rackmount chassis and the X8DT3-F dual processor serverboard.
  • Page 4 UPER ERVER 6026T-3RF User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X8DT3-F serverboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfi guring the serverboard.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 6026T-3RF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Onboard SAS ....................1-2 Serial ATA ....................... 1-2 PCI Expansion Slots ..................1-3 Onboard Controllers/Ports ................1-3 Graphics Controller ..................
  • Page 7 Table of Contents Checking the Drive Bay Setup ..............2-10 Chapter 3 System Interface Overview ......................3-1 Control Panel Buttons ..................3-1 Reset ....................... 3-1 Power ......................3-1 Control Panel LEDs ..................3-2 Power Fail ....................... 3-2 Overheat/Fan Fail: ..................3-2 NIC1 ........................
  • Page 8 UPER ERVER 6026T-3RF User's Manual Serverboard Details ..................5-12 X8DT3-F Quick Reference ................5-13 Connector Defi nitions ................... 5-14 5-10 Jumper Settings .................... 5-20 5-11 Onboard Indicators ..................5-23 5-12 Floppy, SAS and SATA Ports ................ 5-24 5-13 Installing Software ..................5-26 Supero Doctor III ...................

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 6026T-3RF is a high-end server comprised of two main subsys- tems: the SC825TQ-R720LPB 2U server chassis and the X8DT3-F dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi...

  • Page 10: Serverboard Features

    ERVER 6026T-3RF User's Manual Serverboard Features At the heart of the SuperServer 6026T-3RF lies the X8DT3-F, a dual processor serverboard based on the Intel IOH-36D + ICH10R chipset and designed to provide maximum performance. Below are the main features of the X8DT3-F. (See Figure 1-1 for a block diagram of the chipset).

  • Page 11: Pci Expansion Slots

    Chapter 1: Introduction PCI Expansion Slots The X8DT3-F has three PCI Express 2.0 x8 slots, one PCI Express x4 slot and two 32-bit PCI slots. Onboard Controllers/Ports A fl oppy drive connector is included on the serverboard as well as two onboard ATA/100 connectors, which support IDE hard drives or ATAPI devices.

  • Page 12: Front Control Panel

    ERVER 6026T-3RF User's Manual Front Control Panel The control panel on the SuperServer 6026T-3RF provides you with system monitor- ing and control. LEDs indicate system power, HDD activity, network activity, system overheat and power supply failure. A main power button and a system reset button are also included.

  • Page 13: System Block Diagram

    Chapter 1: Introduction Figure 1-1. Intel IOH-36D/ICH10R Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. #1-6 #0-6 #1-5 #0-5 #1-4 #0-4 #1-3 #0-3 6 PHASE 6 PHASE #1-2 #0-2 #1-1 #0-1 CPU #1 CPU #2 (Optional)

  • Page 14: Contacting Supermicro

    UPER ERVER 6026T-3RF User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 15: Chapter 2 Server Installation

    Unpacking the System You should inspect the box the SuperServer 6026T-3RF was shipped in and note if it was damaged in any way. If the server itself shows damage you should fi le a damage claim with the carrier who delivered it.

  • Page 16: Rack Precautions

    UPER ERVER 6026T-3RF User's Manual • This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units.

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Installing The System Into A Rack

    UPER ERVER 6026T-3RF User's Manual Installing the System into a Rack This section provides information on installing the SC825 chassis into a rack unit with the quick-release rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.
  • Page 19 Chapter 2: Server Installation Figure 2-1. Separating the Rack Rails Separating the Inner and Outer Rails Rail Assembly Locate the rail assembly in the chassis packaging. Extending the Rails Extend the rail assembly by pulling it outward. Press the quick-release tab. Quick- Separate the inner rail extension from Release Tab...

  • Page 20: Outer Rack Rails

    UPER ERVER 6026T-3RF User's Manual Figure 2-2. Assembling the Outer Rails Outer Rack Rails Outer rails attach to the rack and hold the chassis in place. The outer rails for the SC825 chassis extend between 30 inches and 33 inches.
  • Page 21 Chapter 2: Server Installation Figure 2-3. Installing the Rack Rails Installing the Chassis into a Rack Extend the outer rails as illustrated above. Align the inner rails of the chassis with the outer rails on the rack. Slide the inner rails into the outer rails, keeping the pressure even on both sides.

  • Page 22: Checking The Serverboard Setup

    UPER ERVER 6026T-3RF User's Manual Checking the Serverboard Setup After you install the 6026T-3RF in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. Accessing the inside of the System First, grasp the two handles on either side and pull the unit straight out until it locks (you will hear a "click").
  • Page 23 Chapter 2: Server Installation Figure 2-3. Accessing the Inside of the System...

  • Page 24: Checking The Drive Bay Setup

    UPER ERVER 6026T-3RF User's Manual Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SAS/SATA drives have been properly installed and all connections have been made. Checking the Drives All drives are accessable from the front of the server. For servicing the DVD- ROM and fl...

  • Page 25: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carri- ers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi...

  • Page 26: Control Panel Leds

    SUPERSERVER 6026T-3RF User's Manual Control Panel LEDs The control panel located on the front of the chassis has several LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 27: Hdd

    Chapter 3: System Interface Indicates IDE channel activity. On the SuperServer 6026T-3RF, this LED indicates hard drive and/or DVD-ROM drive activity when fl ashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 28 SUPERSERVER 6026T-3RF User's Manual Notes...

  • Page 29: Chapter 4 System Safety

    System Safety Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 6026T-3RF from damage: • Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 30: General Safety Precautions

    General Safety Precautions Follow these rules to ensure general safety: • Keep the area around the 6026T-3RF clean and free of clutter. • The 6026T-3RF weighs approximately 57 lbs (25.9 kg.) when fully loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight.

  • Page 31: Esd Precautions

    Chapter 4: System Safety • After accessing the inside of the system, close the system back up and secure it to the rack unit with the retention screws after ensuring that all connections have been made. ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other.

  • Page 32: Operating Precautions

    UPER ERVER 6026T-3RF User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 6026T- 3RF is operating to assure proper cooling. Out of warranty damage to the system can occur if this practice is not strictly followed.

  • Page 33: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X8DT3-F serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 34: Unpacking

    UPER ERVER 6026T-3RF User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid electrical static dis- charge. When unpacking the board, make sure the person handling it is static protected. Serverboard Installation This section explains the fi rst step of physically mounting the X8DT3-F into the SC825TQ-R720LP chassis.

  • Page 35: Connecting Cables

    Chapter 5: Advanced Serverboard Setup Connecting Cables Now that the serverboard is installed, the next step is to connect the cables to the board. These include the data cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the fl...

  • Page 36: I/O Ports

    UPER ERVER 6026T-3RF User's Manual Figure 5-1. Control Panel Header Pins Ground x (Key) x (Key) Power On LED HDD LED NIC1 LED NIC2 LED OH/Fan Fail LED Power Fail LED Ground Reset (Button) Ground Power (Button) I/O Ports The I/O ports are color coded in conformance with the PC 99 specifi cation. See Figure 5-2 below for the colors and locations of the various I/O ports.

  • Page 37: Installing The Processor And Heatsink

    Chapter 5: Advanced Serverboard Setup Installing the Processor and Heatsink When handling the processor package, avoid placing direct pressure on the label area of the fan. Notes: Always connect the power cord last and always remove it before adding, re- moving or changing any hardware components.
  • Page 38 UPER ERVER 6026T-3RF User's Manual After removing the plastic cap, use your thumb and the index fi nger to hold the CPU at the north and south center edges. Align the CPU key (the semi-circle cutout) with the socket key (the notch below the gold color dot on the side of the socket).

  • Page 39: Installing The Heatsink

    fi lm is not removed from the heatsink. Apply the proper amount of ther- mal grease on the CPU. If your Note: The 6026T-3RF uses passive heatsink came with a thermal pad, heatsinks. please ignore this step.

  • Page 40: Removing The Heatsink

    UPER ERVER 6026T-3RF User's Manual Removing the Heatsink Warning: We do not recommend removing the CPU or the heatsink. If you do need to remove the heatsink, please follow the instructions below to prevent damage to the CPU or other components.

  • Page 41: Memory Support

    Chapter 5: Advanced Serverboard Setup Installing Memory CAUTION! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X8DT3-F supports up to 96 GB of DDR3 1333/1066/800 registered ECC SDRAM or 24 GB of DDR3-1333/1066/800 unbuffered ECC SDRAM. Three-way interleaved memory is supported.

  • Page 42: Memory Support

    UPER ERVER 6026T-3RF User's Manual Memory Support The X8DT3-F supports up to 96 GB of Registered ECC DDR3-1333/1066/800 MHz registered ECC SDRAM in 12 DIMM slots. DIMM sizes of 8 GB, 4 GB, 2 GB and 1 GB are supported.

  • Page 43: Adding Pci Add-On Cards

    Memory available for the OS & other applications 2.84 GB Adding PCI Add-On Cards The 6026T-3RF can accommodate six low-profi le, full-length PCI add-on cards. Installing an Add-on Card Begin by removing the shield for the PCI slot you wish to populate.

  • Page 44: Serverboard Details

    UPER ERVER 6026T-3RF User's Manual Serverboard Details Figure 5-4. X8DT3-F Layout (not drawn to scale) X8DT3-F COM1 COM2 MOUSE USB 0/1 Controller Controller Controller Battery Fan8/ Dedicated LAN JLAN1 JLAN2 CPU2 FAN JPW2 CPU1 BMC/VGA Controller JPG1 JBT1 JPW3 USB6/7...

  • Page 45: X8Dt3-F Quick Reference

    Chapter 5: Advanced Serverboard Setup X8DT3-F Quick Reference Jumper Description Default Setting JBT1 CMOS Clear See Section 5-10 C1/JI SMB to PCI Slots Pins 2-3 (Disabled) BMC Enable/Disable Pins 1-2 (Disabled) JPG1 VGA Enable/Disable Pins 1-2 (Reset) JPL1/JPL2 JLAN1/2 Enable/Disable Pins 1-2 (Enabled) JPT1 TPM Support Enable/Disable...

  • Page 46: Connector Defi Nitions

    UPER ERVER 6026T-3RF User's Manual Connector Defi nitions ATX Power 24-pin Connector Pin Defi nitions (JPW3) Pin# Defi nition Pin # Defi nition Main ATX Power Supply +3.3V +3.3V Connector -12V +3.3V The primary power supply connec- tor (JPW3) meets the SSI EPS 12V PS_ON specifi...
  • Page 47 Chapter 5: Advanced Serverboard Setup Power Fail LED PWR Fail LED The Power Fail LED connection is Pin Defi nitions (JF1) located on pins 5 and 6 of JF1. Re- Pin# Defi nition fer to the table on the right for pin defi...
  • Page 48 UPER ERVER 6026T-3RF User's Manual Power On LED Power LED Pin Defi nitions (JF1) The Power On LED connector is lo- Pin# Defi nition cated on pins 15 and 16 of JF1 (use 5V Stby JLED for a 3-pin connector). This...
  • Page 49 Chapter 5: Advanced Serverboard Setup Chassis Intrusion Chassis Intrusion Pin Defi nitions (JL1) The Chassis Intrusion header is des- Pin# Defi nition ignated JL1. Attach an appropriate Intrusion Input cable from the chassis to inform you Ground of a chassis intrusion when the chas- sis is opened Wake-On-LAN Wake-On-LAN...
  • Page 50 UPER ERVER 6026T-3RF User's Manual Serial Ports Serial Port Pin Defi nitions (COM1/COM2) Two serial ports are included on the Pin # Defi nition Pin # Defi nition serverboard. COM1 is a backpanel port and COM2 is a header located near the JWOL header.
  • Page 51 Chapter 5: Advanced Serverboard Setup Power Supply SMBus I2C Header Power Supply SMBus I C Header Pin Defi nitions (J6) Pin# Defi nition The power System Management Bus Clock C) header is used to monitor the status of the power supply, fan and Data system temperature.

  • Page 52: 5-10 Jumper Settings

    UPER ERVER 6026T-3RF User's Manual 5-10 Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used Connector to choose between optional settings. Pins Jumpers create shorts between two pins to change the function of the con- nector.
  • Page 53 Chapter 5: Advanced Serverboard Setup VGA Enable/Disable VGA Enable/Disable Jumper Settings (JPG1) JPG1 allows you to enable or disable Jumper Setting Defi nition the VGA port. The default position is on Pins 1-2 Enabled pins 1 and 2 to enable VGA. See the Pins 2-3 Disabled table on the right for jumper settings.
  • Page 54 UPER ERVER 6026T-3RF User's Manual Watch Dog Enable/Disable Watch Dog Jumper J21 controls the Watch Dog Jumper Settings (J21) function. Watch Dog is a system moni- Jumper Setting Defi nition tor that can reboot the system when a Pins 1-2 Reset software application hangs.

  • Page 55: 5-11 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup 5-11 Onboard Indicators LAN LEDs The Ethernet ports (located beside the VGA port) have two LEDs. On each JLAN1/2 LED port, the yellow LED fl ashes to indi- (Connection Speed Indicator) cate activity while the other LED may LED Color Defi...

  • Page 56: 5-12 Floppy, Sas And Sata Ports

    UPER ERVER 6026T-3RF User's Manual SAS Heartbeat/Activity LED Indicators Two SAS LEDs are located near the LSI Onboard SAS LEDs 1068E controller chip. LES1 is a SAS (LES1/LES2) Defi nition Heartbeat LED and LES2 is a SAS Ac- LES1 Blinking: SAS: Normal tivity LED.
  • Page 57 Chapter 5: Advanced Serverboard Setup SATA Port Pin Defi nitions (I-SATA0~I-SATA5) Pin # Defi nition SATA Ports Ground There are no jumpers to confi gure the onboard SATA ports. See the table on the right for pin defi nitions. Ground Ground Floppy Drive Connector Floppy Drive Connector...

  • Page 58: 5-13 Installing Software

    UPER ERVER 6026T-3RF User's Manual 5-13 Installing Software After the hardware has been installed, you should fi rst install the operating system and then the drivers. The necessary drivers are all included on the Supermicro CDs that came packaged with your motherboard.

  • Page 59: Supero Doctor Iii

    Chapter 5: Advanced Serverboard Setup Supero Doctor III The Supero Doctor III program is a Web base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The Supero Doctor III program included on the CD-ROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 60 Supero Doctor III Interface Display Screen (Remote Control) Note: SD III Software Revision 1.0 can be downloaded from our Web Site at: ftp://ftp. supermicro.com/utility/Supero_Doctor_III/. You can also download the SDIII User's Guide at: <http://www.supermicro.com/PRODUCT/Manuals/SDIII/UserGuide.pdf>. For Linux, we will recommend using Supero Doctor II. 5-28...

  • Page 61: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC825TQ-R720LPB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 62: Control Panel

    UPER ERVER 6026T-3RF User's Manual Figure 6-1. Front and Rear Chassis Views 3.5" Drive Bays (2) Slim DVD-ROM Drive USB Ports (2), COM Port Control Panel SATA Drives (8) Floppy Drive (optional) System Reset Main Power Keyboard/Mouse Ports IPMI LAN 7 Low-Profi...

  • Page 63: System Fans

    Chapter 6: Advanced Chassis Setup System Fans Three 8-cm hot-swap fans provide the cooling for the system. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components. See Figure 6-2.

  • Page 64: Drive Bay Installation/Removal

    UPER ERVER 6026T-3RF User's Manual Figure 6-2. Removing System Cooling Fans Drive Bay Installation/Removal Accessing the Drive Bays SAS/SATA Drives: You do not need to access the inside of the chassis or remove power to replace or swap SAS/SATA drives. Proceed to the next step for instructions.

  • Page 65: Sas/Sata Drive Installation

    Chapter 6: Advanced Chassis Setup SAS/SATA Drive Installation These drives are mounted in drive carriers to simplify their installation and removal from the chassis. The carriers also help promote proper airfl ow for the drives. For this reason, even empty carriers without hard drives installed must remain in the chassis.

  • Page 66: Hard Drive Backplane

    UPER ERVER 6026T-3RF User's Manual Figure 6-4. Removing a SAS/SATA Drive Carrier Handle Release Button Important: All of the drive carriers must remain in the drive bays to maintain proper cooling airfl ow. Hard Drive Backplane The hard drives plug into a backplane that provides power, drive ID and bus termi- nation.

  • Page 67: Dvd-Rom Installation

    The top cover of the chassis must be opened to gain full access to the DVD-ROM drive bay. The 6026T-3RF accomodates only slim type DVD-ROM drives. Side mounting brackets are typically needed to mount a slim DVD-ROM drive in the server.

  • Page 68: Power Supply

    ERVER 6026T-3RF User's Manual Power Supply The SuperServer 6026T-3RF has a 720 watt redundant power supply consisting of two power modules. Each power supply module has an auto-switching capabil- ity, which enables it to automatically sense and operate at a 100V - 240V input voltage.

  • Page 69: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the X8DT3-F. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter de- scribes the basic navigation of the AMI BIOS Setup Utility setup screens. Starting BIOS Setup Utility To enter the AMI BIOS Setup Utility screens, press the <Delete>...

  • Page 70: Starting The Setup Utility

    UPER ERVER 6026T-3RF User's Manual Starting the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS Setup Utility. From the main menu, you can access the other setup screens.
  • Page 71 Chapter 7: BIOS Supermicro X8DT3 BIOS Build Version: This item displays the BIOS revision used in your system. BIOS Build Date: This item displays the date when this BIOS was completed. AMI BIOS Core Version: This item displays the revision number of the AMI BIOS Core upon which your BIOS was built.

  • Page 72: Advanced Setup Confi Gurations

    UPER ERVER 6026T-3RF User's Manual Advanced Setup Confi gurations Use the arrow keys to select Boot Setup and hit <Enter> to access the submenu items: BOOT Features Quick Boot If Enabled, this option will skip certain tests during POST to reduce the time needed for system boot.

  • Page 73: Processor And Clock Options

    Chapter 7: BIOS Hit 'Del' Message Display This feature displays "Press DEL to run Setup" during POST. The options are Enabled and Disabled. Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture"...
  • Page 74 UPER ERVER 6026T-3RF User's Manual Hardware Prefetcher (Available when supported by the CPU) If set to Enabled, the hardware pre fetcher will pre fetch streams of data and instruc- tions from the main memory to the L2 cache in the forward or backward manner to improve CPU performance.

  • Page 75: Advanced Chipset Control

    Chapter 7: BIOS Clock Spread Spectrum Select Enable to use the feature of Clock Spectrum, which will allow the BIOS to monitor and attempt to reduce the level of Electromagnetic Interference caused by the components whenever needed. The options are Disabled and Enabled. Advanced Chipset Control The items included in the Advanced Settings submenu are listed below: CPU Bridge Confi...
  • Page 76 UPER ERVER 6026T-3RF User's Manual Demand Scrubbing A memory error-correction scheme where the Processor writes corrected data back into the memory block from where it was read by the Processor. The op- tions are Enabled and Disabled. Patrol Scrubbing A memory error-correction scheme that works in the background looking for and correcting resident errors.
  • Page 77 Chapter 7: BIOS DIMM Pitch This is the physical space between each DIMM module. Each step is in 1/1000 of an inch. The default is [400]. Press "+" or "-" on your keyboard to change this value. North Bridge Confi guration This feature allows the user to confi...
  • Page 78 UPER ERVER 6026T-3RF User's Manual Legacy USB Support Select Enabled to use Legacy USB devices. If this item is set to Auto, Legacy USB support will be automatically enabled if a legacy USB device is installed on the motherboard, and vise versa. The settings are Disabled, and Enabled.
  • Page 79 Chapter 7: BIOS Host Interface. (Take caution when using this function. This feature is for ad- vanced programmers only.) The options are IDE, RAID (Intel), RAID (Adaptec) and AHCI. SATA#2 Confi guration Selecting Enhanced will set SATA#2 to native SATA mode. The options are Disabled, and Enhanced.
  • Page 80 UPER ERVER 6026T-3RF User's Manual Select 0 to allow the AMI BIOS to use PIO mode 0. It has a data transfer rate of 3.3 MBs. Select 1 to allow the AMI BIOS to use PIO mode 1. It has a data transfer rate of 5.2 MBs.
  • Page 81 Chapter 7: BIOS Select UDMA5 to allow the BIOS to use Ultra DMA mode 5. It has a data transfer rate of 133 MBs. Select UDMA6 to allow the BIOS to use Ultra DMA mode 6. It has a data transfer rate of 133 MBs.
  • Page 82 UPER ERVER 6026T-3RF User's Manual PCI IDE Bus Master When enabled, the BIOS uses PCI bus mastering for reading/writing to IDE drives. The options are Disabled and Enabled. Slot 1 Option ROM~Slot 6 Option ROM Select Enabled to enable Slot 1 Option ROM~Slot 6 Option ROM, which will allow you to boot the computer from a PCI device installed on a PCI slot.
  • Page 83 Chapter 7: BIOS Watch Dog Timer If enabled, the Watch Dog Timer will allow the system to reboot when it is inactive for more than 5 minutes. The options are Enabled and Disabled. Remote Access Confi guration Remote Access This allows the user to enable the Remote Access feature. The options are Dis- abled and Enabled.

  • Page 84: System Health Monitor

    UPER ERVER 6026T-3RF User's Manual Sredir Memory Display Delay This feature defi nes the length of time in seconds to display memory information. The options are No Delay, Delay 1 Sec, Delay 2 Sec, and Delay 4 Sec. System Health...
  • Page 85 Chapter 7: BIOS information that the motherboard can read. This ‘Temperature Threshold’ or ‘Tem- perature Tolerance’ has been assigned at the factory and is the baseline on which the motherboard takes action during different CPU temperature conditions (i.e., by increasing CPU Fan speed, triggering the Overheat Alarm, etc). Since CPUs can have different ‘Temperature Tolerances’, the installed CPU can now send informa- tion to the motherboard what its ‘Temperature Tolerance’...
  • Page 86 UPER ERVER 6026T-3RF User's Manual Voltage Monitoring CPU1 Vcore/CPU2 Vcore, CPU1 DIMM/CPU2 DIMM, 1.5V, 3.3Vcc (V), 3.3V SB (V), 12Vcc (V), 5Vin, and Battery Voltage. System Fan Monitor This feature allows the user to decide how the system controls the speeds of the onboard fans.

  • Page 87: Trusted Computing

    Chapter 7: BIOS pendency on other timestamp calculation devices, such as an x86 RDTSC Instruc- tion embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Enabled and Disabled. Trusted Computing TCG/TPM (Trusted Platform Module) Support Select Yes on this item and enable the TPM jumper on the motherboard to enable...
  • Page 88 UPER ERVER 6026T-3RF User's Manual • Timestamp • Generator ID • Event Message Format User • Event Sensor Type • Event Sensor Number, • Event Dir Type • Event Data. Clear BMC System Event Log Clear BMC System Log Select OK and press the <Enter> key to clear the BMC system log. Select Cancel to keep the BMC System log.
  • Page 89 Chapter 7: BIOS Allocation) to allow the host server to allocate an IP address based on a table containing MAC Address/IP Address pairs that are manually entered (probably by a network administrator). Only clients with a MAC address listed in the MAC/ IP Address Table will be assigned an IP address.
  • Page 90 UPER ERVER 6026T-3RF User's Manual Subnet Mask This item displays the current subnet mask setting for your IPMI connection. VLAN Tagging Select Enabled to enable VLAN (Virtual LAN) Tagging support which allows mul- tiple networks to transparently share the same physical network without leaking information between the bridged networks.

  • Page 91: Security Settings

    Chapter 7: BIOS Event Message for PEF Action This enables of disables Event Messages for PEF action. Refer to Table 24.6 of the IPMI 1.5 Specifi cation for more information at www.intel.com. The options are Disabled and Enabled. BMC Watch Dog Timer Action Allows the BMC to reset or power down the system if the operating system hangs or crashes.

  • Page 92: Boot Confi Guration

    UPER ERVER 6026T-3RF User's Manual Supervisor Password This item indicates if a Supervisor password has been entered for the system. "Not Installed" means a Supervisor password has not been used. User Password This item indicates if a user password has been entered for the system. "Not In- stalled"...
  • Page 93 Chapter 7: BIOS Boot Device Priority This feature allows the user to specify the sequence of priority for the Boot Device. The settings are 1st boot device, 2nd boot device, 3rd boot device, 4th boot device, 5th boot device and Disabled. •...

  • Page 94: Exit Options

    UPER ERVER 6026T-3RF User's Manual Exit Options Select the Exit tab from the AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Exit When you have completed the system confi guration changes, select this option to leave the BIOS Setup Utility and reboot the computer, so the new system con- fi...

  • Page 95: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 96 UPER ERVER 6026T-3RF User's Manual Notes...

  • Page 97: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors Single or dual Intel® Xeon 5500 Series processors in LGA1336 type sockets (with a maximum TDP <100W; both CPUs must be of the same type) Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel IOH-36D/ICH10R chipset BIOS...
  • Page 98 UPER ERVER 6026T-3RF User's Manual Serverboard X8DT3-F (Extended ATX form factor) Dimensions: 12 x 13 in (305 x 330 mm) Chassis SC825TQ-R720LPB (2U rackmount) Dimensions: (WxHxD) 16.8 x 3.5 x 25.5 in. (427 x 89 x 648 mm) Weight Gross (Bare Bone): 57 lbs. (25.9 kg.)
  • Page 99 Appendix B: System Specifi cations California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”...
  • Page 100 UPER ERVER 6026T-3RF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
