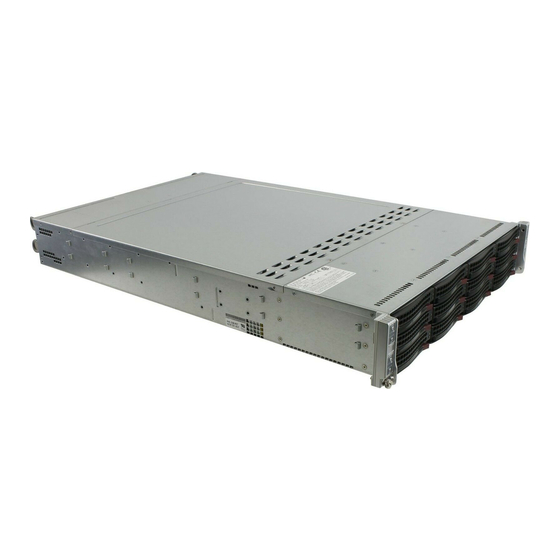

Supero SUPERSERVER 6027TR-HTRF+ User Manual

Superserver 6027tr-htrf+; 6027tr-h70rf+; 6027tr-h71rf+
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
UPER
®
SUPERSERVER
6027TR-HTRF+
6027TR-H70RF+
6027TR-H71RF+
SUPERSERVER
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERSERVER 6027TR-HTRF+ and is the answer not in the manual?

Questions and answers

Related Manuals for Supero SUPERSERVER 6027TR-HTRF+

Summary of Contents for Supero SUPERSERVER 6027TR-HTRF+

  • Page 1 UPER ® SUPERSERVER 6027TR-HTRF+ 6027TR-H70RF+ 6027TR-H71RF+ SUPERSERVER Revision 1.0...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 6027TR-HTRF+/H70RF+/H71RF+. Installation and maintainance should be performed by experienced technicians only. The SuperServer 6027TR-HTRF+/H70RF+/H71RF+ are all high-end servers based on the SC827HQ-R1620B 2U rackmount chassis and the dual processor X9DRT-HF+ serverboard.
  • Page 4 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Chapter 3: System Interface Refer here for details on the system interface, which includes the functions and information provided by the control panel on the chassis as well as other LEDs located throughout the system. Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Mounting Rails ....................1-5 Advanced Power Management ............... 1-5 Intel® Intelligent Power Node Manager (NM) ..........1-5 Manageability Engine (ME) ................1-5 Contacting Supermicro ..................1-7 2U Twin : System Notes ................. 1-8 Nodes ......................1-8 System Power ....................1-8 SAS/SATA Backplane/Drives ................
  • Page 7 Table of Contents Rack Mounting Considerations ............... 2-3 Ambient Operating Temperature ..............2-3 Reduced Airfl ow ..................2-3 Mechanical Loading ................... 2-3 Circuit Overloading ..................2-3 Reliable Ground ..................2-3 Installing the System into a Rack ..............2-4 Separating the Sections of the Rack Rails ............. 2-4 Installing the Inner Rail Extension ..............
  • Page 8 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Connecting Data Cables ................. 5-2 Rear I/O Ports ....................5-2 Processor and Heatsink Installation..............5-3 Installing a Passive CPU Heatsink ..............5-7 Removing the Passive Heatsink ..............5-8 Installing Memory .................... 5-9 Memory Support ....................5-9 Maximum Memory ...................
  • Page 9 Table of Contents Accessing the Drive Bays ................6-16 6-11 Power Supply ....................6-20 Power Supply Replacement ................6-20 Power Supply Replacement ................6-20 Chapter 7 BIOS Introduction ...................... 7-1 Starting BIOS Setup Utility ................7-1 How To Change the Confi guration Data ............7-1 Starting the Setup Utility .................
  • Page 10 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Notes...

  • Page 11: Chapter 1 Introduction

    Four (4) SAS2 LSI2008 HD adapter cards (BPN-ADP-SAS2-L6I-O-P) 6027TR-H71RF+ Only: Four (4) SAS2 LSI2108 HD adapter cards (BPN-ADP-SAS2-H6IR-O-P) • One (1) rails set (MCP-290-00053-0N) Note: a complete list of safety warnings is provided on the Supermicro web site at http://www.supermicro.com/about/policies/safety_information.cfm...

  • Page 12: Serverboard Features

    E5-2600 series processors (Socket R LGA 2011). Please refer to the serverboard description pages on our web site for a complete listing of supported processors (www.supermicro.com). Memory The X9DRT-HF+ has sixteen (16) DIMM slots supporting up to 512 GB of DDR3-1600/1333/1066/800 MHz speed registered ECC SDRAM in up to 512 MB, 1 GB, 2 GB, 4 GB, 8 GB, 16 GB or 32 GB sizes at 1.35V or 1.5V...

  • Page 13: Sas

    USB header and one Type A USB connector are included on the serverboard), an IPMI 2.0 dedicated LAN port and two Ethernet ports. Note: For IPMI Confi guration Instructions, please refer to the Embedded BMC Confi guration User's Guide available @ http://www.supermicro.com/support/ manuals/ for IPMI 2.0 system. Graphics Controller ®...

  • Page 14: Server Chassis Features

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Server Chassis Features The following is a general outline of the main features of the SC827 server chassis. System Power Each SC827 chassis model includes a high-effi ciency 80-plus Platinum certifi ed power supply, rated at 1620 Watts plus one redundant backup power supply. In the unlikely event your power supply fails, replacement is simple and can be accomplished without tools.

  • Page 15: Air Shrouds

    Chapter 1: Introduction Air Shrouds The SC827 chassis includes four plastic air shrouds that direct the airfl ow where cooling is needed on each serverboard. Always use the air shroud included with your chassis on each serverboard. Mounting Rails The SC827 includes a set of quick-release rails, and can be placed in a rack for secure storage and use.

  • Page 16: System Block Diagram

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Figure 1-1. Intel C602 Chipset: System Block Diagram Note: This is a general block diagram and may not exactly repre- sent the features on your motherboard. See the previous pages for the actual specifi cations of your motherboard. This block diagram is intended for your reference only.

  • Page 17: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 18: Twin 2 : System Notes

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual 2U Twin : System Notes As a 2U Twin confi guration, the SuperServer 6027TR-HTRF+/H70RF+/H71RF+ is a unique server system. With four system boards incorporated into a single chassis acting as four separate nodes, there are several points you should keep in mind. Nodes Each of the four serverboards act as a separate node in the system.

  • Page 19: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation Overview This chapter provides a quick setup checklist to get your SuperServer 6027TR-HTRF+/H70RF+/H71RF+ up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time.

  • Page 20: Warnings And Precautions

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Warnings and Precautions Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi...

  • Page 21: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 22: Installing The System Into A Rack

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Installing the System into a Rack This section provides information on installing the SC827 chassis into a rack unit with the quick-release rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 23: Installing The Inner Rail Extension

    Chapter 2: Server Installation Installing the Inner Rail Extension The SC827 chassis includes a set of inner rails in two sections: inner rails and inner rail extensions. The inner rails are pre-attached to the chassis, and do not interfere with normal use of the chassis if you decide not to use a server rack. The inner rail extension is attached to the inner rail to mount the chassis in the rack.

  • Page 24: Outer Rack Rails

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Outer Rack Rails Outer rails attach to the rack and hold the chassis in place. The outer rails for the SC827 chassis extend between 30 inches and 33 inches. Installing the Outer Rails to the Rack (Figure 2-3) 1.
  • Page 25 Chapter 2: Server Installation Installing the Chassis into a Rack (Figure 2-4) 1. Extend the outer rails as illustrated above. 2. Align the inner rails of the chassis with the outer rails on the rack. 3. Slide the inner rails into the outer rails, keeping the pressure even on both sides.

  • Page 26: Checking The Serverboard Setup

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Checking the Serverboard Setup After you install the SuperServer 6027TR-HTRF+/H70RF+/H71RF+ in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. Accessing the inside of the System Before operating the server for the fi...

  • Page 27: Checking The Drive Bay Setup

    Chapter 2: Server Installation Checking the Components and Setup 1. You may have one or two processors already installed into the serverboard. Each processor needs its own heat sink. See Chapter 5 for instructions on processor and heat sink installation. 2.
  • Page 28 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Notes 2-10...

  • Page 29: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel and on the drive carriers to keep you constantly informed of the overall status of the system. SC827 models include four front panels on the handles of the chassis which control each of the systems. This chapter explains the meanings of all LED indicators and the appropriate response you may need to take.

  • Page 30: Control Panel Button

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Control Panel Button • Power: The main power button on each of the four control panels is used to apply or remove power from the power supply to each of the four systems in the chassis. Turning off system power with this button removes the main power, but keeps standby power supplied to the system.

  • Page 31: Drive Carrier Leds

    Chapter 3: System Interface Drive Carrier LEDs The server chassis uses SAS/SATA drives. SAS/SATA Drives Each SAS/SATA drive carrier has two LEDs. • Blue: Each Serial ATA drive carrier has a green LED. When illuminated, this green LED (on the front of the SAS/SATA drive carrier) indicates drive activity. A connection to the SAS/SATA backplane enables this LED to blink on and off when that particular drive is being accessed.
  • Page 32 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Notes...

  • Page 33: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certifi ed technicians should attempt to install or confi gure components. Read this appendix in its entirety before installing or confi guring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Defi nition Warning! This warning symbol means danger.
  • Page 34 UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 35 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 36: Installation Instructions

    UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 37: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电 流不大于250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電 流不大於250V,20A。...

  • Page 38: Power Disconnection Warning

    UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A. Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.
  • Page 39 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 40: Equipment Installation

    UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi ziertem Personal gestattet werden. ¡Advertencia! Solamente el personal califi...

  • Page 41: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 42: Battery Handling

    UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬ ‫ﻓﻘﻂ‬...
  • Page 43 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 44: Redundant Power Supplies

    UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 45: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken. Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is...

  • Page 46: Comply With Local And National Electrical Codes

    UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬ ‫ﻋﻨﺪﻣﺎ ﻳﻜﻮﻥ‬ Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.

  • Page 47: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...

  • Page 48: Hot Swap Fan Warning

    UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 49 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 50: Power Cable And Ac Adapter

    fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 警告...
  • Page 51 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 52 UPER ERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Notes 4-20...

  • Page 53: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install the X9DRT-HF+ motherboard into the chassis, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 54: Connecting Cables

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfi gured systems to prevent them from blocking the fl ow of cooling air that moves through the system from front to back.

  • Page 55: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. Refer to the Supermicro website for updates on CPU support. Installing the LGA2011 Processor 1. There are two load levers on the LGA2011 socket. To open the socket cover, fi...
  • Page 56 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on Load the Pull lever away Lever labeled 'Close 1st' from the socket 3.
  • Page 57 Chapter 5: Advanced Motherboard Setup 5. Use your thumb and index fi nger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6. Once they are aligned, carefully lower the CPU straight down into the socket. (Do not drop the CPU on the socket.
  • Page 58 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' fi...

  • Page 59: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Motherboard Setup Installing a Passive CPU Heatsink 1. Apply the proper amount of thermal grease to the heatsink. 2. Place the heatsink on top of the CPU so that the two mounting holes on the heatsink are aligned with those on the retention mechanism. 3.

  • Page 60: Removing The Passive Heatsink

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Removing the Passive Heatsink Caution: We do not recommend that the CPU or the heatsink be removed. However, if you do need to remove the heatsink, please follow the instructions below to uninstall the heatsink to avoid damaging the CPU or other components. 1.

  • Page 61: Installing Memory

    SDRAM. Populating four slots at a time with memory modules of the same size and type will result in interleaved (128-bit) memory, which is faster than non-interleaved (64-bit) memory. Note: Check the Supermicro website (www.supermicro.com) for the latest memory support information. Maximum Memory The X9DRT-HF+ serverboard supports up to 512 GB of ECC RDIMM memory in sixteen (16) DIMM slots.
  • Page 62 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Figure 5-2. Installing DIMM into Slot To Install: Insert Notch Notch module vertically and press down until it snaps into place. Front View Pay attention to the alignment notch at the bottom. Note: Notch should align with To Remove: Use the receptive key point on the slot.

  • Page 63: Dimm Module Population Confi Guration

    1333 1333 1333 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Intel E5-2600 Series Processor RDIMM Memory Support Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per...
  • Page 64 SMC Recommended Memory List posted on our website at http:// www.supermicro.com/support/resources/mem.cfm. Note 1: For the memory modules to work properly, please install DIMM modules of the same type, same speed and same operating frequency on the motherboard. Mixing of RDIMMs, UDIMMs or LRDIMMs is not allowed. Do not install both ECC and Non-ECC memory modules on the same motherboard.

  • Page 65: Motherboard Details

    Chapter 5: Advanced Motherboard Setup Motherboard Details Figure 5-3. X9DRT-HF+ Motherboard Layout (not drawn to scale) USB0 USB1 LAN1 IPMI_LAN LAN2 Battery FAN4 FAN3 JPME1 COM1 JPME2 LAN CTRL JBT1 Intel PCH CPU1 X9DRT-HF+ Rev. 1.02 CPU2 CPU2 5-13...
  • Page 66 1. For the latest CPU/Memory updates, please refer to our website at http:// www.supermicro.com/products/motherboard/ for details. 2. Use only the correct type of onboard CMOS battery as specifi ed by the manufacturer. Do not install the onboard battery upside down to avoid possible explosion.
  • Page 67 Chapter 5: Advanced Motherboard Setup Connector Description JBAT1 Onboard battery (see warning in chapter 4) I-SATA 0/1 Intel PCH SATA Connectors 0/1 SMC Proprietary Slot for Power, FP Control & I-SATA Connections JIPMB1 4-pin External BMC I C Header (for an IPMI Card) JPTM1 TPM (Trusted Platform Module)/Port 80 LAN1/2...

  • Page 68: Connector Defi Nitions

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Connector Defi nitions Ethernet LAN Ports LAN Ports (LAN1/2) Pin Defi nition Two Gigabit Ethernet ports (LAN1/2) Pin# Defi nition Pin# Defi nition are located on the I/O backplane on P2V5SB SGND the motherboard. In addition, an IPMI TD0+ Act LED Dedicated LAN is located above USB...
  • Page 69 Chapter 5: Advanced Motherboard Setup Unit Identifi er Switches UID Switch Two Unit Identifi er (UID) Switches and Pin# Defi nition two LED Indicators are located on the Ground motherboard. The Front Panel UID Ground Switch is located at Pin 16 on JF2. The Button In Rear UID Switch is located at SW1 next Ground...
  • Page 70 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual TPM Header/Port 80 TPM/Port 80 Header (JTPM1) Pin Defi nitions A Trusted Platform Module/Port 80 Pin# Defi nition Pin# Defi nition header is located at JTPM1 to provide LCLK TPM support and Port 80 connection. LFRAME# <(KEY)>...

  • Page 71: Jumper Settings

    Chapter 5: Advanced Motherboard Setup Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the motherboard, Jumper jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function Setting of the connector.
  • Page 72 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Watch Dog Enable/Disable Watch Dog (JWD1) Jumper Settings Watch Dog (JWD1) is a system monitor Jumper Setting Defi nition that can reboot the system when a Pins 1-2 Reset (default) software application hangs. Close Pins Pins 2-3 1-2 to reset the system if an application Open Disabled...

  • Page 73: 5-10 Onboard Indicators

    Chapter 5: Advanced Motherboard Setup 5-10 Onboard Indicators GLAN LEDs LAN LED (Connection Speed Indicator) The Gigabit LAN ports are located on LED Color Defi nition the IO Backplane on the motherboard. 10 MHz On each Gb LAN port, one LED blinks Green 100 MHz to indicate activity while the other may be...
  • Page 74 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual HDD/SATA LED (LE3) HDD/SATA LED (LE3) Status An HDD/SATA LED Indicator is located Status Defi nition at LE3 on the motherboard. This LED HDD/SATA Connected indicates the status of hard drive No connection activities or SATA activities supported by the South Bridge.

  • Page 75: 5-11 Pci-Express And Serial Ata Connections

    Chapter 5: Advanced Motherboard Setup 5-11 PCI-Express and Serial ATA Connections PCI-Express 3.0 x8 Micro LP Card Slot One PCI-E 3.0 x8 Slot for SMC-Proprietary Micro LP Card (CPU1 Slot2) is located on the motherboard. Refer to the layout on page 5-14 for the location. PCI-Express 3.0 x8 Daughter Card Slot One PCI-E 3.0 x8 Slot for SMC-Proprietary Daughter (Add-On) Card (CPU1 Slot1) supports a SMC-proprietary daughter card.

  • Page 76: 5-12 Installing Drivers

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual 5-12 Installing Drivers The CD that came bundled with the system contains drivers, some of which must be installed, such as the chipset driver. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-4 should appear. (If this display does not appear, click on the My Computer icon and then on the icon representing your CD-ROM drive.

  • Page 77: Supero Doctor Iii

    Chapter 5: Advanced Motherboard Setup Supero Doctor III The SuperDoctor® III program is a Web base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program included on the CD-ROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 78 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Figure 5-6. Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/ software/SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperoDoctor II application instead.

  • Page 79: 5-13 Onboard Battery

    Chapter 5: Advanced Motherboard Setup 5-13 Onboard Battery Caution: There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 5-7). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).
  • Page 80 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Notes 5-28...

  • Page 81: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC827HQ-R1620B chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 82: Control Panel

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Figure 6-1. Front and Rear Chassis Views Control Panel Control Panel Control Panel SAS/SATA Drives (12) Control Panel Ethernet Ports VGA Port USB Ports Control Panel The control panel is located on the front of the chassis. The LEDs inform you of system status.

  • Page 83: Chassis Cover

    Chapter 6: Advanced Chassis Setup Chassis Cover Before operating the SC827 chassis for the fi rst time, it is important to remove the protective fi lm covering the top of the chassis, in order to allow for proper ventilation and cooling. Removing the Chassis Cover and Protective Film (Figure 6-2) 1.

  • Page 84: Air Shrouds

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Air Shrouds Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC827 chassis air shroud does not require screws to set up. The SC827 chassis requires four identical air shrouds, one in each motherboard drawer. Air shrouds vary depending upon the motherboard used.

  • Page 85: Checking The Airfl Ow

    Chapter 6: Advanced Chassis Setup Checking the Airfl ow Checking Airfl ow 1. Make sure there are no objects to obstruct airfl ow in and out of the server. In addition, if you are using a front bezel, make sure the bezel's fi lter is replaced periodically.
  • Page 86 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Changing a System Fan 1. If necessary, open the chassis while the power is running to determine which fan has failed. (Never run the server for an extended period of time with the chassis cover open.) 2.
  • Page 87 Chapter 6: Advanced Chassis Setup Figure 6-5. Replacing a System Fan in the Fan Housing...

  • Page 88: Removing And Installing The Backplane

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Removing and Installing the Backplane The SC827 chassis backplane is located behind the hard drives and in front of the front system fans. In order to change jumper settings on the backplane, it may be necessary to remove the backplane from the chassis. Removing the Backplane Removing the Backplane from the Chassis 1.
  • Page 89 Chapter 6: Advanced Chassis Setup 7. Remove the side screw from the side of the chassis (Figure 6-7). Figure 6-7. Loosening the Spring Bar Screws in the Floor of the Chassis 8. Gently ease the backplane up and out of the chassis (Figure 6-8). Figure 6-8.

  • Page 90: Installing The Backplane

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Installing the Backplane Installing the Backplane into the Chassis (Figure 6-9) 1. Ensure that all of the hard drive trays have been removed from the bays in the front of the chassis and that the spring bar has been loosened as directed in the previous section.

  • Page 91: Installing The Motherboard

    Chapter 6: Advanced Chassis Setup Installing the Motherboard I/O Shield The I/O shield (Figure 6-10) holds the motherboard ports in place. The I/O shield does not require installation. Figure 6-10. I/O Shield Placement I/O Shields Permanent and Optional Standoffs Standoffs prevent short circuits by securing space between the motherboard and the chassis surface.
  • Page 92 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Figure 6-11. Removing the Node Drawer from the Chassis 3. Remove the add-on card brackets (see Figure 6-12): a. Remove screw securing the add-on card bracket to the back of the drawer. b. Lift the bracket out of the drawer. c.
  • Page 93 Chapter 6: Advanced Chassis Setup Figure 6-12. Installing the Motherboard in the Motherboard Node Drawer 6-13...

  • Page 94: Adapter Card/Micro-Lp Card Replacement

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Adapter Card/Micro-LP Card Replacement Each motherboard drawer comes equipped with a adapter card which plugs into the backplane. In the unlikely event that the adapter card needs to be replaced, installation requires only a Phillips head screwdriver. Figure 6-13.

  • Page 95: Micro-Lp Card/Micro-Lp Slot Setup

    Chapter 6: Advanced Chassis Setup Micro-LP Card/Micro-LP Slot Setup The SC827 chassis includes expansion slots for Micro-LP cards. Each serverboard node supports one low profi le/half length Micro-LP card for a total of four per chassis, one per drawer. Note: the Micro-LP cards should already be installed in the motherboad drawers of the chassis and do not need replacement unless the motherboard needs replacing.

  • Page 96: 6-10 Drive Bay Installation/Removal

    SAS/SATA Drives: You do not need to access the inside of the chassis or remove power to replace or swap SAS/SATA drives. Proceed to the next step for instructions. You must use standard 1" high, SAS/SATA drives in the system. Note: Refer to Supermicro's web site for setup guidelines: <http://www.supermicro. com/support/manuals/>.
  • Page 97 Chapter 6: Advanced Chassis Setup Removing Hard Drive Trays from the Chassis 1. Press the release button on the drive tray. This extends the drive bay handle. 2. Use the handle to pull the drive out of the chassis (see Figure 6-15). Figure 6-15.
  • Page 98 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual The drives are mounted in drive carriers to simplify their installation and removal from the chassis (see Figure 6-16). These carriers also help promote proper airfl ow for the drive bays. Figure 6-16. Chassis Drive Tray Dummy Drive Drive Tray Installing a Drive into the Hard Drive Tray...
  • Page 99 Figure 6-18. Installing the Hard Drive SAS/SATA Hard Drive Drive Tray Caution! Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/files/ storage/SAS-CompList.pdf 6-19...

  • Page 100: 6-11 Power Supply

    Replacement units can be ordered directly from Supermicro (See the contact information in the Preface of this manual). Power Supply Replacement The SC827 chassis utilizes two redundant power supplies.
  • Page 101 Chapter 6: Advanced Chassis Setup Figure 6-19. Changing the Power Supply Release Tab 6-21...
  • Page 102 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Notes 6-22...

  • Page 103: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.) The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

  • Page 104: Starting The Setup Utility

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.

  • Page 105: Advanced Settings Menu

    Chapter 7: BIOS Supermicro X9DRT-HF+ Version This item displays the SMC version of the BIOS ROM used in this system. Build Date This item displays the date that the BIOS Setup utility was built. Memory Information Total Memory This displays the amount of memory that is available in the system.
  • Page 106 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual AddOn ROM Display Mode This item sets the display mode for the Option ROM. Select Keep Current to use the current AddOn ROM Display setting. Select Force BIOS to use the Option ROM display mode set by the system BIOS. The options are Force BIOS and Keep Current.
  • Page 107 Chapter 7: BIOS CPU Confi guration This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to confi guration CPU settings. Socket 1 CPU Information/Socket 2 CPU Information This submenu displays the following information regarding the CPU installed in Socket 1 and (or) Socket 2 as detected by the BIOS.
  • Page 108 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Active Processor Cores Set to Enabled to use a processor's second core and above. (Please refer to Intel's website for more information.) The options are All, 1, 2, 4, and 6. Limit CPUID Maximum Use this feature to set the maximum CPU ID value. Select Enabled to boot a legacy operating system that cannot support processors with extended CPUID functions.
  • Page 109 Chapter 7: BIOS Intel® Virtualization Technology (Available when supported by the CPU) Select Enabled to support Intel Virtualization Technology, which will allow one platform to run multiple operating systems and applications in independent partitions, creating multiple "virtual" systems in one physical computer. The options are Enabled and Disabled.
  • Page 110 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual CPU C7 Report (Available when Power Technology is set to Custom) Select Enabled to allow the BIOS to report the CPU C7 State (ACPI C3) to the operating system. CPU C7 State is a processor-specifi c low C-State. The options are Enabled and Disabled.

  • Page 111: North Bridge

    Chapter 7: BIOS Chipset Confi guration North Bridge This feature allows the user to confi gure the following North Bridge settings. Integrated IO Confi guration Intel VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Working Memory) through the DMAR ACPI Tables.
  • Page 112 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual IIO 2 PCIe Port Bifurcation Control This submenu confi gures the following IO PCIe Port Bifurcation Control settings for IIO 2 PCIe ports to determine how the available PCI-Express lanes to be distributed between the PCI-Exp. Root Ports. QPI Confi...
  • Page 113 Chapter 7: BIOS Sparing This item displays if memory sparing is supported by the motherboard. Memory sparing enhances system performance. DIMM Information The status of the memory modules detected by the BIOS is displayed. Memory Mode When Independent is selected, all DIMMs are available to the operating system.
  • Page 114 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Patrol Scrub Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source). When this item is set to Enabled, the IO hub will read and write back one cache line every 16K cycles, if there is no delay caused by internal processing.
  • Page 115 Chapter 7: BIOS South Bridge Confi guration This feature allows the user to confi gure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information. Name: This item displays the name of the PCH chip. Stepping: This item displays the status of the PCH stepping.
  • Page 116 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual SATA Confi guration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port5: The AMI BIOS displays the status of each SATA port as detected by the BIOS.
  • Page 117 Chapter 7: BIOS RAID Mode The following items are displayed when RAID Mode is selected: Port 0~5 Hot Plug Select Enabled to enable hot-plug support for the particular port. The options are Enabled and Disabled. SCU Confi guration This menu is used to confi gure SCU (Storage Controller Unit) confi guration menu options.
  • Page 118 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual PERR# Generation Select Enabled to allow a PCI device to generate a PERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event.
  • Page 119 Chapter 7: BIOS Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unifi ed Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled. IPv4 PXE Support (Available when Network Stack is set to Enabled) Set this item to Enabled to activate IPv4 PXE Support.

  • Page 120: Serial Port Console Redirection

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Device Mode Use this feature to select the desired mode for a serial port specifi ed. The options are Normal and High Speed. SOL Confi guration Serial Port Select Enabled to enable a serial port specifi ed by the user. The options are Enabled and Disabled.

  • Page 121: Console Redirection Settings

    Chapter 7: BIOS Console Redirection Select Enabled to use the SOL Port for Console Redirection. The options are Enabled and Disabled. Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Terminal Type This feature allows the user to select the target terminal emulation type for Console Redirection.
  • Page 122 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Flow Control This feature allows the user to set the fl ow control for Console Redirection to prevent data loss caused by buffer overfl ow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty.
  • Page 123 Chapter 7: BIOS Console Redirection Settings (for EMS) This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Out-of-Band Management Port The feature selects a serial port used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote server.

  • Page 124: Acpi Settings

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual ACPI Settings Use this feature to confi gure Advanced Confi guration and Power Interface (ACPI) power management settings for your system. ACPI Sleep State Use this feature to select the ACPI State when the system is in sleep mode. Select S1 (CPU Stop Clock) to erase all CPU caches and stop executing instructions.
  • Page 125 Chapter 7: BIOS Pending Operation Use this item to schedule an operation for the security device. The options are None, Enable Take Ownership, Disable Take Ownership, and TPM Clear. Note: During restart, the computer will reboot in order to execute the pending operation and change the state of the security device.
  • Page 126 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual TPM Support: Trusted Platform support TPM State: Trusted Platform state ME Subsystem This feature displays the following ME Subsystem Confi guration settings. • ME BIOS Interface Version • ME Version iSCSI Confi guration This item displays iSCSI confi guration information: iSCSI Initiator Name This item displays the name of the iSCSI Initiator, which is a unique name used in the world.
  • Page 127 Chapter 7: BIOS Wake on LAN Select enabled to wake the system with a magic packet. The options are Enabled and Disabled. Blink LEDs This feature allows the user to specify the duration for LEDs to blink. The range is from 0 ~ 15 seconds.

  • Page 128: Event Logs

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Event Logs Select the Event Logs tab to access the following submenu items. Change SMBIOS Event Log Settings This feature allows the user to confi gure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 129 Chapter 7: BIOS Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot. The options are No, Yes, Next reset, and Yes, Every reset. When Log is Full Select Erase Immediately to immediately erase SMBIOS error event logs that exceed the limit when the SMBIOS event log is full.

  • Page 130: Ipmi

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the following submenu items. IPMI Firmware Revision, IPMI Status These items indicates your system IPMI fi rmware revision number and status. System Event Log SEL Components Select Enabled for all system event logging at bootup.
  • Page 131 Chapter 7: BIOS Custom EFI Logging Options Log EFI Status Codes Select Enabled to log EFI (Extensible Firmware Interface) Status Codes, Error Codes or Progress Codes. The options are Enabled and Disabled. Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

  • Page 132: Boot

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Boot This submenu allows the user to confi gure the following boot settings for the system. Boot Option Priorities Boot Option #1/ Boot Option #2/ Boot Option #3, etc. Use this feature to specify the sequence of boot device priority. Network Devices, USB Device BBS Priorities, Hard Disk Drives The above options appear when detected by the BIOS.

  • Page 133: Security

    Chapter 7: BIOS Security This menu allows the user to confi gure the following security settings for the system. Password Check Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the password when entering setup and on each boot.

  • Page 134: Save & Exit

    SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Save & Exit This submenu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi...
  • Page 135 Chapter 7: BIOS Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previous values, select Yes to load the values previous saved, or select No to keep the changes you've made so far.
  • Page 136 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Notes 7-34...

  • Page 137: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 138 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Notes...

  • Page 139: Appendix B System Specifi Cations

    512 MB, 1 GB, 2 GB, 4 GB, 8 GB, 16 GB or 32 GB size sizes of 1.5V or 1.35V voltages. Note: refer to Section 5-6 for details on installation. Note: Check the Supermicro website (www.supermicro.com) for the latest memory support information. SAS/SATA Drive Bays...
  • Page 140 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual Chassis SC827HQ-R1620B (2U rackmount) Dimensions: (WxHxD) 17.25 x 3.47 x 28.5 in. (438 x 88 x 724 mm) Weight Gross (Bare Bone): 85 lbs. (38.6 kg.) System Cooling The system has four (4) 8-cm PWM system cooling fans System Input Requirements AC Input Voltage: 85-264V AC auto-range Rated Input Current: 15 - 5A...
  • Page 141 Appendix B: System Specifi cations Notes...
  • Page 142 SUPERSERVER 6027TR-HTRF+/H70RF+/H71RF+ User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
