Rimage DL5200 User Manual

Hide thumbs Also See for DL5200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Setup & Installation
Rimage DL5200/DLN5200
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL5200 and is the answer not in the manual?

Questions and answers

Related Manuals for Rimage DL5200

Summary of Contents for Rimage DL5200

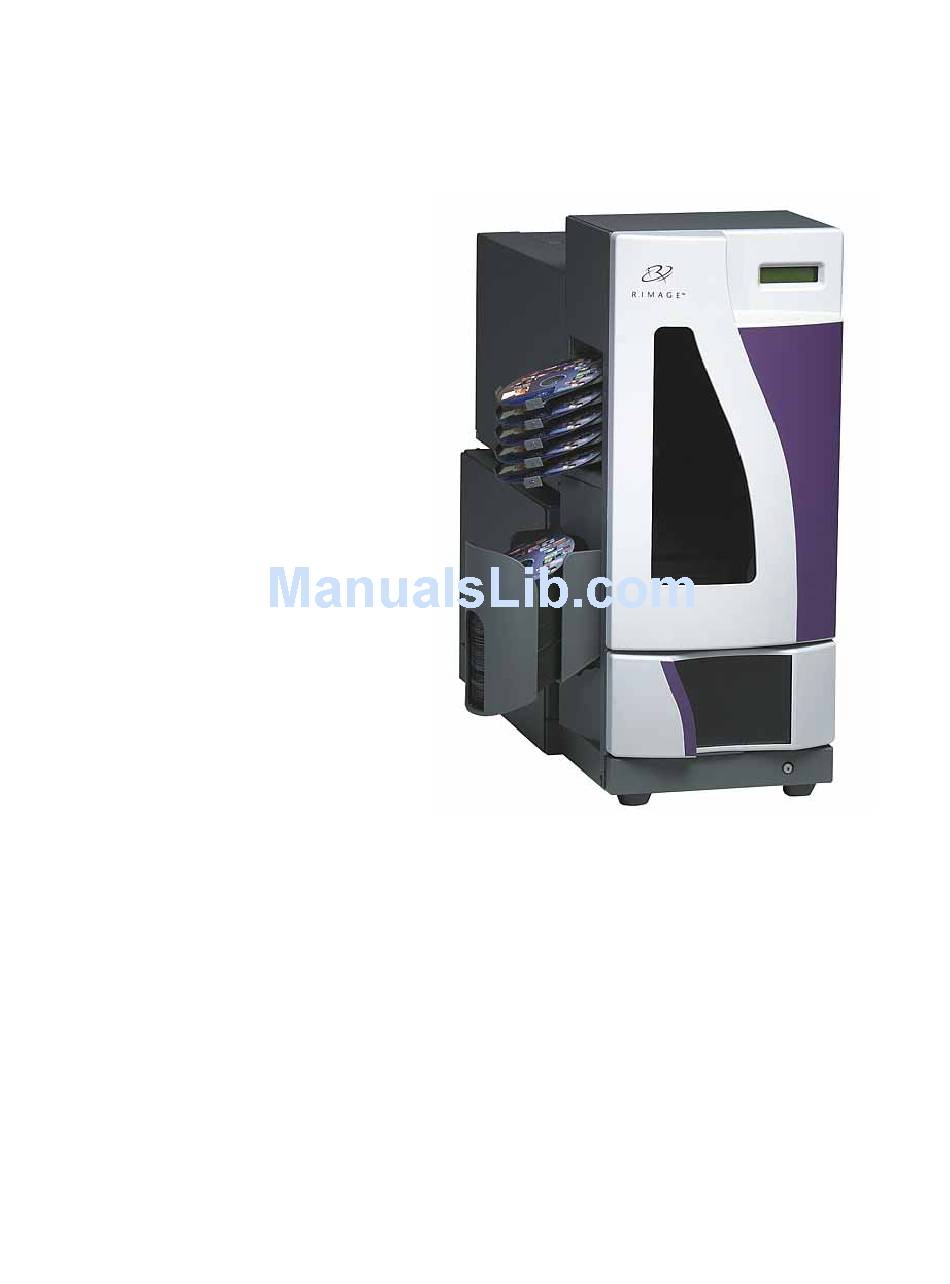

  • Page 1 Rimage DL5200/DLN5200 User Guide...
  • Page 2 Rimage Corporation described in this document at any time without any 7725 Washington Avenue South prior notice. Rimage Corporation reserves the right to Minneapolis, MN 55439 revise this publication and to make changes from time to time in the content hereof without obligation of...

  • Page 3: Support Information

    • Unit serial number and software version. • Functional and technical description of the problem. • Exact error message received. Learn more online At www.rimage.com/support.html, you can experience Rimage’s world-class Support and Services. 1. Select your product family. 2. Select your product.

  • Page 4: Table Of Contents

    Media requirements....................1 Ribbon requirements ..................... 1 Label design requirements ..................2 Networking ability ....................2 Identify the parts of the Rimage DLN5200/DL5200......3 Front view ......................3 Rear view - Rimage DLN5200 .................4 Rear view - Rimage DL5200................4 Description of Parts ..................5 Operator panel ......................
  • Page 5 Rimage DL5200/DLN5200 User Guide Starting Gemini Utilities ..................15 Changing the autoloader display name............... 15 Enabling the beeper .................... 15 Stopping Gemini Utilities ..................15 Learn More ..................17 Rimage DLN5200/DL5200 specifications ............17 Technical support and product updates............18 Safety information..................18 Safety testing....................19...

  • Page 6: Introduction

    Introduction This manual provides the information needed to operate the DLN5200/DL5200 and identify the parts. To set up and install your DLN5200/DL5200, refer to the Setup and Installation Guide included with your product. The Rimage DLN5200 and DL5200 are robotic-controlled autoloaders containing two recorders, a two-line display panel, and an Everest™...

  • Page 7: Label Design Requirements

    Rimage DL5200/DLN5200 User Guide Label design requirements For label design requirements, refer to the Everest Printer User Guide. Networking ability To submit orders from a networked PC, refer to the Rimage Advanced Setup Guide (110721). 110768_E...

  • Page 8: Identify The Parts Of The Rimage Dln5200/Dl5200

    Identify the parts of the Rimage DLN5200/DL5200 Identify the parts of the Rimage DLN5200/DL5200 This section describes the Rimage DLN5200/DL5200 hardware and its features. Front view Operator Button Printer Operator Panel Printer Lift Arm Output Trays Recorders PC Power Output Bin...

  • Page 9: Rear View - Rimage Dln5200

    (if using) Connection Keyboard Cable (if using) USB cable Power Switch Power Cord Monitor Cable (if using) Rear view - Rimage DL5200 Printer Cable Printer USB Cable Printer Power Cord Printer Cable USB Cable FireWire Cable Power Switch Power Cord Note: The 9-Pin serial connector is not used.

  • Page 10: Description Of Parts

    Beeper The Rimage DLN5200/DL5200 has a beeper that sounds when user intervention is required. Read the condition on the operator panel or at the client application and take appropriate action to correct the problem. To stop the beeping, open the supply door.

  • Page 11: Output Trays

    Rimage DL5200/DLN5200 User Guide Output trays The Rimage DLN5200/DL5200 is configured with five output trays and an output bin. When a disc is recorded and printed, the lift arm moves the disc to the output bin or one of the Output output trays.

  • Page 12: Operate The Rimage Dln5200/Dl5200

    Operate the Rimage DLN5200/DL5200 Operate the Rimage DLN5200/DL5200 Powering on Before you begin: Set up the Everest printer. For more information, refer to the Rimage Everest Printer™ setup guide. Powering on the Rimage DLN5200 PC Power 1. Ensure the PC power switch is in the on Switch position.

  • Page 13: Powering Off

    1. Close all applications. 2. Press the main power switch to power off the Rimage DL5200. Note: When you start the Rimage DL5200 again, you must first power on the DL5200 and then power on the attached computer so the recorders are recognized.

  • Page 14: Removing Or Installing The Front Panel

    Operate the Rimage DLN5200/DL5200 Input Bin 3. Place the discs in the input bin with the recording side facing down. Important! Hold the discs by the edge. Fingerprints affect print quality. 4. Place the input bin on the base plate.

  • Page 16: Maintain The Dln5200/Dl5200

    Maintain the DLN5200/DL5200 Maintain the DLN5200/DL5200 The procedures in this section will help keep your DLN5200/DL5200 in optimum operating condition. Preventive maintenance schedule Maintenance Procedure Schedule Cleaning the Rimage Once a week. Using a damp, lint free cloth, remove dust from DLN5200/DL5200 the autoloader and surrounding work area.
  • Page 17 Rimage DL5200/DLN5200 User Guide c. Manually rotate the lead screw counterclockwise to move the lift arm down to the print pad. Print Pad Lead Screw 3. Check the disc alignment. To see if the disc is centered, observe the gap between the edge of the disc and the raised edges as shown by the arrows.
  • Page 18 Maintain the DLN5200/DL5200 5. If necessary, perform a front to back Disc Retainer alignment. a. Turn the front to back alignment screw until there is a 1/16” (1.5mm) gap between the front edge of the disc and the raised edge of the disc retainer.

  • Page 20: Operating Gemini Utilities

    Maintain the DLN5200/DL5200 Operating Gemini Utilities The Rimage Producer Software Suite includes an application called Gemini Utilities, which is used to update the autoloader firmware. It may also be used to change the display name of the Rimage DLN5200/DL5200 and to enable the beeper. The Rimage DLN5200 displays the computer name on the operator panel.

  • Page 22: Learn More

    Microsoft Windows® 2000 Professional Service Pack 4, Microsoft Windows XP Professional Service Pack 1or 2, Windows Server 2003 Rimage recommends 4 hard drives – One for the OS, one for the Rimage System Folder, and two for caching (one for each recorder).

  • Page 23: Technical Support And Product Updates

    Technical support and product updates Support for the DLN5200/DL5200 autoloader is available through your authorized reseller. Important: Be sure to register your Rimage DLN5200/DL5200 autoloader online or complete and return the registration card so we can notify you of upgrades as they become available.

  • Page 24: Safety Testing

    Learn More Safety testing Product name: Rimage DLN5200/DL5200 Model: • DLN5200: RAS15E • DL5200: RAS15 Notice for USA Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
