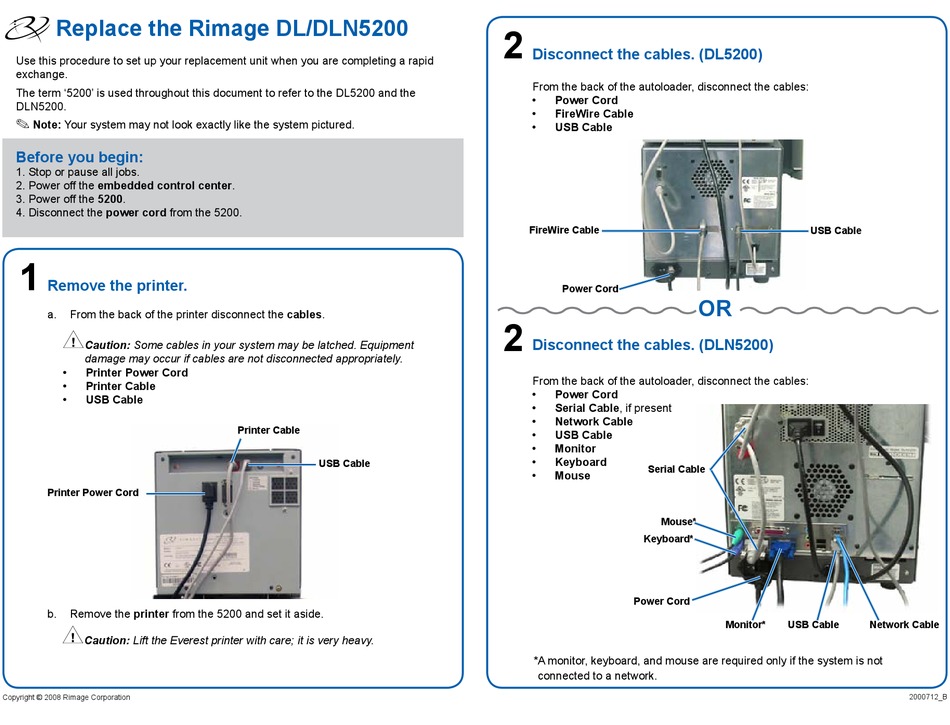

Replace the Rimage DL/DLN5200
Use this procedure to set up your replacement unit when you are completing a rapid
exchange.
The term '5200' is used throughout this document to refer to the DL5200 and the
DLN5200.
✎
Note: Your system may not look exactly like the system pictured.

Before you begin:

1. Stop or pause all jobs.
2. Power off the embedded control center.
3. Power off the 5200.
4. Disconnect the power cord from the 5200.
1
Remove the printer.
a.
From the back of the printer disconnect the cables.
Caution: Some cables in your system may be latched. Equipment
damage may occur if cables are not disconnected appropriately.
•
Printer Power Cord
•
Printer Cable
•
USB Cable
Printer Power Cord
b.
Remove the printer from the 5200 and set it aside.
Caution: Lift the Everest printer with care; it is very heavy.
Copyright © 2008 Rimage Corporation
Printer Cable
USB Cable
2
Disconnect the cables. (DL5200)
From the back of the autoloader, disconnect the cables:
•
Power Cord
•
FireWire Cable
•
USB Cable
FireWire Cable
Power Cord
2
Disconnect the cables. (DLN5200)
From the back of the autoloader, disconnect the cables:
•
Power Cord
•
Serial Cable
, if present
•
Network Cable
•
USB Cable
•
Monitor
•
Keyboard
Serial Cable
•
Mouse
Mouse*
Keyboard*
Power Cord
*A monitor, keyboard, and mouse are required only if the system is not
connected to a network.
USB Cable
OR
Monitor*
USB Cable
Network Cable
2000712_B
