Output trays

The Rimage DLN5200/DL5200 is configured
with five output trays and an output bin. When
a disc is recorded and printed, the lift arm
moves the disc to the output bin or one of the
output trays. The disc slides out to the end of
the tray. The sensor located on each output
tray detects if a disc is in the output tray. The
output trays are numbered 1 - 5, with 1
located at the top.

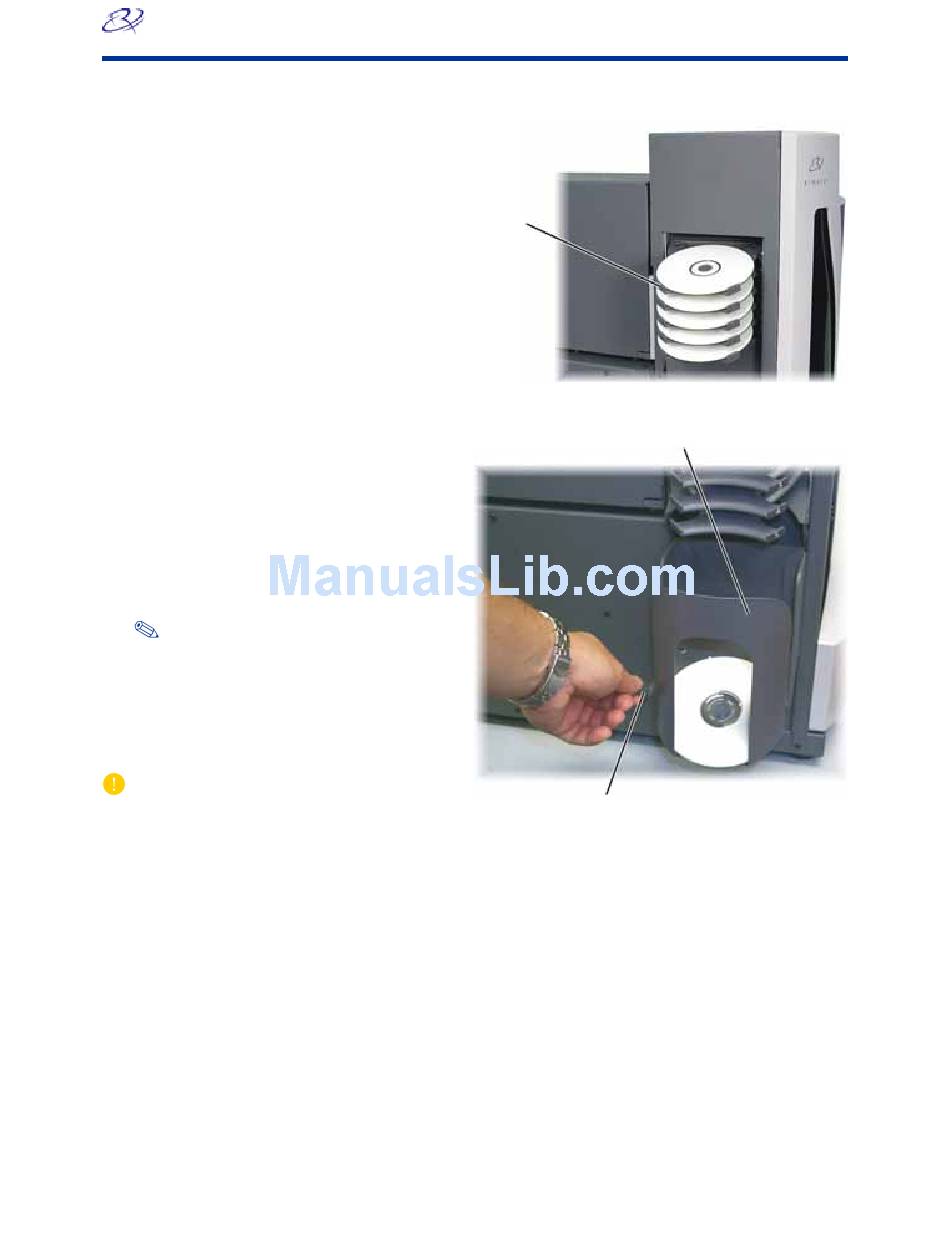

Output bin

The output bin receives completed and/or
failed discs. The output bin holds up to 75
discs.
1. To remove discs from the output bin,
hold the output bin with one hand while
moving the bin latch up and then lower
the bin.
Note: Each time you fill the input bin,
remove the completed discs from the
output bin so the output bin does not
become full.
2. To raise the output bin into position, lift
the output bin and then pull the bin latch
down to lock it in place.
Caution: Do not use the latch to raise
the output bin!
6
Output
Trays
Output Bin
Bin Latch
110768_E
