2. INTERFACES

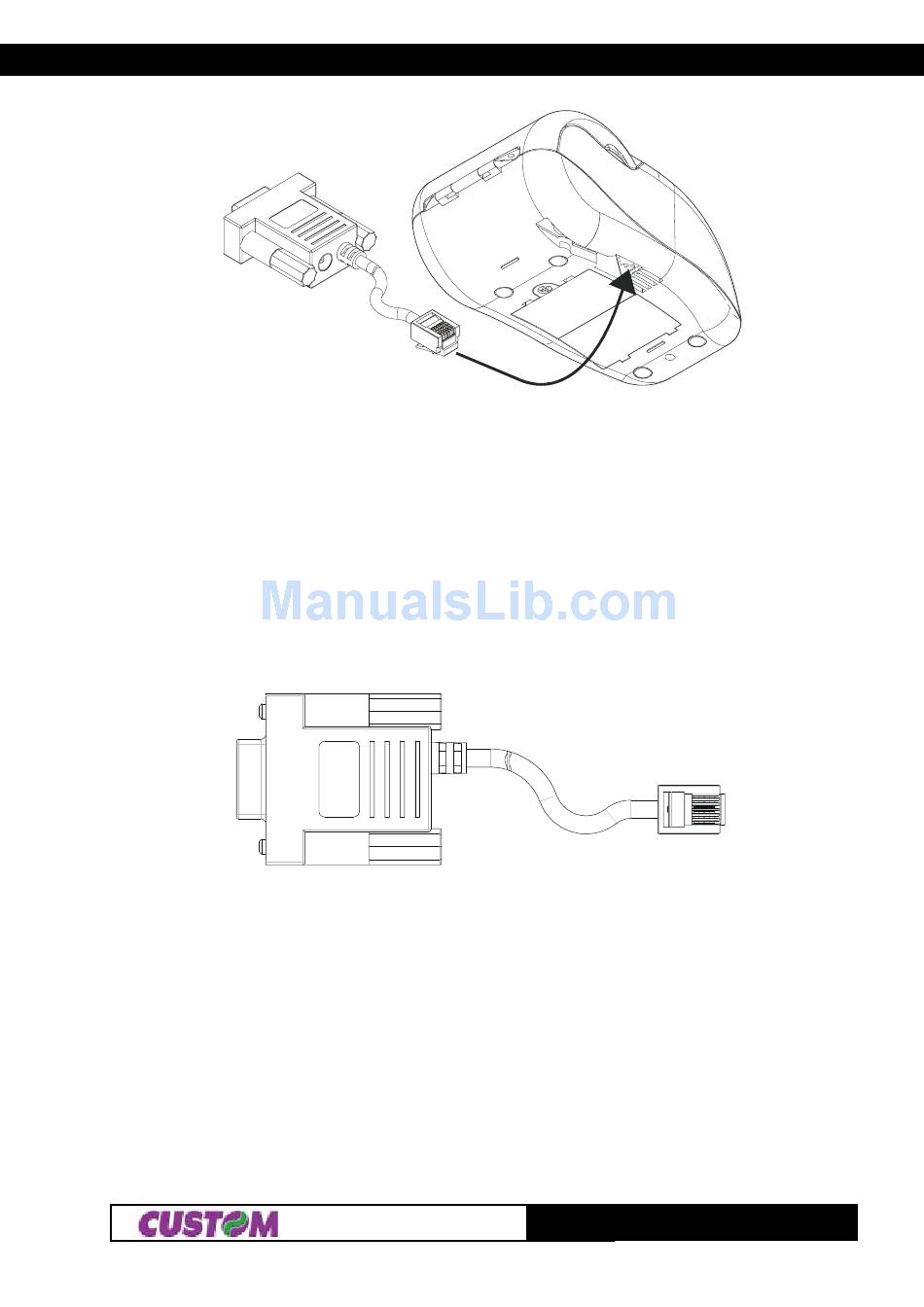

(Fig.2.1)

2.1 RS232 SERIAL

The printer is equipped with an RS232 serial interface with RJ11 connector (fig. 2.1) located underneath the
printer. For serial connection, a connecting cable (fig. 2.2) with double connection system is packed with the
printer. On one side is a 9-pin female connector (fig. 2.1.1) to connect to the serial port; on the other side of the
same connector is a RJ11 connector (fig. 2.1.2).
For the layout of signals on the connectors, please refer to tables 2.1 and 2.2.
(Fig.2.1.1)
(Fig.2.1.2)
2- 1 DPT100-B/I/BT
