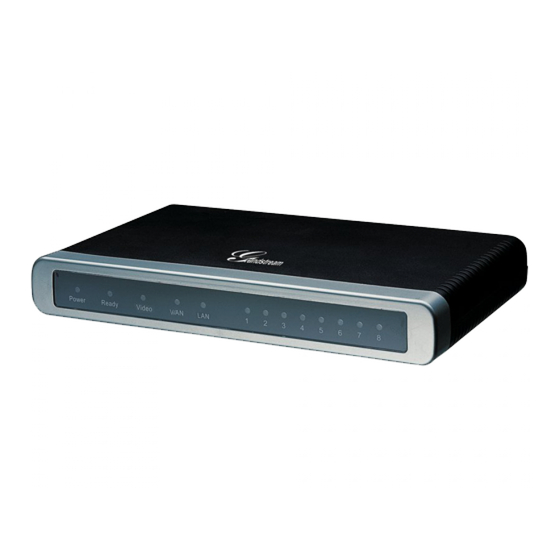

Grandstream Networks GXW-410x User Manual
Analog ip 4 or 8 fxo ports w/video surveillance
Hide thumbs
Also See for GXW-410x:
- User manual (37 pages) ,
- Setup manual (13 pages) ,
- Quick installation manual (9 pages)
Related Manuals for Grandstream Networks GXW-410x
Summary of Contents for Grandstream Networks GXW-410x
- Page 1 Grandstream Networks, Inc. Analog IP Gateway GXW-410x 4 or 8 FXO Ports w/Video Surveillance GXW-410x User’s Manual www.grandstream.com Firmware Version 1.0.0.32 support@grandstream.com...
-
Page 2: Table Of Contents
6. SOFTWARE UPGRADE ........................26 6.1 Upgrade through HTTP ........................26 6.2 Upgrade through TFTP........................27 7. RESTORE FACTORY DEFAULT SETTING ..................28 8. EXAMPLES OF GXW-410X CONFIGURATIONS................. 29 9. GLOSSARY OF TERMS........................31 Grandstream Networks, Inc. GXW-410x User’s Manual Page 2 of 34 Firmware 1.0.0.32... - Page 3 Figure 1: Functional Diagram of IP-PBX (Asterisk) & GXW-410x ............... 6 Figure 2: Hardware Specification of GXW-410x ..................8 Figure 3: Screen-shot of GXW-410x Log-in Screen – End User Configuration........... 9 Figure 4: Screen-shot of GXW-410x Configuration Page................10 Figure 5: Web Log-in Definitions........................ 11 Figure 6: Screen-shot of GXW-410x Device Status Page .................
-
Page 4: Welcome
1.0 Welcome Thank you for purchasing the Grandstream GXW-410x Analog FXO IP Gateway. You’ve made an excellent choice and we believe you will find the GXW-410x easy to use and easy to manage. Gateway GXW-410x Overview The GXW-410x offers an easy to manage, easy to configure IP communications solution for any business with virtual and/or branch locations. -
Page 5: Packaging & Installation
3.0 Application Description A SIP proxy server such as Asterisk or a SIP registrar server can be deployed with the GXW-410x series. In this environment, the SIP server handles SIP registration and call control and the GXW-410x processes media conversion between IP and PSTN calls. By design, the system supports the North American call progress tones and signaling standards on PSTN sides. -
Page 6: Figure 1: Functional Diagram Of Ip-Pbx (Asterisk) & Gxw-410X
Figure 1: Functional Diagram of IP-PBX (Asterisk) & GXW-410x Anywhere in the world IPPBX or SIP Server FXO Lines 4 or 8 Ports IP/LAN IP/WAN GXW-410x Grandstream IP Phones PSTN Analog Lines Grandstream Networks, Inc. GXW-410x User’s Manual Page 6 of 34... - Page 7 VOIP to PSTN. This requires configuring both SIP server and GXW-410x to one stage dialing (see last section of quick guide and user manual for one stage dialing). For one stage PSTN to VOIP calls, user needs to configure off-hook auto dial field (see last...
-
Page 8: Features
4 or 8 FXO ports respectively. The GXW-410x is the only small business gateway that offers a video surveillance component in the industry. A complete list of features can be found at www.grandstream.com. -
Page 9: Configuration Guide
IP address is: 192.168.001.014, please type in: 192.168.1.14. 5.1.2 End User Configuration Once this HTTP request is entered and sent from a Web browser, the GXW-410x will respond with the following login screen: Figure 3: Screen-shot of GXW-410x Log-in Screen – End User Configuration... -
Page 10: Figure 4: Screen-Shot Of Gxw-410X Configuration Page
Figure 4: Screen-shot of GXW-410x Configuration Page Grandstream Device Configuration Advanced Status Basic Settings FXO Lines Channels Profile 1 Profile 2 Profile 3 Settings Web Access: HTTP HTTPS Web Port: (default for HTTP is 80 and HTTPS is 443) End User... -
Page 11: Figure 5: Web Log-In Definitions
DHCP server it discovers from the LAN it is connected. To use the PPPoE feature the PPPoE account settings need to be set. The GXW-410x will attempt to establish a PPPoE session if any of the PPPoE fields is set. -
Page 12: Figure 6: Screen-Shot Of Gxw-410X Device Status Page
This field indicates whether the device is registered to the SIP server(s). PPPoE Link This field shows whether the PPPoE connection is up if connected to DSL modem. This field shows what kind NAT the GXW-410x is connected to via its LAN port. It is Detected NAT Type based on STUN protocol. -
Page 13: Advanced User Settings
Grandstream Device Configuration Password Login All Rights Reserved Grandstream Networks, Inc. 2005-2006 Advanced User configuration includes not only the end user configuration, but also advanced configuration such as SIP configuration, Codec selection, NAT Traversal Setting and other miscellaneous configuration. Grandstream Networks, Inc. -
Page 14: Figure 8: Screenshot Of Advanced Configuration Page
Yes, upgrade every minutes (default 7 days) Syslog Server: NONE Syslog Level: time.nist.gov NTP Server: (URI or IP address) Update Cancel Reboot All Rights Reserved Grandstream Networks, Inc. 2005-2006 Grandstream Networks, Inc. GXW-410x User’s Manual Page 14 of 34 Firmware 1.0.0.32... -
Page 15: Figure 9: Advanced Configuration Page Definitions
Here “:6688” is the specific TCP port that the HTTP server is listening at, it can be omitted if using default port 80. Note: If Auto Upgrade is set to No, GXW-410x will only do HTTP download once at boot up. - Page 16 Automatic Choose Yes to enable automatic upgrade and provisioning. In “Check for new firmware every” field, enter the number of days to enable GXW-410x to check the server for Upgrade firmware upgrade or configuration in the defined period of days. When set to No, GXW- 410x will only do upgrade once at boot up.
-
Page 17: Figure 10: Screen-Shot Of Gxw-410X Fxo Lines Configuration Page
Figure 10: Screen-shot of GXW-410x FXO Lines Configuration Page Grandstream Device Configuration Basic Advanced Status FXO Lines Channels Profile 1 Profile 2 Profile 3 Settings Settings FXO Termination Enable Current Disconnect: (Default Yes) 600 Ohm (North America) AC Termination Impedance: ch1-8:60;... -
Page 18: Figure 11: Fxo Lines Configuration Definitions
This parameter allows users to configure a User ID or extension number to Dial be automatically dialed upon off-hook. Please note only the user part of the SIP address needs to be entered here. The GXW-410x will automatically append the ‘@’ and host portion of the corresponding SIP address. Grandstream Networks, Inc. -
Page 19: Figure 12: Screen- Shot Of Gxw-410X Channels Page
Figure 12: Screen- shot of GXW-410x Channels Page Grandstream Device Configuration Basic Advanced Status FXO Lines Channels Profile 1 Profile 2 Profile 3 Settings Settings Phone Number Settings Channel(s) SIP User ID Authenticate ID Auth Password Profile ID Profile 1... -
Page 20: Figure 13: Channels Page Definitions
Authentication ID SIP service subscriber’s Authenticate ID used for authentication. Can be identical to or different from SIP User ID. Authentication SIP service subscriber’s account password for GXW-410x to register to Password (SIP) servers of ITSP. - Page 21 4 – SIP Info 5 – in-audio and RFC2833 6 – SIP Info and RFC2833 7 – in-audio, RFC2833, and SIP Info No Key Entry Default is 4 seconds. Timeout Grandstream Networks, Inc. GXW-410x User’s Manual Page 21 of 34 Firmware 1.0.0.32...
-
Page 22: Figure 14: Screen-Shot Of Grandstream Configuration Page
Figure 14: Screen-shot of Grandstream Configuration Page Grandstream Device Configuration Basic Advanced Status FXO Lines Channels Profile 1 Profile 2 Profile 3 Settings Settings Activate Profile: SIP Server - 1 Profile Name: (Optional, name of your profile) sip.server1.com SIP Server:... - Page 23 G.729A/B PCMU choice 4: choice 8: Special Feature: Standard Update Cancel Reboot All Rights Reserved Grandstream Networks, Inc. 2005-2006 Grandstream Networks, Inc. GXW-410x User’s Manual Page 23 of 34 Firmware 1.0.0.32...
-
Page 24: Figure 15: Grandstream Configuration Page Definitions
Default is No. If set to Yes the client will use DNS SRV to look up server. User ID is Phone If the GXW-410x has an assigned PSTN telephone number, this field should be set Number to “Yes”. Otherwise, set it to “No”. If “Yes” is set, a “user=phone” parameter will be attached to the “From”... - Page 25 Anonymous be set to anonymous, essentially blocking the Caller ID from displaying. Preferred The GXW-410x supports up to 5 different Vocoder types including G.711 A-/U-law, Vocoder GSM, G.723.1, G.729A/B. The user can configure Vocoders in a preference list that will be included with the same preference order in SDP message. The first Vocoder in this list can be entered by choosing the appropriate option in “Choice 1”.
-
Page 26: Saving The Configuration Changes
Once a change is made, press the “Update” button in the Configuration Menu. The GXW-410x will then display the following screen to confirm that the changes have been saved. User is recommended to reboot or power cycle the GXW-410x after all the changes are made so that those changes can take effect. -
Page 27: Upgrade Through Tftp
Unzip the file and put all of the files under the root directory of the TFTP server. Put the PC running the TFTP server and the GXW-410x in the same LAN segment. Please go to File -> Configure -> Security to change the TFTP server's default setting from "Receive Only"... -
Page 28: Restore Factory Default Setting
Restore the Factory Default Setting will DELETE all configuration information of the phone. Please BACKUP or PRINT out all the settings before you approach to following steps. Grandstream will not take any responsibility if you lose all the parameters of setting and cannot connect to your VoIP service provider. -
Page 29: Examples Of Gxw-410X Configurations
Scenario Two: a small business with traditional analog PBX lines and broadband access who want to extend their traditional PBX to virtually anywhere in the world, using the internet. (Any SIP End point, such as Grandstream BugeTone, HandyTone, GXP-2000 or GXV-3000 are needed in this scenario) Company A - Boston, MA... - Page 30 Grandstream IP Branch B – Denver, CO 4 employees Anywhere in the world Scenario Four: The GXW-410x offers an IP to IP pure IP Communications System configuration, where all locations use IP phones. Branch A - Boston, MA 6 employees...
-
Page 31: Glossary Of Terms
DID Direct Inward Dialing. The ability for an outside caller to dial to a PBX extension without going through an attendant or auto-attendant. DSP Digital Signal Processor. A specialized CPU used for digital signal processing. Grandstream products all have DSP chips built inside. - Page 32 Grandstream is the second-level domain, and and.com is the top level domain. FXO Foreign eXchange Office. An FXO device can be an analog phone, answering machine, fax, or anything that handles a call from the telephone company like AT&T. They should also operate the same way when connected to an FXS interface.
- Page 33 SIP Session Initiation Protocol, An IP telephony signaling protocol developed by the IETF (RFC3261). SIP is a text-based protocol suitable for integrated voice-data applications. SIP is designed for voice transmission and uses fewer resources and is considerably less complex than H.323. All Grandstream products are SIP based...
